ALTERNATOR
TNV IDI Service Manual
11-19
Dynamo

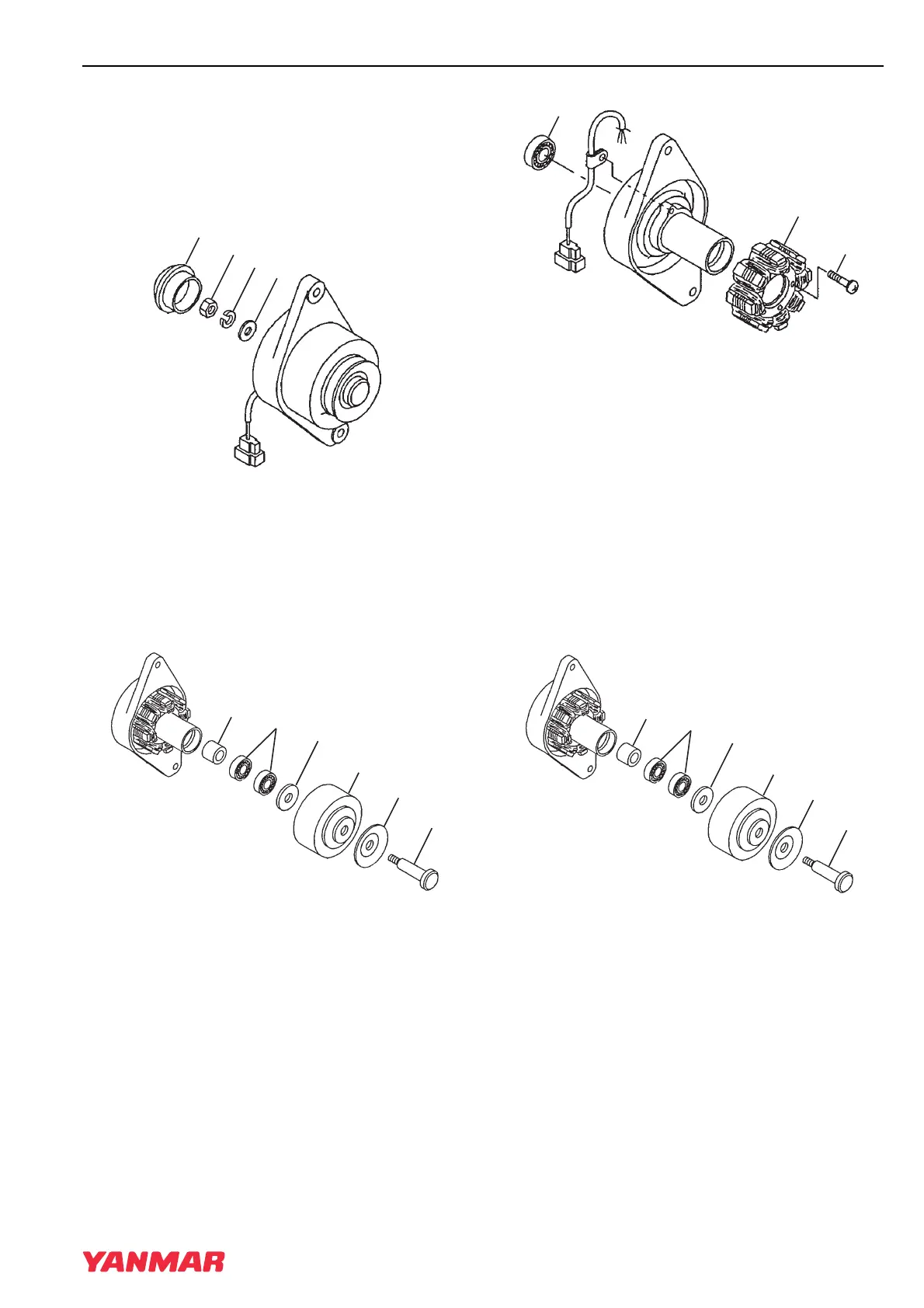

Disassembly of Dynamo
1. Remove the rear cover (Figure 11-24, (1)).
2. Remove the nut (Figure 11-23, (2)), lock
washer (Figure 11-24, (3)), and flat washer
(Figure 11-24, (4)).
Figure 11-24
3. Remove the through bolt (Figure 11-25, (1)),
pulley half (Figure 11-25, (2)), flywheel
(Figure 11-25, (3)), flat washer
(Figure 11-25, (4)), bearings
(Figure 11-25, (5)), and spacer
(Figure 11-25, (6)).
Figure 11-25
4. Remove the screws (Figure 11-26, (1)) and the
stator assembly (Figure 11-26, (2)).
5. Remove the rear bearing (Figure 11-26, (3)).
Figure 11-26
Reassembly of Dynamo
1. Reinstall the rear bearing (Figure 11-26, (3)).
2. Reinstall the stator (Figure 11-26, (1)).
3. Reinstall screws (Figure 11-26, (1)).
4. Reinstall the front bearings (Figure 11-27, (5))
and spacer (Figure 11-27, (6)).
5. Reinstall the flat washer (Figure 11-27, (4)),
flywheel (Figure 11-27, (3)), pulley half
(Figure 11-27, (2), and through bolt
(Figure 11-27, (1)).
Figure 11-27
(1)
(2)
(3)
(4)
0002143
(6)
(5)
(4)
(3)
(2)
(1)
0002144
(3)
(2)
(1)
0002145
(6)
(5)
(4)
(3)
(2)
(1)
0002144
