Yanmar 3JH3(8)E - Page 14

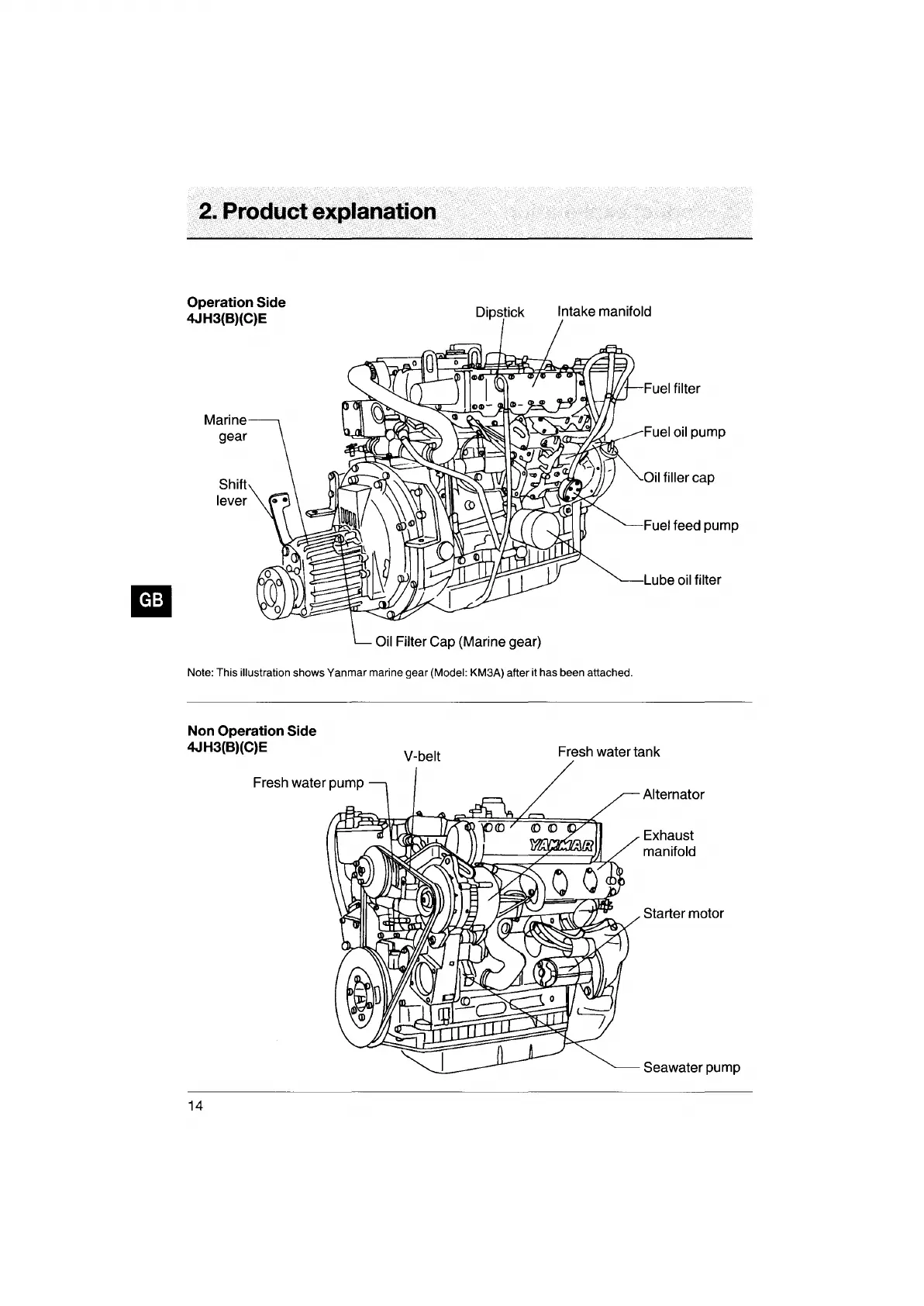

2. Product explanation
Operation Side
4JH3(8)(C)E
Marine
gear
Shift
lever
Oil Filter
Cap (Marine gear)
Intake manifold
Fuel filter
Fuel oil
pump
Oil filler cap
Fuel feed pump
Lube
oil filter
Note: This illustration shows Yanmar marine gear (Model: KM3A) after it has been attached.
Non Operation Side
4JH3(8)(C)E
Fresh water pump
14
V-belt
Fresh water tank
Alternator
Exhaust
manifold
Starter motor
Seawater pump
