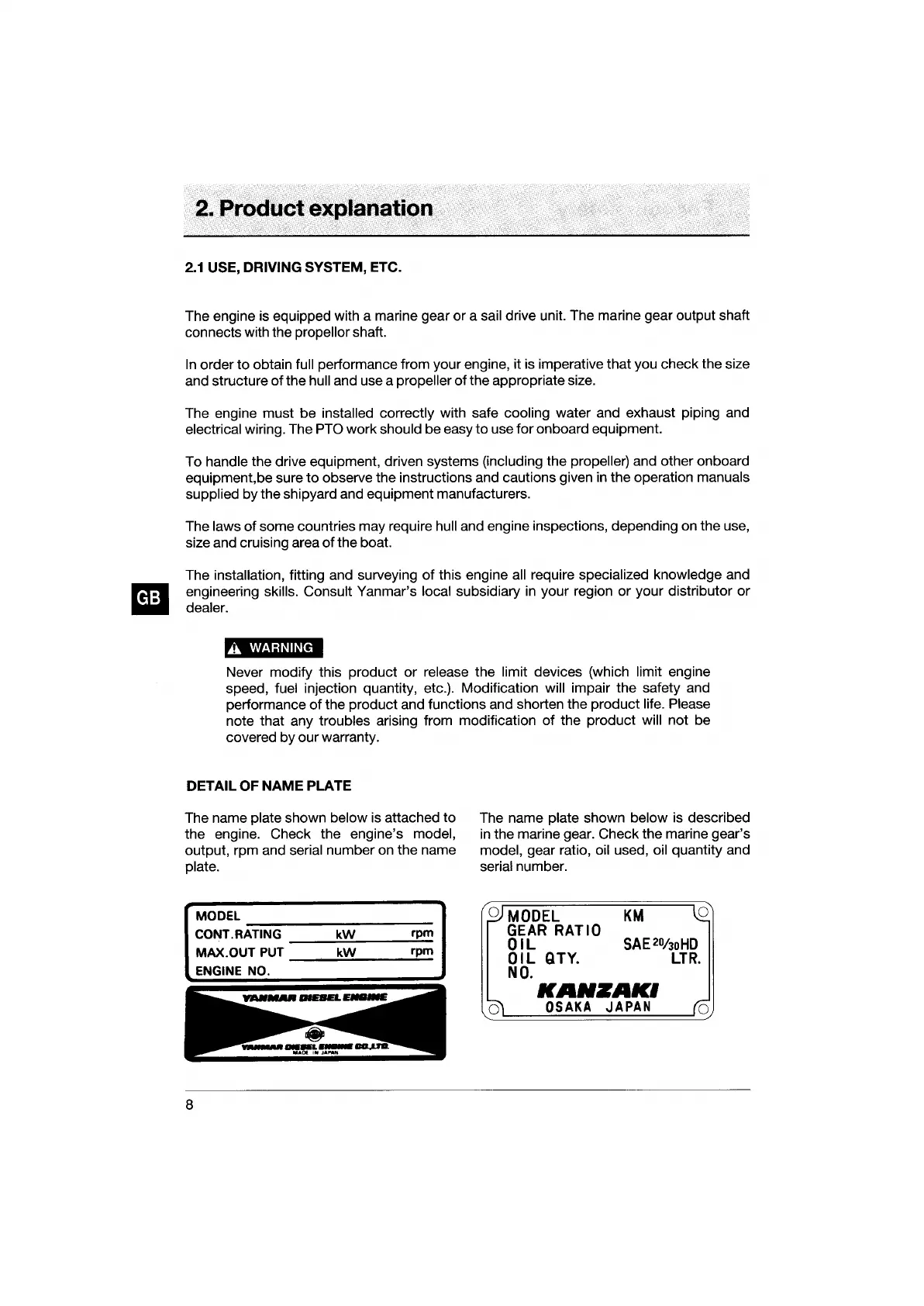

2. Product explanation
2.1
USE, DRIVING SYSTEM, ETC.
The engine is equipped with a marine gear or a sail drive unit. The marine gear output shaft
connects with the
propellor shaft.
In
order
to
obtain full performance from your engine, it is imperative that you check the size
and structure of the
hull and use a propeller of the appropriate size.
The engine must be
installed correctly with safe cooling water and exhaust piping and
electrical wiring. The
PTO
work should be easy
to
use for onboard equipment.
To
handle the drive equipment, driven systems (including the propeller) and other onboard
equipment, be sure
to
observe the instructions and cautions given in the operation manuals
supplied
by the shipyard and equipment manufacturers.
The
laws of some countries may require hull and engine inspections, depending on the use,
size and cruising area
of
the boat.
The
installation, fitting and surveying
of
this engine all require specialized knowledge and
engineering
skills. Consult Yanmar's local subsidiary
in
your region or your distributor or
dealer.
A
WARNING
Never modify this product or release the limit devices (which limit engine
speed,
fuel injection quantity, etc.). Modification will impair the safety and
performance
of
the product and functions and shorten the product life. Please
note that any troubles arising from modification of the product will not be
covered by our warranty.
DETAIL OF
NAME
PLATE
The name plate shown below is attached to
the engine. Check the engine's
model,
output, rpm and serial number on the name
plate.
MODEL
__________________
__
CONT. RATING
__
--=:k:.:..W=--
__
~r;.::;p.;.;.;m
MAX.OUT
PUT
__
......;.;k;.;.W~
___
r~p_m
8
The name plate shown below is described
in
the marine gear. Check the marine gear's
model, gear ratio, oil used, oil quantity and
serial number.
0
MODEL
KM
0
GEAR
RATIO
OIL
SAE
2o
IJoHD
OIL
QTY.
LTR.
NO.
1f6l1lZIIIC'
0
OSAKA
JAPAN
0
