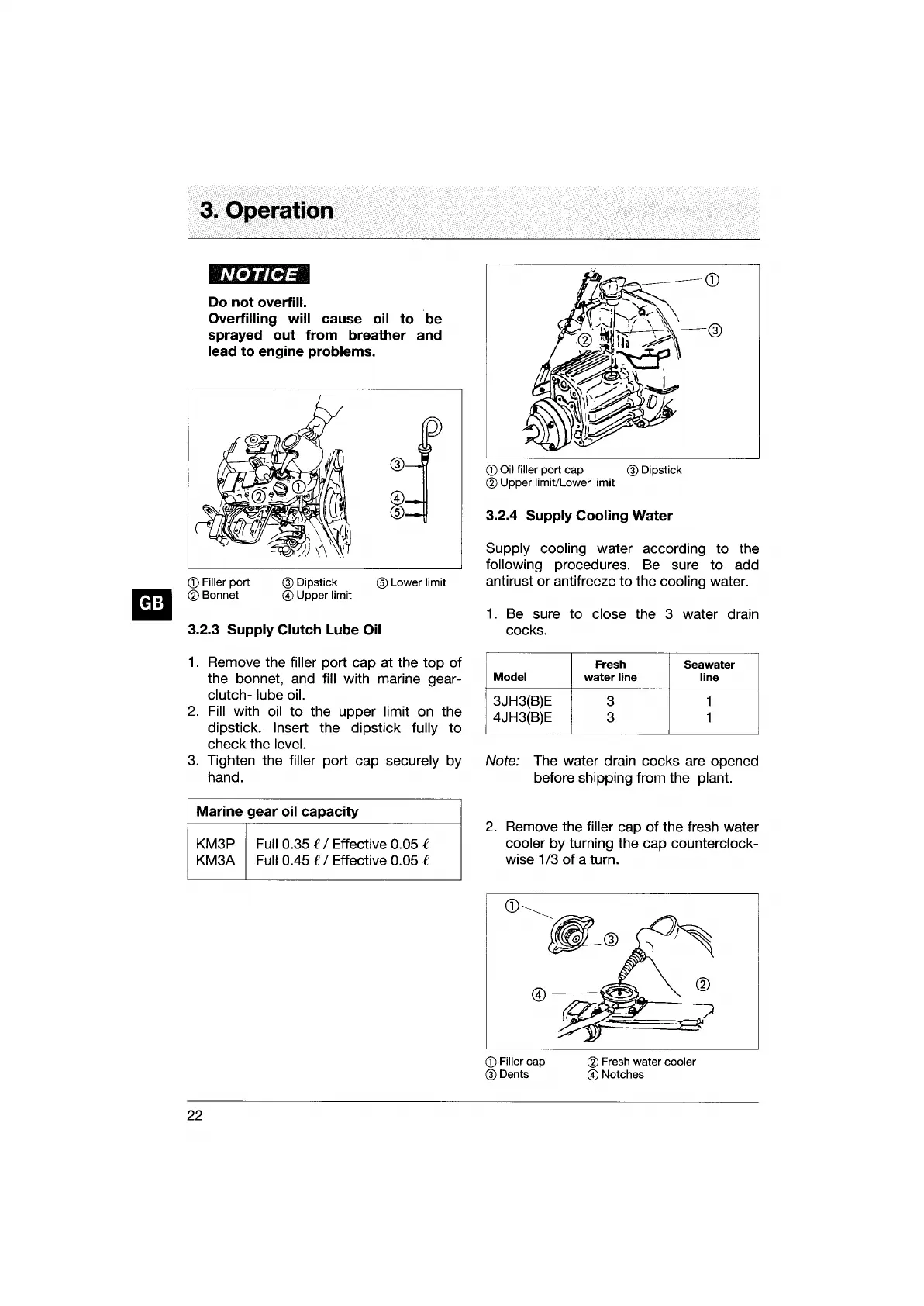

3. Operation
NOTICE
Do
not
overfill.
Overfilling
will
cause
oil
to
be
sprayed
out
from
breather
and
lead
to
engine
problems.
CD
Filler port
@Bonnet
@ Dipstick ® Lower limit
@
Upper limit
3.2.3
Supply
Clutch
Lube
Oil
1. Remove the filler port cap at the
top
of
the bonnet, and fill with marine gear-
clutch- lube oil.
2.
Fill with oil
to
the upper limit on the
dipstick.
Insert the dipstick fully
to
check the level.
3.
Tighten the filler port cap securely by
hand.
Marine
gear
oil
capacity
KM3P
KM3A
22
Full 0.35 e / Effective 0.05 e
Full 0.45 e / Effective 0.05 e
CD
Oil filler port cap
@Dipstick
@ Upper limit/Lower limit
3.2.4
Supply
Cooling
Water
Supply cooling water according to the
following procedures. Be sure
to
add
antirust or antifreeze
to
the cooling water.
1. Be sure to close the 3 water drain
cocks.
Fresh
Seawater
Model
water
line
line
3JH3(B)E
3 1
4JH3(B)E
3 1
Note: The water drain cocks are opened
before shipping from the
plant.
2.
Remove the filler cap
of
the fresh water
cooler by turning the cap counterclock-
wise 1/3
of
a turn.
CD
Filler cap
@Dents
@ Fresh water cooler
@Notches
To Next Page
