Yardistry YM12842 - Page 30

30 support@yardistrystructures.com
F3.7

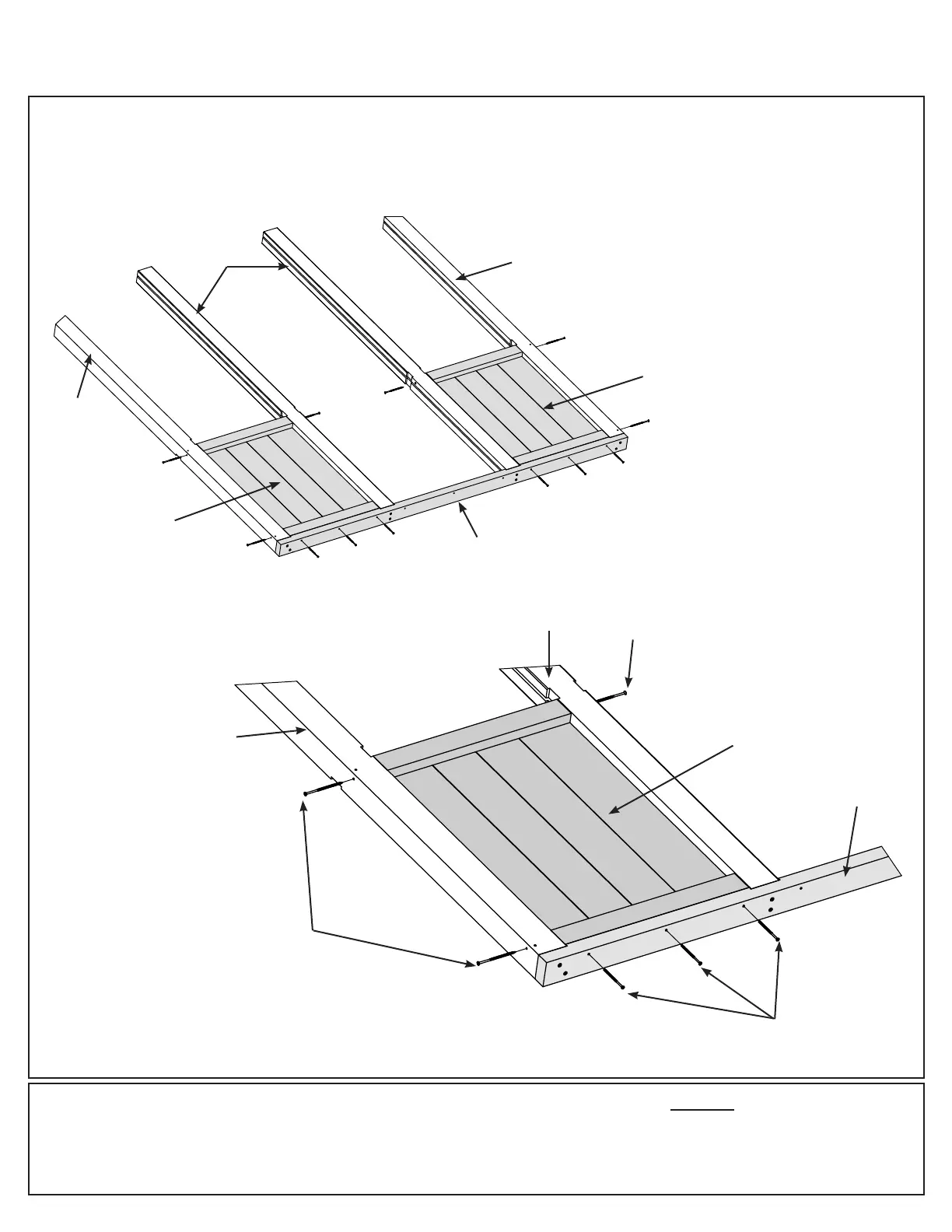

D: Attach (1108) Left Post, (1109) Right Post to each (1147) FB Panel with two #10 x 4” Wood Screws per post
and each (1113) Back Post to each (1147) FB Panel with one #10 x 4” Wood Screw per post. (F3.6 and F3.7)
E: Attach (1120) Back Base to (1147) FB Panels with three #8 x 3” Wood Screws per panel. (F3.6 and F3.7)
F3.6
Hardware
6 x #10 x 4” Wood Screw
6 x #8 x 3” Wood Screw
(1147)
FB Panel
(1113)
Back Post
(1120) Back Base
Post
#10 x 4”
Wood Screw
#8 x 3” Wood Screw
Step 3: Back Wall Assembly
Part 3
(1109)
Right Post
(1108)
Left Post
#10 x 4”
Wood Screw
(1147)
FB Panel
(1147)
FB Panel
(1113)
Back Post
(1120) Back
Base
