#8 X 1-1/4 Wood Screws
Connects SHORT SHELF to WOODEN GUSSETS
at each end, tight to BACK WALL
#8 X 1-1/4 Wood Screws
Connects SHORT SHELF to WOODEN GUSSETS
at each end, tight to BACK WALL

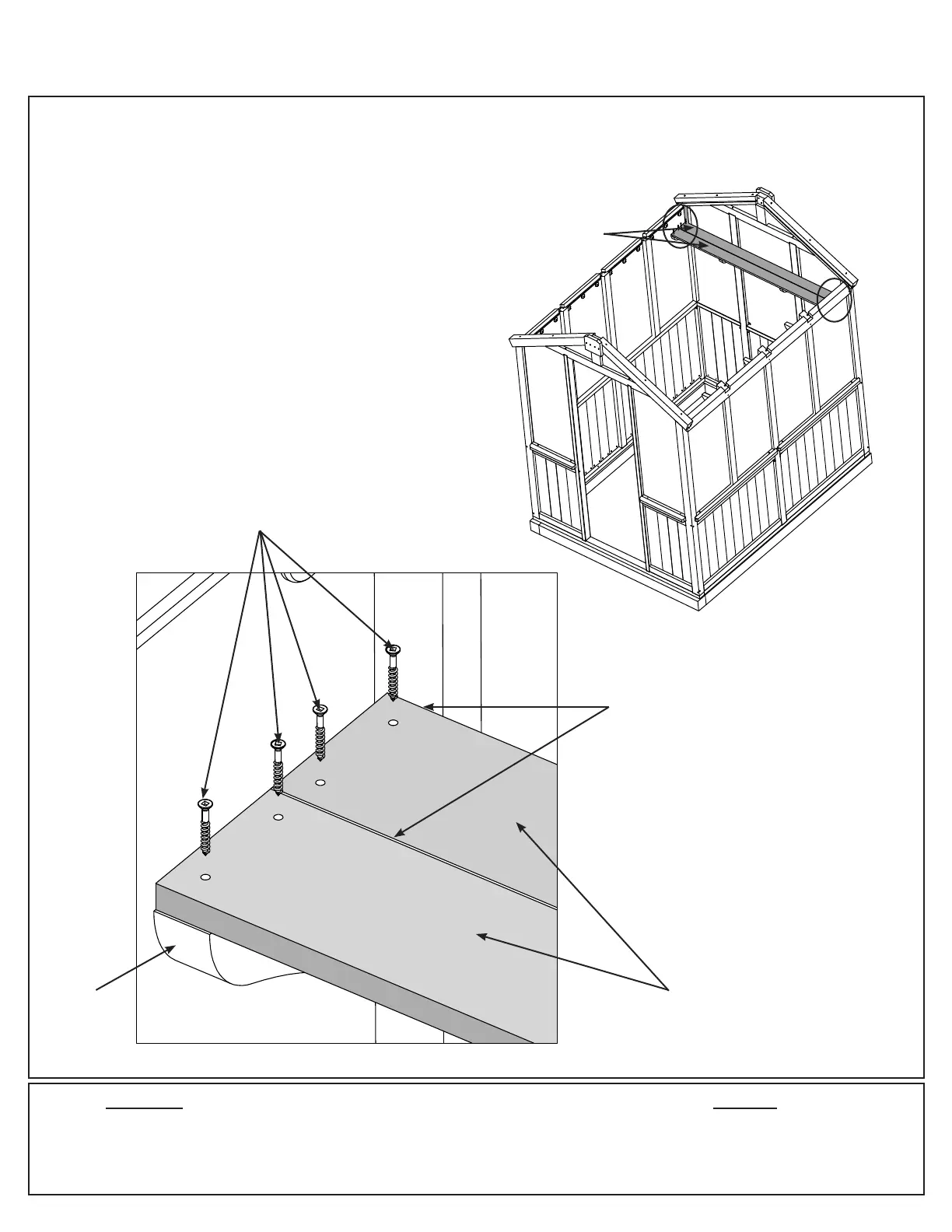

Step 19: Upper Shelf Assembly
Part 2
C: Tight to the Back Wall place two (1139) Short Upper Shelves on (1138) Wooden Gussets so they are tight to
each other. Attach with four #8 x 1-1/4” Wood Screws per shelf. (F19.5 and F19.6)
Hardware
8 x #8 x 1-1/4” Wood Screw
Wood Parts
2 x (1139) Short Upper Shelf
#8 x 1-1/4”
Wood Screw
Back Wall
(1139) Short
Upper Shelf
Tight
F19.5
F19.6
(1138)
Wooden
Gusset
(1139) Short
Upper Shelf
Roof removed
for clarity
To Next Page
