Step 19: Upper Shelf Assembly
Part 3

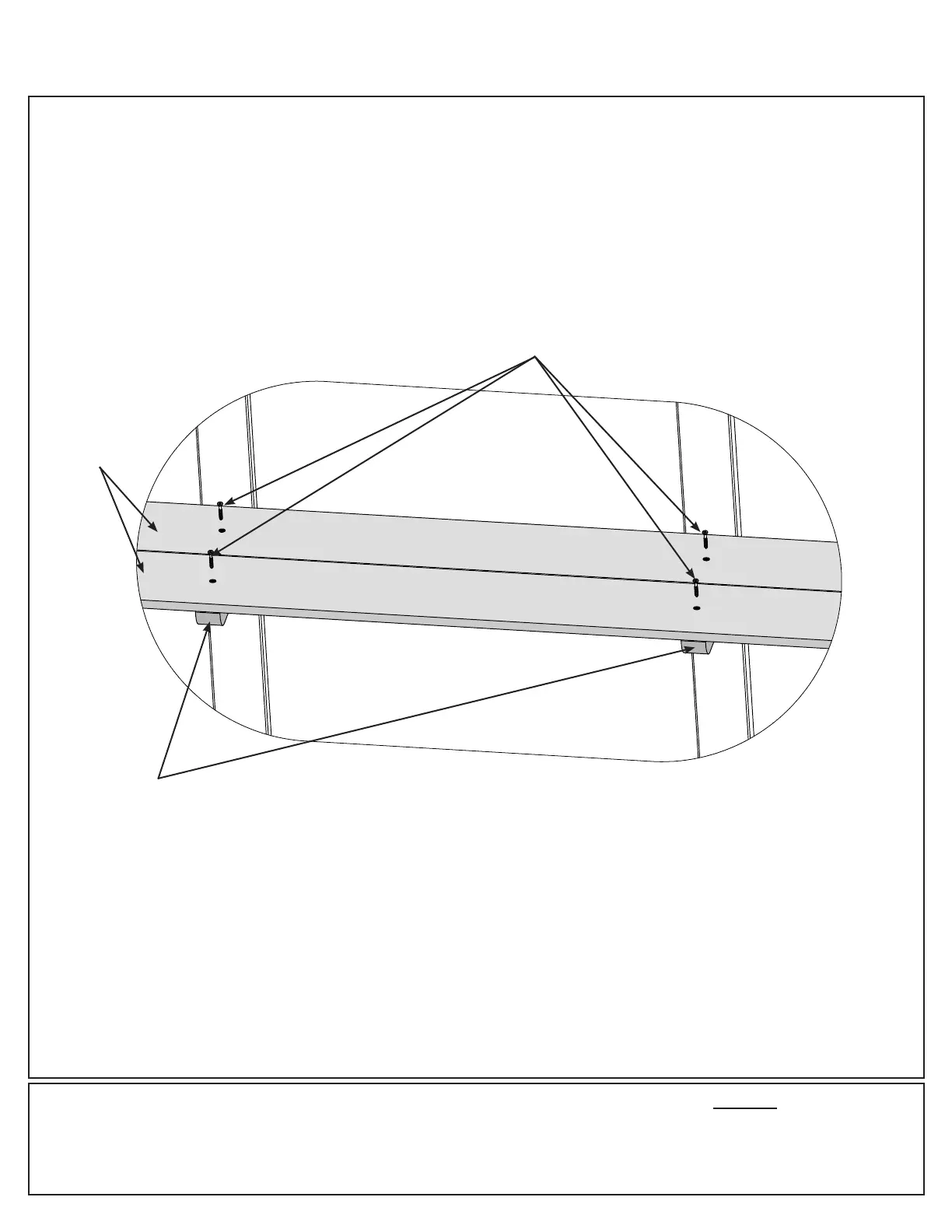

D: Over the two middle (1138) Wooden Gussets locate centre of each (1139) Short Upper Shelf then attach
(1139) Short Upper Shelves to (1138) Wooden Gussets with two #8 x 1-1/4” Wood Scews per shelf. (F19.7)
Locate the centre of each SHELF BOARD along the width,
where they meet each WOODEN
GUSSET then PRE DRILL and fasten.
#8 X 1-1/4 Wood Screws -PRE-DRILL prior to fastening
Hardware
4 x #8 x 1-1/4” Wood Screw
F19.7
#8 x 1-1/4”
Wood Screw
(1139) Short
Upper Shelf
(1138)
Wooden
Gusset
To Next Page
