Caution when transferring wires to the new drive
Note the following points due to the European terminal block in CR700.
Refer to the CR700 instruction manual for other wiring-related matters.
- The terminal block is not compatible with closed-loop crimp terminals. Remove crimp
terminals and prepare the wire ends.
Crimp terminals can be used to connect to the ground terminal.
- Expose the required length of bare wire by stripping back the shielding according to local
electrical code.
- Do not use a wire with bent or crushed conductor.
If a deformed wire is used for connection, cut off the bent end of the wire before using it.
- Do not use solder when connecting stranded wire.
- When using stranded wires, wire the lines so that there are no stray wires in the connection
section.
Do not excessively twist the stranded wire.
- Firmly insert the electric wire all the way into the European terminal block.
If the wire covering is removed to the recommended stripped wire length, the covering will fit
into the terminal block.

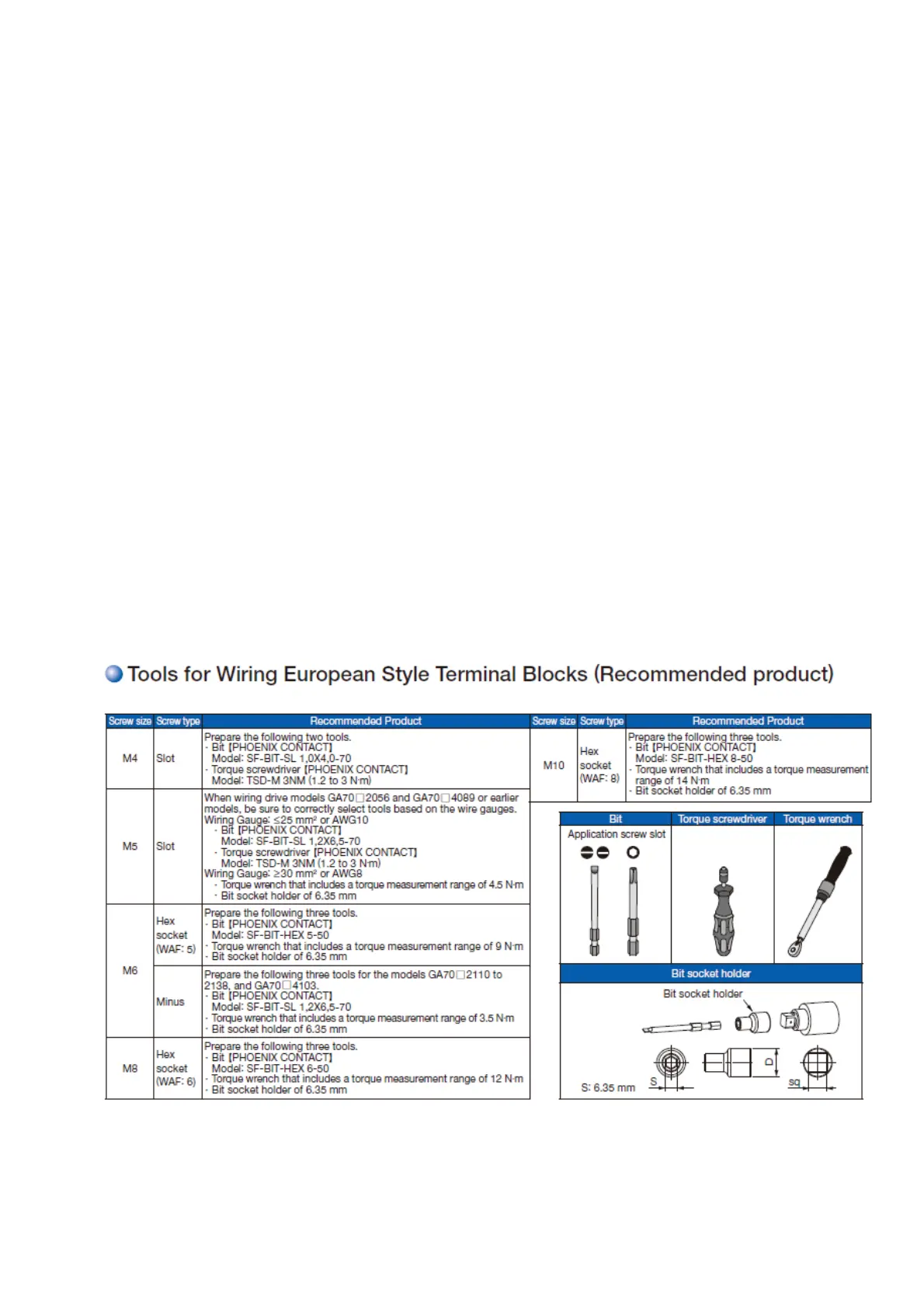

- Tighten screws according to the designated tightening torque listed below.
- A straight tip or hexagonal tool must be used when wiring the European terminal.
- Secure wires in the wiring section so that pressure is not applied to the terminal blocks.
- After connecting the wires, gently pull on the wires to check that they do not pull out.
- Regularly tighten any loose terminal block screws to their specified tightening torques
