52
(4) Jog Operation
The operation pattern below shows jog operation by using digital operator. The numbers in
the diagram correspond to the step numbers in Table 17.
Forward Run
Power ON
Forward Jog Run
1
2
4
10%
Reverse Run
10%
Reverse Jog Run
3
Reverse Run
Command

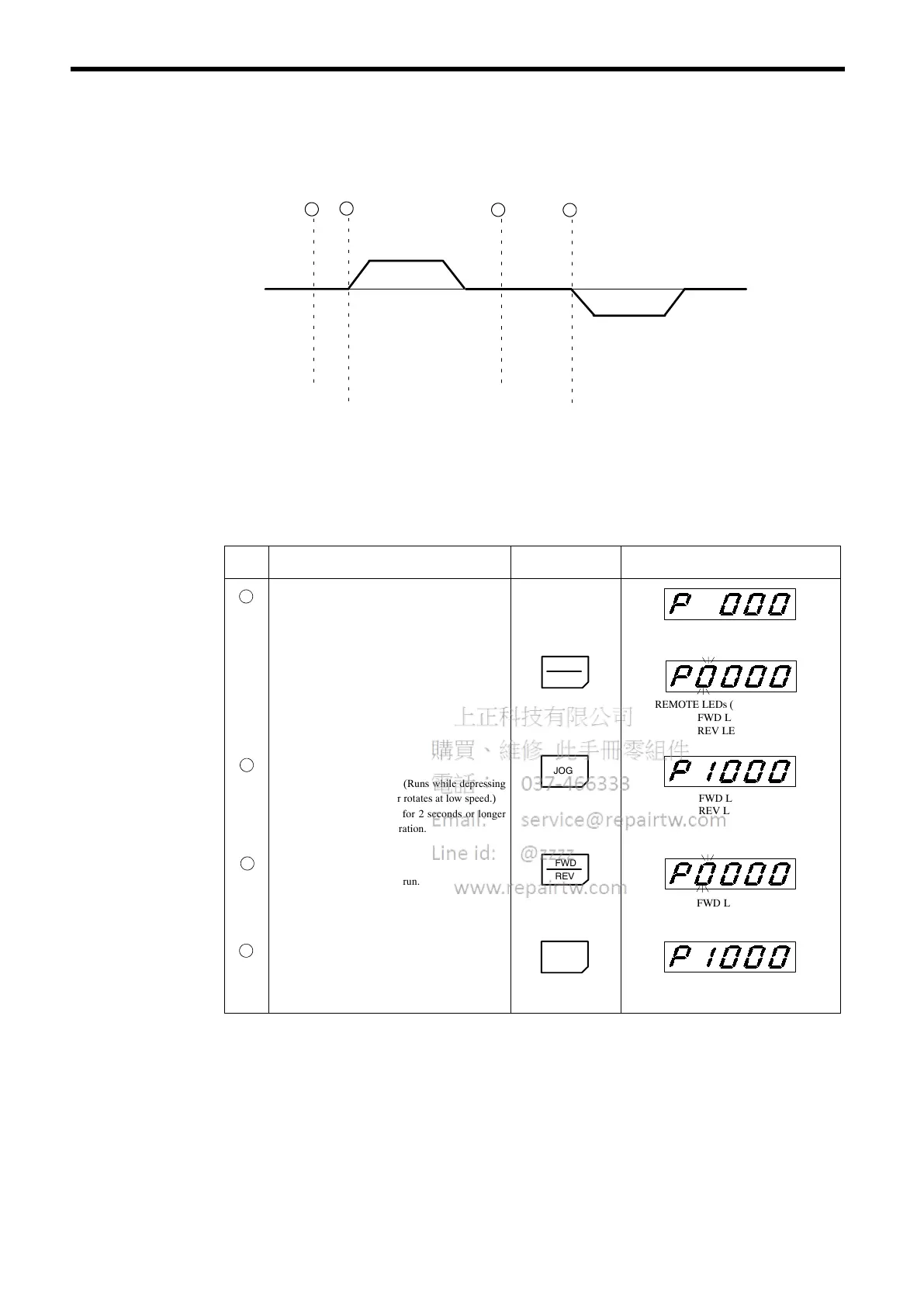

Fig. 23 Operation Sequence by Using Digital Operator (Jog Operation)
Table 17 Jog Operation by Using Digital Operator
Step Description Key Sequence Digital Operator Display
1
Power ON
• Displays speed reference value.
G
REMOTE LEDs (SEQ, REF) ON.
Operation Condition Setting
• Select LOCAL mode.
LOCAL
REMOTE
REMOTE LEDs (SEQ, REF) OFF
G
FWD LED ON
REV LED OFF
2
Forward jog run (10%)
• Perform jog run. (Runs while depressing
JOG key. Motor rotates at low speed.)
Depress the key for 2 seconds or longer
to check the operation.
JOG
G
FWD LED ON
REV LED OFF
3
Reverse run command
• Switch to reverse run.
FWD
REV
G
FWD LED OFF
REV LED ON
4
Reverse jog run (10%)
• Perform jog run. (Runs while depressing
JOG key. Motor rotates at low speed.)
JOG
G
FWD LED OFF
REV LED ON
Note: When the constant b1-05 (Operation selection for setting of E1-08 or less) = 1 (base block) and
the constant E1-08 is set to 30 min
-1
or more, reset E1-08 to 0 and then adjust the PG zero-pulse.
After adjusting the PG zero-pulse, return the constant E1-08 to the previous setting.
To Next Page
