4 OPERATION
53
(5) Example of Basic Operation
Check the following items during operation.
V Motor rotates smoothly.
V Motor rotates in the correct direction.
V Motor does not have abnormal vibration or noise.
V Acceleration and deceleration are smooth.
V Current matches the load flow.
V Status indicator LEDs and digital operator display are correct.
(a) Operation by Digital Operator
The diagram below shows a typical operation pattern using the digital operator. The
numbers in the diagram correspond to the step numbers in Table 18.
Power
ON
Forward Jog Run Speed Setting
Forward Run
SpeedReferenceValue Change
Reverse Run
Stop
Forward
25%
Forward
100%
Reverse
100%
10%
1
2
3
56 7
4

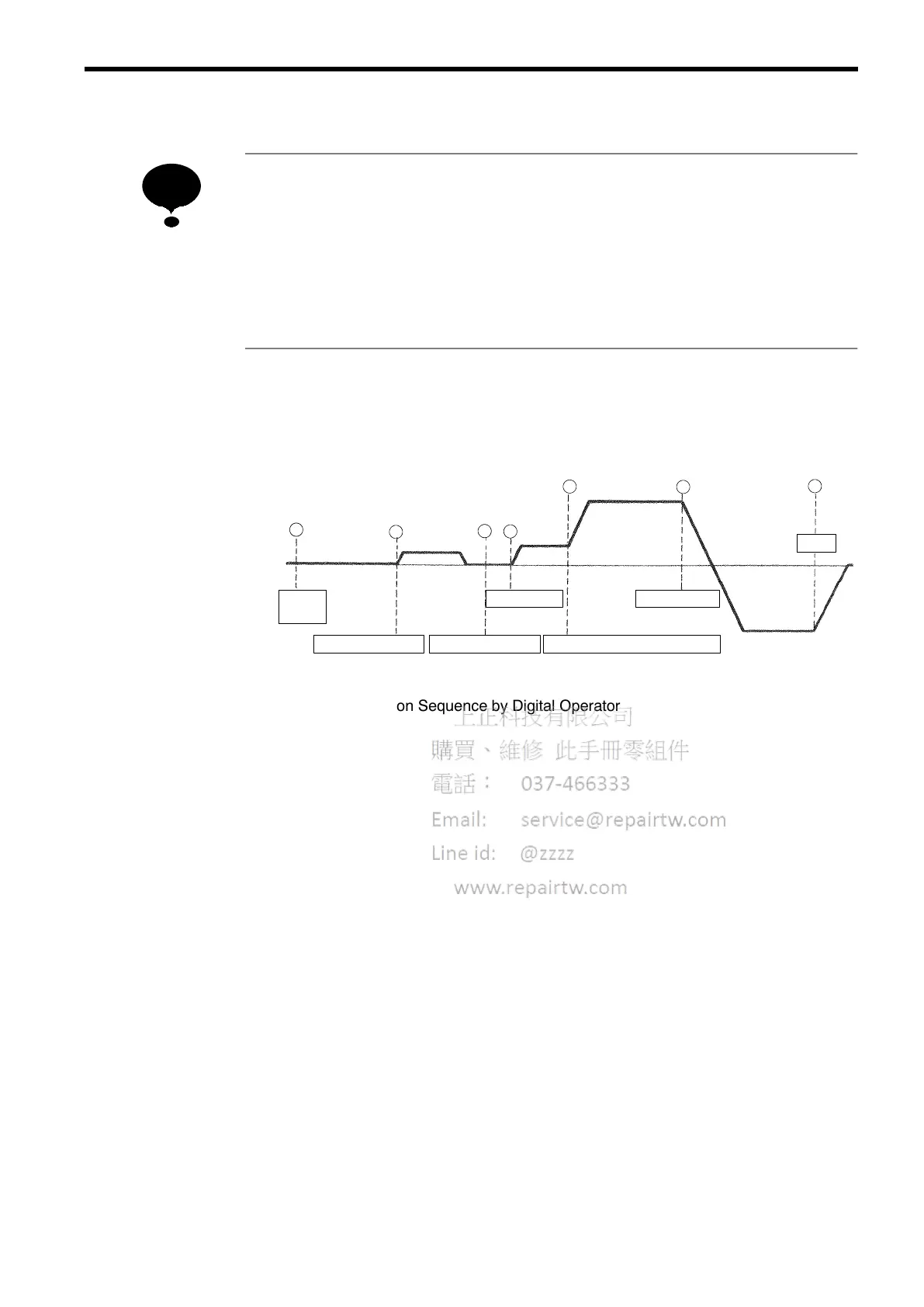

Fig. 24 Operation Sequence by Digital Operator
NOTE
To Next Page
