5 Replace Cooling Fans
10 YASKAWA TOEP C730600 0GA Fan Replacement Procedure
■ Remove a Fan
1. Push the tabs toward the back of the drive and pull up to remove the fan finger guard
from the drive.
A - Fan finger guard

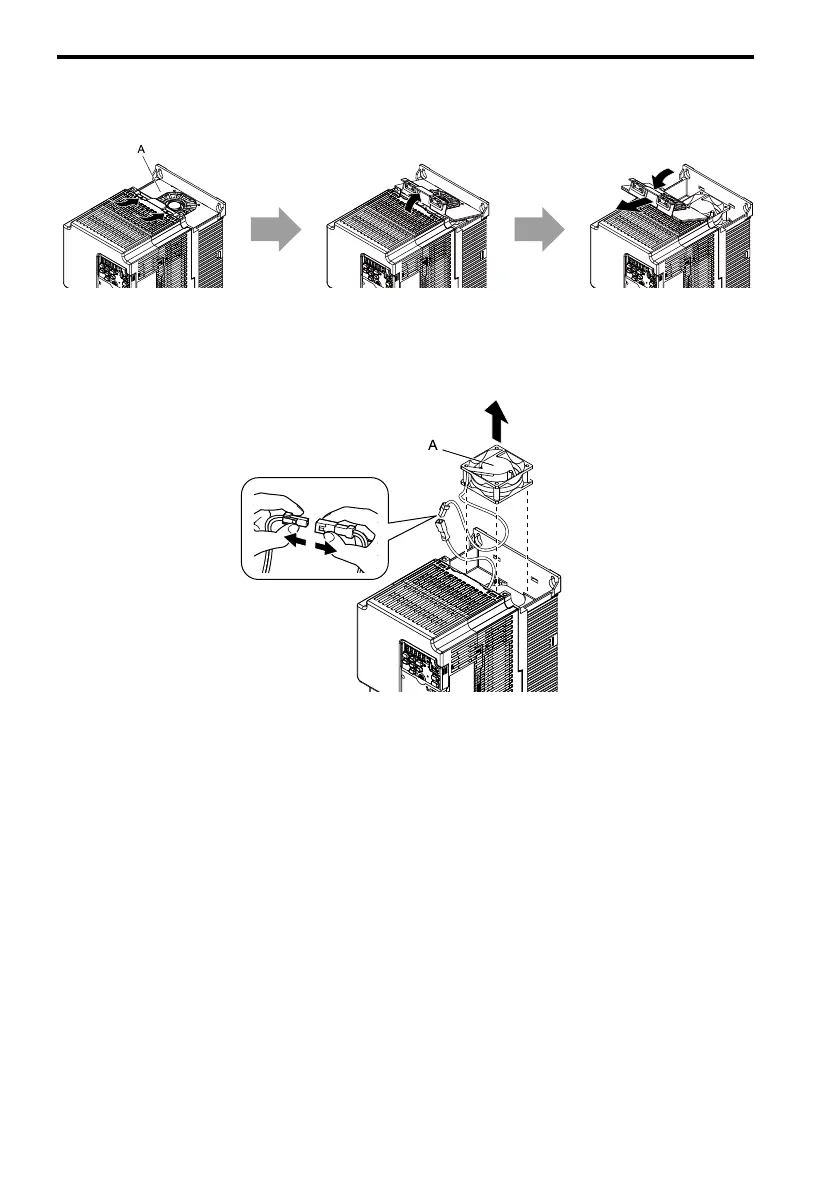

Figure 5.10 Remove the Fan Finger Guard
2. Pull the cooling fan straight up from the drive. Disconnect the power supply connector
and remove the fan from the drive.
A - Cooling fan
Figure 5.11 Remove the Cooling Fan
■ Install the Cooling Fans
Reverse the removal procedure to install a cooling fan.
