5 Replace Cooling Fans
YASKAWA TOEP C730600 0GA Fan Replacement Procedure 11

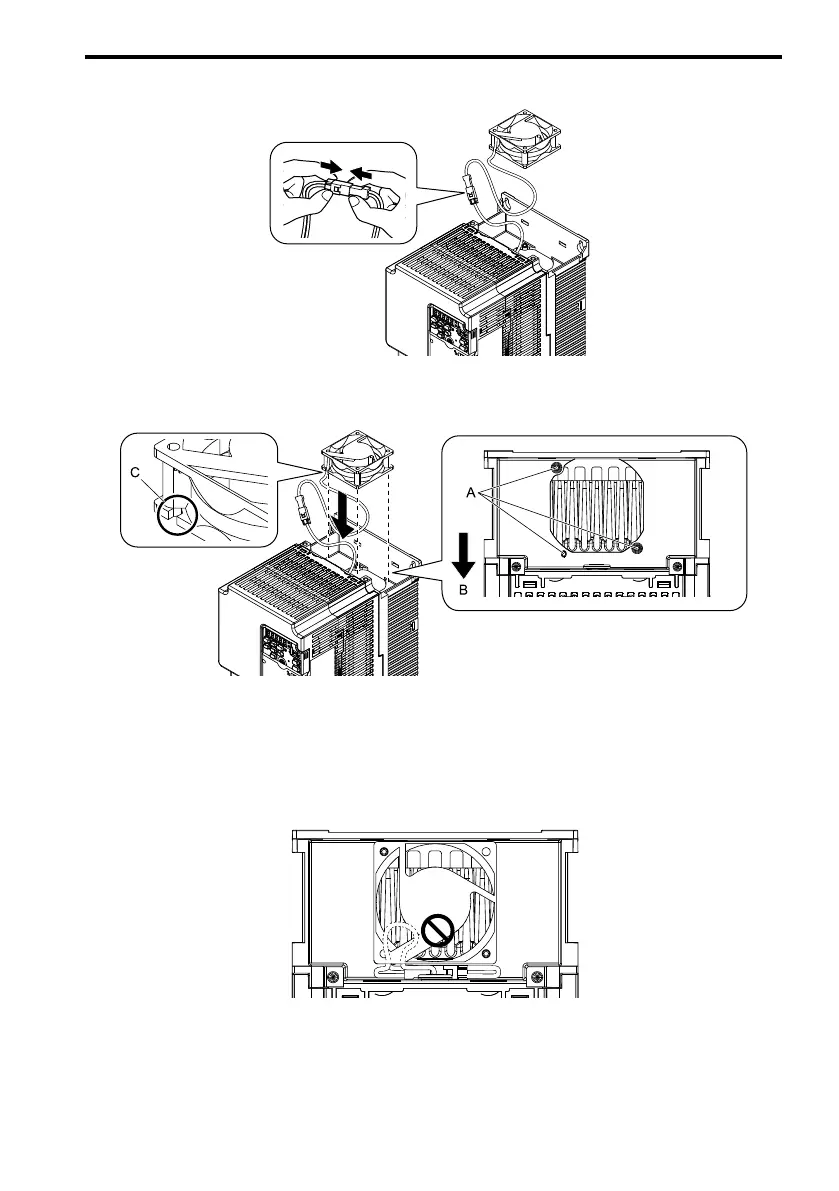

1. Connect the power supply connector between the drive and cooling fan.
Figure 5.12 Connecting the power supply connector
2. Install the cooling fans so that they align with the pins on the drive.
A - Alignment pins on drive
B - Front of drive
C - Notches
Figure 5.13 Installing the cooling fans
Note:
When you install the cooling fan, make sure that you do not pinch cables between the cooling fan and the
drive.
