5 Replace Cooling Fans
YASKAWA TOEP C730600 0GA Fan Replacement Procedure 7
1. Connect the power supply connector between the drive and cooling fan.

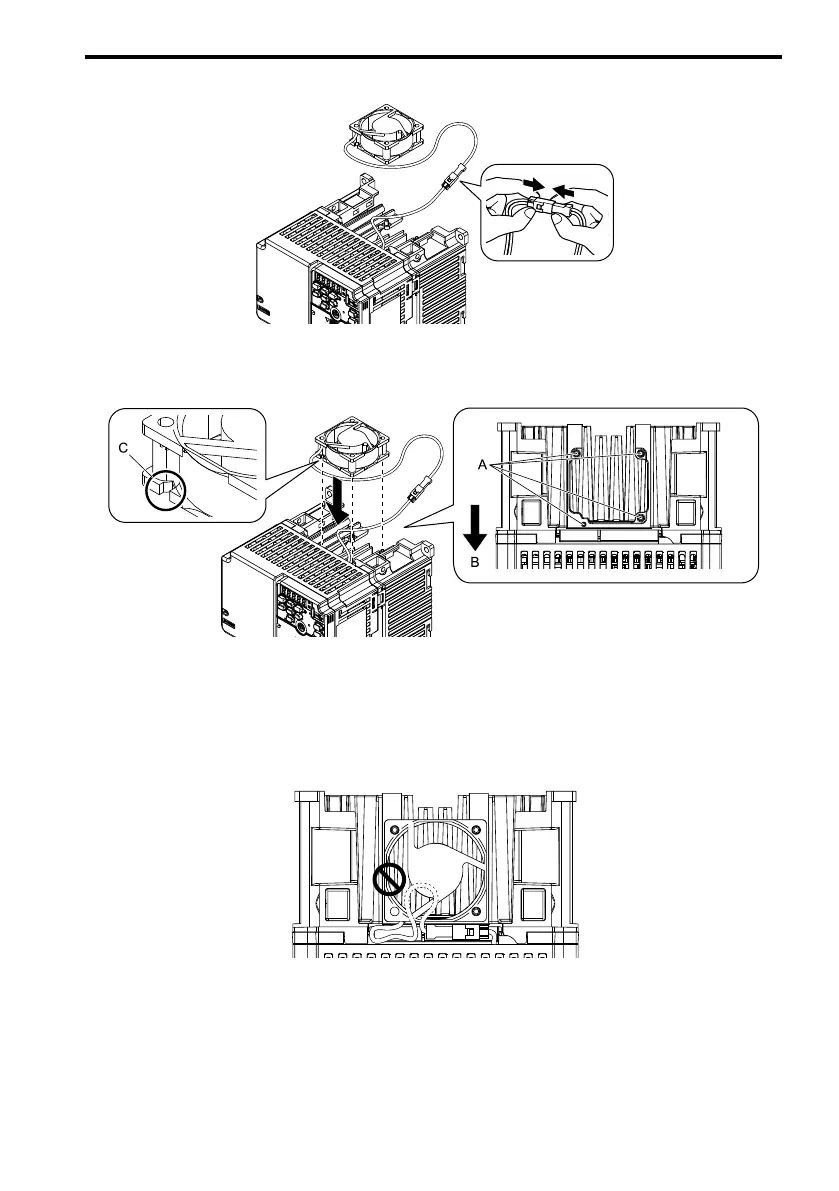

Figure 5.3 Connect the Power Supply Connector
2. Align the notches on the fan with the pins on the drive and install the cooling fans in the
drive.
A - Alignment pins on drive
B - Front of drive
C - Notch on fan
Figure 5.4 Install the Cooling Fan
Note:
When you install the cooling fan, make sure that you do not pinch cables between the cooling fan and the
drive.
