YASKAWA Drive-V1000 User Manual

4 LCD Operator Option Components
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 15

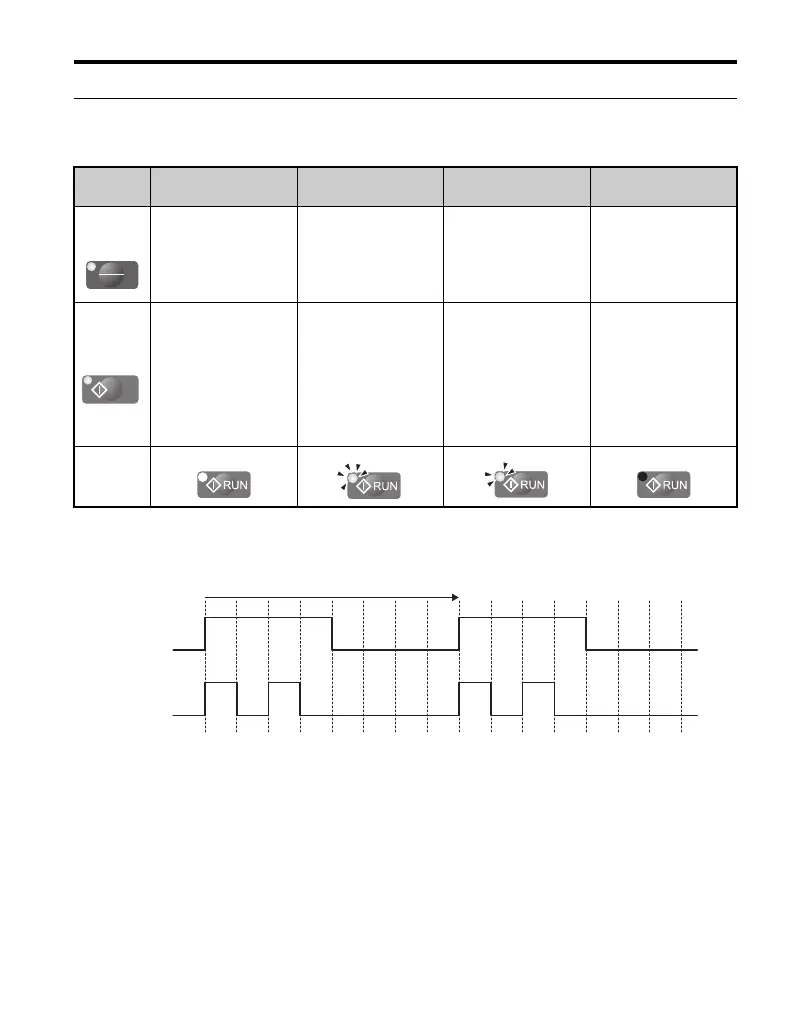

◆ LCD Operator LED Status Indicators
Table 7 LED Status and Meaning
Figure 3
Figure 3 RUN LED Status
LED Illuminated Flashing <1>
<1> For the difference between “Flashing” and “Flashing Quickly” of the RUN LED, refer to Figure 3, RUN LED
Status.
Flashing
Quickly <1>
Off
LO/RE
LED
When the run
command is selected
from the LCD
operator (LOCAL).
––
Run command is
selected from a
device other than the
LCD operator
(REMOTE).
RUN LED
During run.
•During
deceleration to
stop.
• When a run
command is input
and the frequency
reference is 0 Hz.
• During
deceleration at a
fast-stop.
• During stop by
External Fault
digital input.
During stop.
As shown
RE
LO
RUN
Flashing
quickly
Flashing
ON ON
ON
ON ON
ON
1 s

YASKAWA Drive-V1000 Specifications

General

Series	V1000
Output Current	Varies by model (refer to specific model datasheet)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	95% RH or less (non-condensing)
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Short Circuit
Communication	Modbus RTU, PROFIBUS-DP, DeviceNet, EtherNet/IP
Braking Unit	Built-in or External (optional)
Input Voltage	3-Phase 200-240 VAC ±10% 50/60 Hz, 3-Phase 380-480 VAC ±10% 50/60 Hz
Output Voltage	0 to Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
