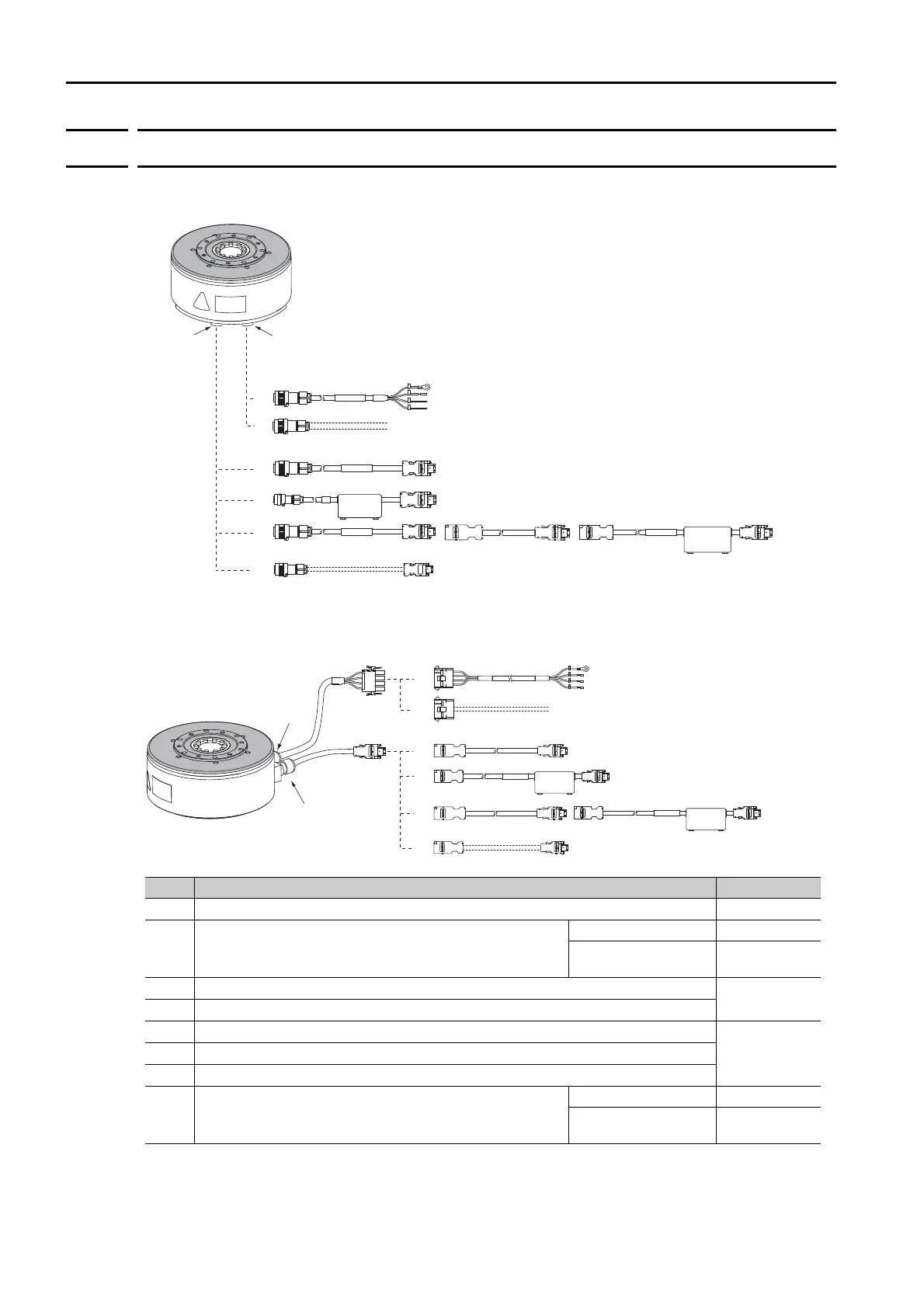

8.1 Cable Configurations
8.1.2 SGM7E Motors and SGM7F-A to -D Motors
8-4
8.1.2
SGM7E Motors and SGM7F-A to -D Motors
Flange Specification 1
Flange Specification 4
Note: 1. The maximum wiring length is 50 m for Servomotor Main Circuit Cables and Encoder Cables.
2. If the Encoder Cable length exceeds 20 m, be sure to also connect Relay Encoder Cables as shown in the
above diagram, at
to
for flange specification 1 and at
and
for flange specification 4.
No. Cable Type Reference
Servomotor Main Circuit Cables
page 8-8
User-Assembled Wiring Materials for Servomotor Main
Circuit Cables
Connectors
page 8-13
Cables without
Connectors
page 8-17
Encoder Cables of 20 m or Less
page 8-20
Encoder Cables of 20 m or Less with Battery Cases
Motor-End Relay Encoder Cables
page 8-31
SERVOPACK-End Relay Encoder Cables
Relay Encoder Cables with a Battery Case
User-Assembled Wiring Materials for Encoder Cables
Connectors
page 8-39
Cables without
Connectors
page 8-40
Encoder
connector
Servomotor
connector
Servomotor Main Circuit Cables
Encoder Cables
Encoder Cable
Servomotor
Main Circuit Cable
Servomotor Main Circuit Cables
Encoder Cables
To Next Page
