4.6 User-Assembled Wiring Materials for Encoder Cables
4.6.2 Encoder Connector Kits
4
Cables and User-Assembled Wiring Materials for SGM7A Rotary Servomotors
4-31
* A Crimping Tool is required. When using other wire sizes, contact the connector manufacturer for crimping tools.
SGM7A-15 to -70 (1.5 kW to 7.0 kW)
 IP67-Structure Servomotor Connectors
*1. A Crimping Tool is required. The following Crimping Tool is applicable to the Cables provided by Yaskawa. When
using other wire sizes, contact the connector manufacturer for crimping tools.
Crimping Tool: 357J-52667T
*2. A Right-Angle Connector cannot be used for the encoder connector of the SGM7A-70 (7.0 kW). Use a Straight
Connector.
All Models
 Cable Relay Connectors

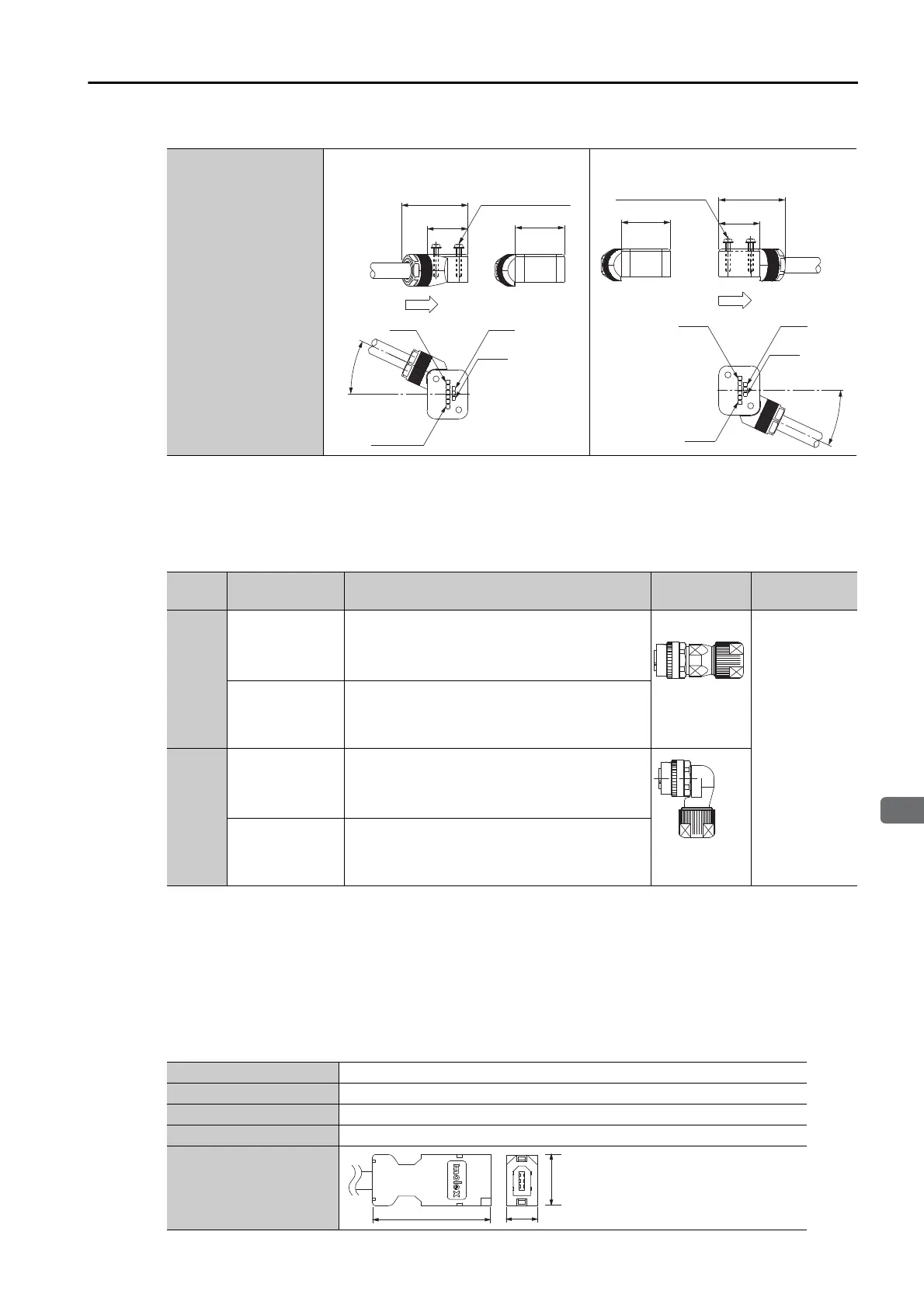

External Dimensions
[mm]
 Cable Installed away from Load
 Cable Installed toward Load
Typ e Order Number Specification
External
Dimensions
Manufacturer
Straight
Plug
JZSP-CVP9-1-E
• Plug: CM10-SP10S-M-D
• Contacts: Crimped
*1
CM10-#22SC(C4)-100
• Applicable cable diameter: 6.0 mm to 9.0 mm
Accessories:
Contacts
DDK Ltd.
JZSP-CVP9-3-E
• Plug: CM10-SP10S-M-D
• Contacts: Soldered
CM10-#22SC(S1)-100
• Applicable cable diameter: 6.0 mm to 9.0 mm
Right-
Angle
Plug
*2
JZSP-CVP9-2-E
• Plug: CM10-AP10S-M-D
• Contacts: Crimped
*1
CM10-#22SC(C4)-100
• Applicable cable diameter: 6.0 mm to 9.0 mm
Accessories:
Contacts
JZSP-CVP9-4-E
• Plug: CM10-AP10S-M-D
• Contacts: Soldered
CM10-#22SC(S1)-100
• Applicable cable diameter: 6.0 mm to 9.0 mm
Order Number JZSP-CMP9-2-E
Manufacturer Molex Incorporated
Components 54280-0609 (soldered)
Product Specifications PS-54280
External Dimensions
[mm]
Continued from previous page.
Pin 6
Pin 1
Pin 9
Pin 7
(27.5)
17
20.5
2 × M2
pan-head screws
Motor mounting surface
25°
2 × M2
pan-head screws
(27.5)
20.5
17
Motor mounting
surface
Pin 6
Pin 1
25°
Pin 9
Pin 7
1
2
3
4
5
6
(19)
(12)
(44)
