YASKAWA E Series User Manual

4.6 User-Assembled Wiring Materials for Encoder Cables
4.6.3 Cables without Connectors
4-32
4.6.3 Cables without Connectors
* Replace the boxes () in the order number with the cable length (05, 10, 15, or 20).
Item Standard Cable Flexible Cable
Order Number*
JZSP-CMP09--E
(maximum length: 20 m)
JZSP-CSP39--E
(maximum length: 20 m)
Specifications
UL20276 (rated temperature: 80°C)
AWG22 × 2C + AWG24 × 2P
UL20276 (rated temperature: 80°C)
AWG22 × 2C + AWG24 × 2P
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.15 mm
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.35 mm
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath:
1.09 mm
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath:
1.21 mm
Finished Diameter 6.5 mm 6.8 mm

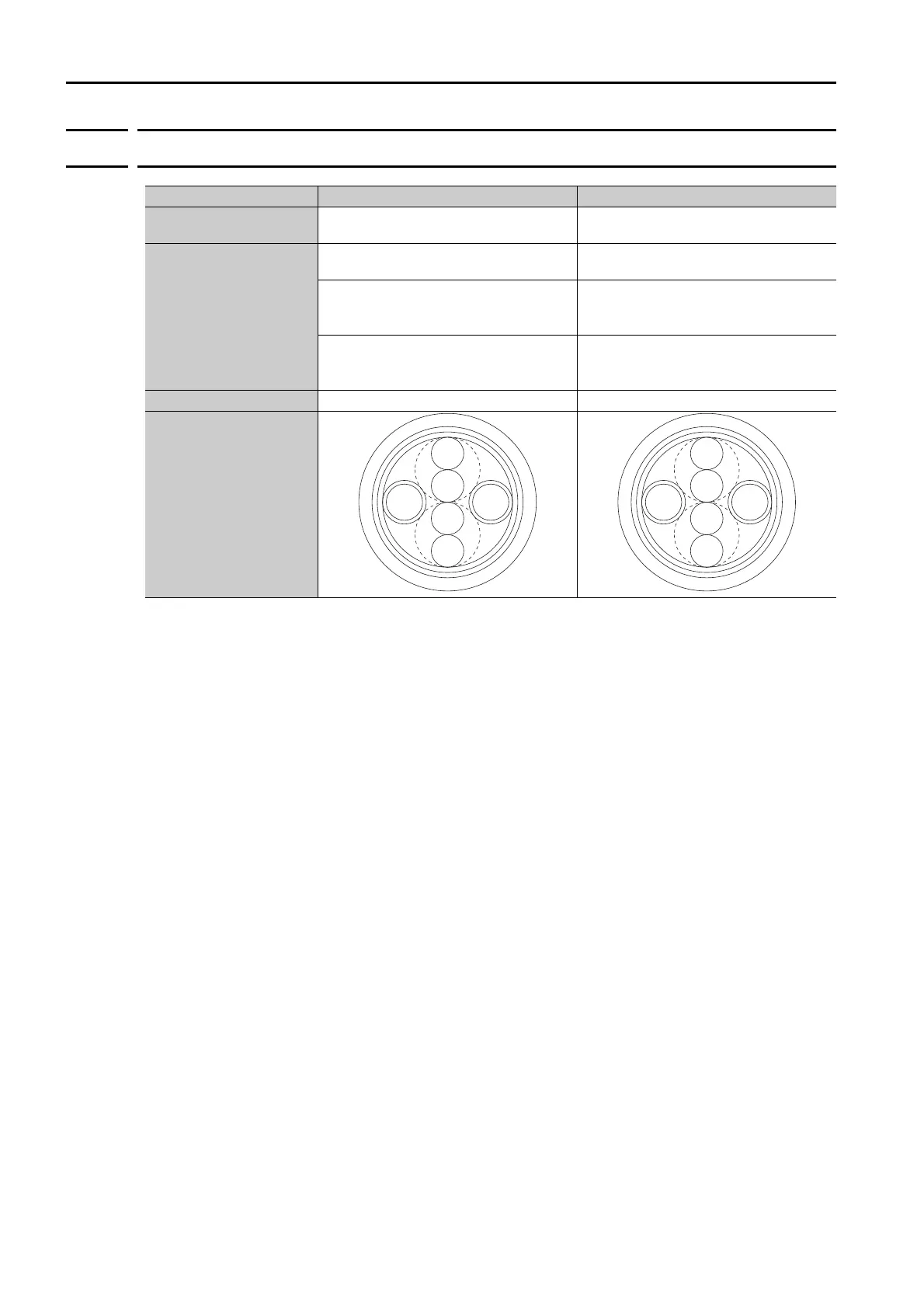

Internal Structure and
Lead Colors
Light blue
/white
Orange
Orange
/white
Light
blue
Red
Black
Black
/light blue
Red
/light blue
Black
/pink
Red
/pink
Orange
Light
green
