YASKAWA F7 Programming Manual

Programming 106
The analog output function selections above correspond to one of the same number U1-xx monitors in the Drive.

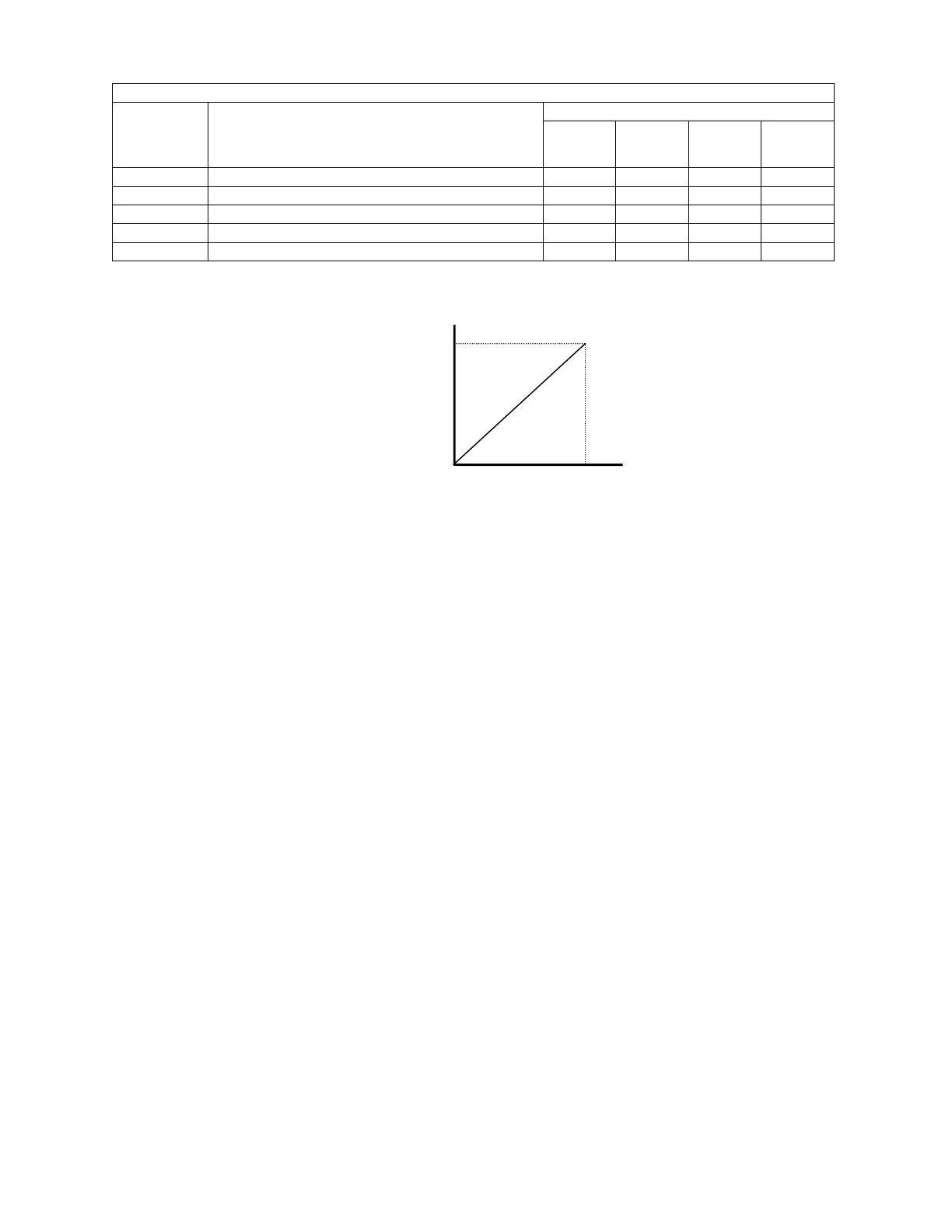

Fig. 77 Analog Output Signal Level as a Function of the Monitor Value
Function: Frequency Reference
Setting: 1
The analog output level will correspond to the chosen frequency reference input whether it is input via the digital operator,
analog input, serial communication, option board, or pulse input. 100% will be equivalent to the maximum output frequency
of the Drive (E1-04).
Function: Output Frequency
Setting: 2
The analog output level will correspond to the actual Speed being output by the Drive and will include the acceleration and
deceleration ramps. 100% will be equivalent to the maximum output frequency of the Drive (E1-04).
Function: Output Current
Setting: 3
The analog output level will correspond to the output current level of the Drive. 100% will be equivalent to the Drives rated
output current which is based on the rated capacity of the Drive (o2-04).
Function: Motor Speed
Setting: 5
The analog output level will correspond to the motor speed. 100% will be equivalent to the maximum output frequency of the
Drive (E1-04).
Function: Output Voltage
Setting: 6
36 PID Input O O O O
37 PID Output O O O O
38 PID Setpoint O O O O
44 ASR Output Without Filter X X X O
45 Feedforward Control Output X X X O
Table 21 Analog Output Functions
Parameter
Setting
Function
Control Method (A1-02)
V/f
V/f with
PG
Open
Loop
Vector
Flux
Vector
10 V
100%
0
Output
Voltage
Monitor
Function Level
20mA
4mA
