YASKAWA F7 Programming Manual

Programming 60
 E3-05 Motor 2 Mid Output Frequency A
Setting Range: 0.0 to 400.0 Hz
Factory Default: 3.0 Hz
 E3-06 Motor 2 Mid Output Voltage VA
Setting Range: 0.0 to 255.0V (240V Models)
0.0 to 510.0V (480V Models)
Factory Defaults: 12.6V (240V Models)
25.2V (480V Models)
 E3-07 Motor 2 Minimum Output Frequency
Setting Range: 0.0 to 400.0 Hz
Factory Default: 0.5 Hz
 E3-08 Motor 2 Minimum Output Voltage
Setting Range: 0.0 to 255.0V (240V Models)
0.0 to 510.0V (480V Models)
Factory Defaults: 2.3V (240V Models)
4.6V (480V Models)

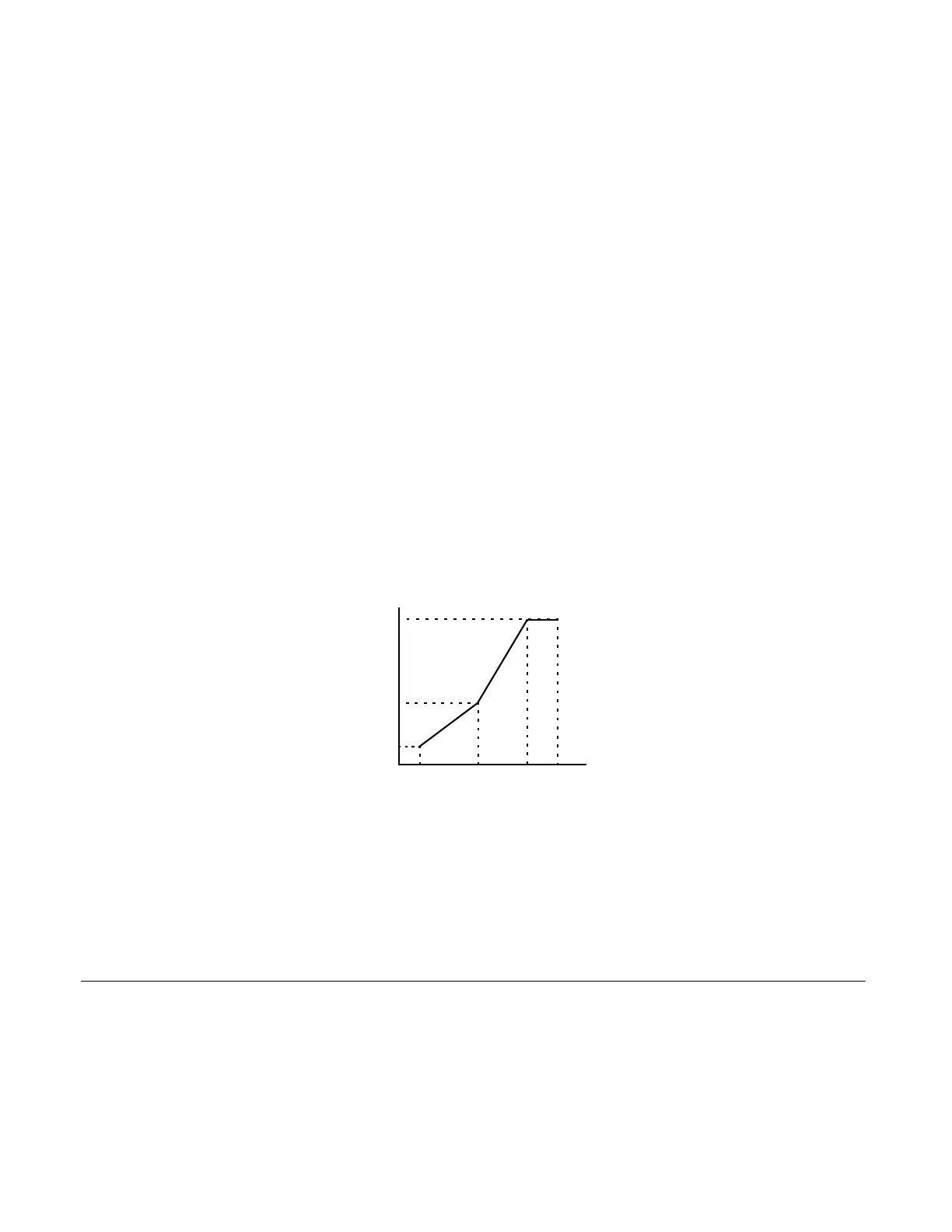

Fig. 40 Motor 2 V/f Curve
To set V/f characteristics in a straight line, set the same values for E3-05 and E3-07. In this case, the setting for E3-06 will be
disregarded. Be sure that the four frequencies are set in the following manner or else an OPE10 fault will occur:
 E4 Motor Setup 2
 E4-01 Motor 2 Rated Current
Setting Range: Model Dependent
Factory Default: Model Dependent
Output voltage (V)
Frequency (Hz)
E3-07 E3-05 E3-04 E3-02
E3-03
E3-06
E3-08
E3-07
≤
E3-05 < E3-04
≤
E3-02
