YASKAWA F7 Programming Manual

Programming 39
 If H3-05 or H3-09= “3: Aux Reference 2” then the analog input A3 or A2, respectively will be used instead of Frequency
Reference 3 for the third preset speed. If H3-05 or H3-09 ≠ 3 then Frequency Reference 3 (d1-03) will be used.

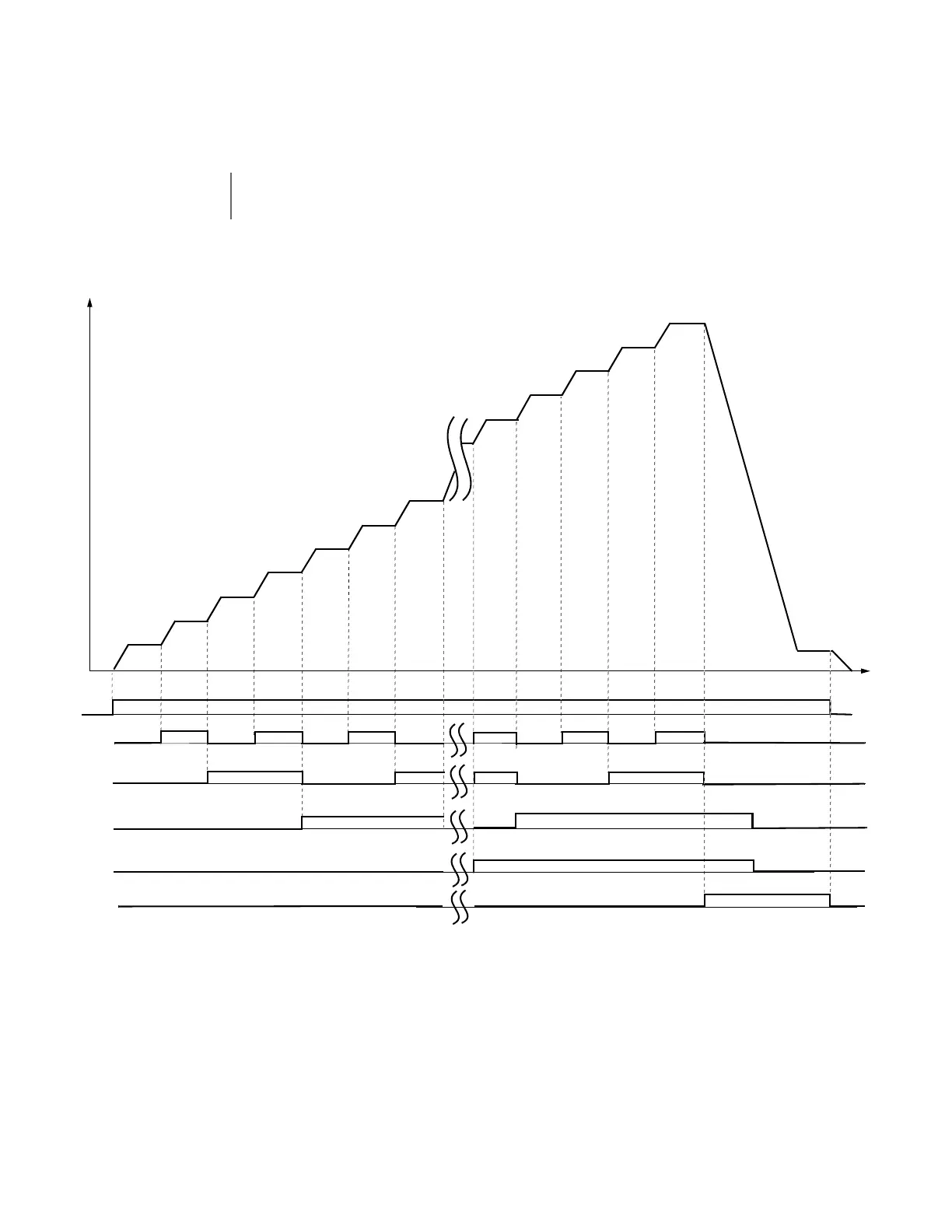

Fig. 31 Preset Reference Timing Diagram
 d1-17 Jog Frequency Reference
Setting Range: 0.00 to E1-04 Value
Factory Default: 6.00 Hz
IMPORTANT
The programming of d1-01 through d1-04 and d1-17 will be affected by the setting of o1-03. The programming
of these parameters will be in the units specified by Display Scaling parameter (o1-03).
Frequency
Reference
FWD (REV) Run/Stop
Term.S4 (H1-02=3)
Multi-step Speed Ref. 2
Term.S5 (H1-03=4)
D1-04
20.0Hz
D1-01
5.0Hz
D1-02
10.0Hz
D1-03
15.0Hz
ON
ON
ON
ON
Multi-step Speed Ref. 3
Term.S6 (H1-04=5)
Jog Ref.
Term.S8 (H1-06=6)
ON
ON
ON
D1-05
25.0Hz
D1-06
30.0Hz
D1-07
35.0Hz
D1-17
6.0Hz
Time
D1-12
60.0Hz
D1-13
65.0Hz
D1-14
70.0Hz
D1-15
75.0Hz
D1-16
80.0Hz
ON
ON
ON
Multi-step Speed Ref. 1
Multi-step Speed Ref. 4
Term.S7 (H1-05=32)
ON
ON
ON
ON
ON
