60 YASKAWA TM.iQp.02 iQpump Drive Programming Manual
Function: Thermostat Fault (Setting: 83)
A digital input can be configured to indicate a Thermostat Fault from an external contact (H1-0x = 83). A contact closure into the multi-
function input will enable the Thermostat Fault. After an initiation of a Thermostat Fault, to disable the Thermostat Fault requires a open
digital input contact, the drive run command to be open and reset the Thermostat Fault via the drive's reset button or fault reset input.
Note: An OPE12 fault will occur if H1-xx = 83 and 87. H1-xx cannot be programmed to “83” and “87” at the same time.
Figure 1. 46
Figure 46 Thermostat Fault on Operator
Figure 1. 47

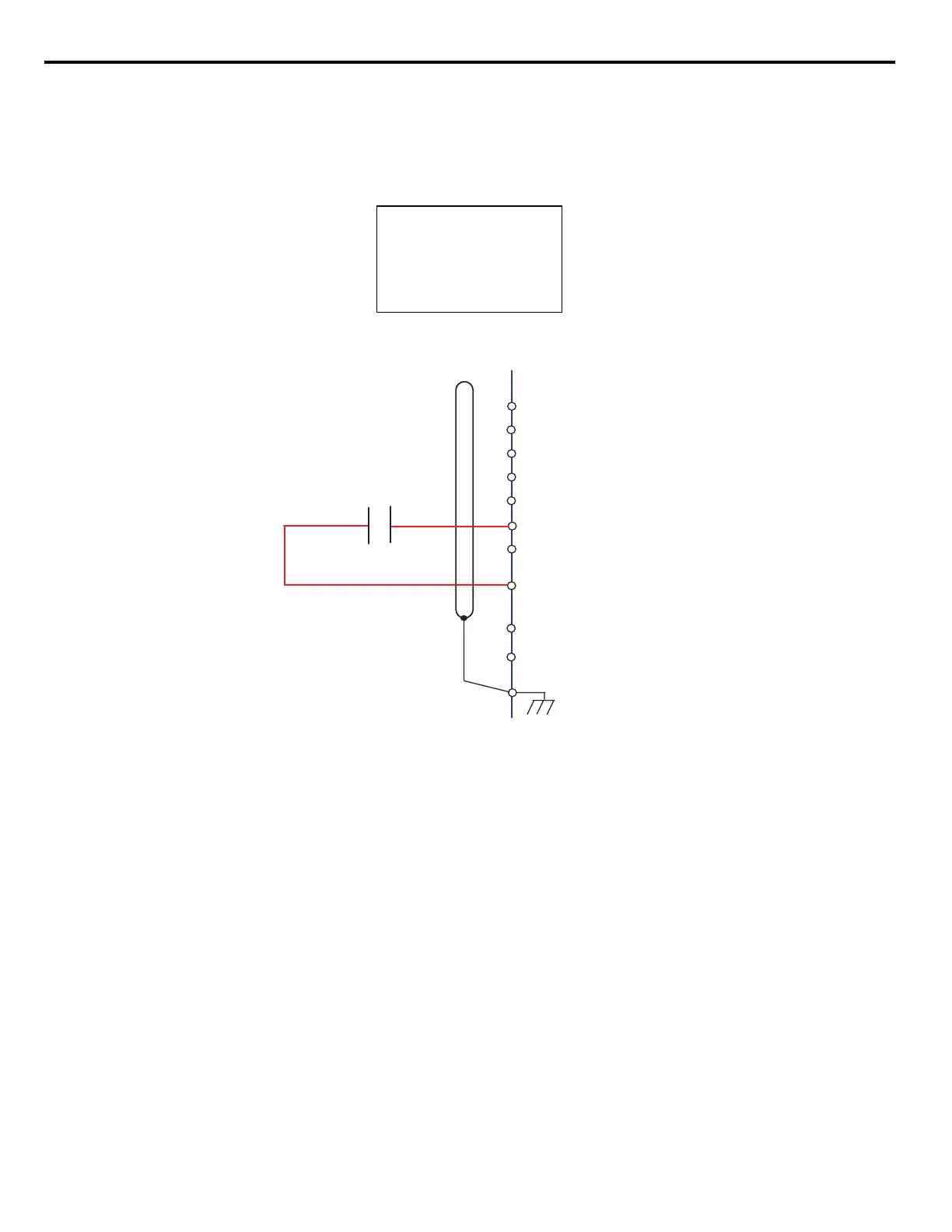

Figure 47 Wiring Diagram
Function: Disable Pre-Charge (Setting: 84)
A digital input can be configured to enable or disable the Pre-Charge function (H1-0x = 84). A contact closure into the multi-function
digital input will disable the Pre-Charge function independent of the value programmed into the Pre-Charge Time (P4-03). When the
digital input is open, the Pre-Charge function is enabled.
-DRIVE-
Thermostat
THMS
U2-04 =
U2-05 =
0.00 Hz
0.00 A
External Switch or
Relay Contact
Thermostat Fault
H1-04 = 83
(Thermostat FltNo)
S1
S2
S3 (H1-01
S4 (H1-02)
S5 (H1-03)
S6 (H1-04)
S7 (H1-05)
SC
SP 24 VDC +/- 20%, 8 mA
E (G)
SN
