3 Electrical Installation
YASK AWA TOEPYAIL1E01A YASKAWA AC Drive L1000E Quick Start Guide 31
Models 2A0018 to 2A0094 and 4A0009 to 4A0049
1. Slide the front cover so the hooks on the top connect to the drive.
Figure 21

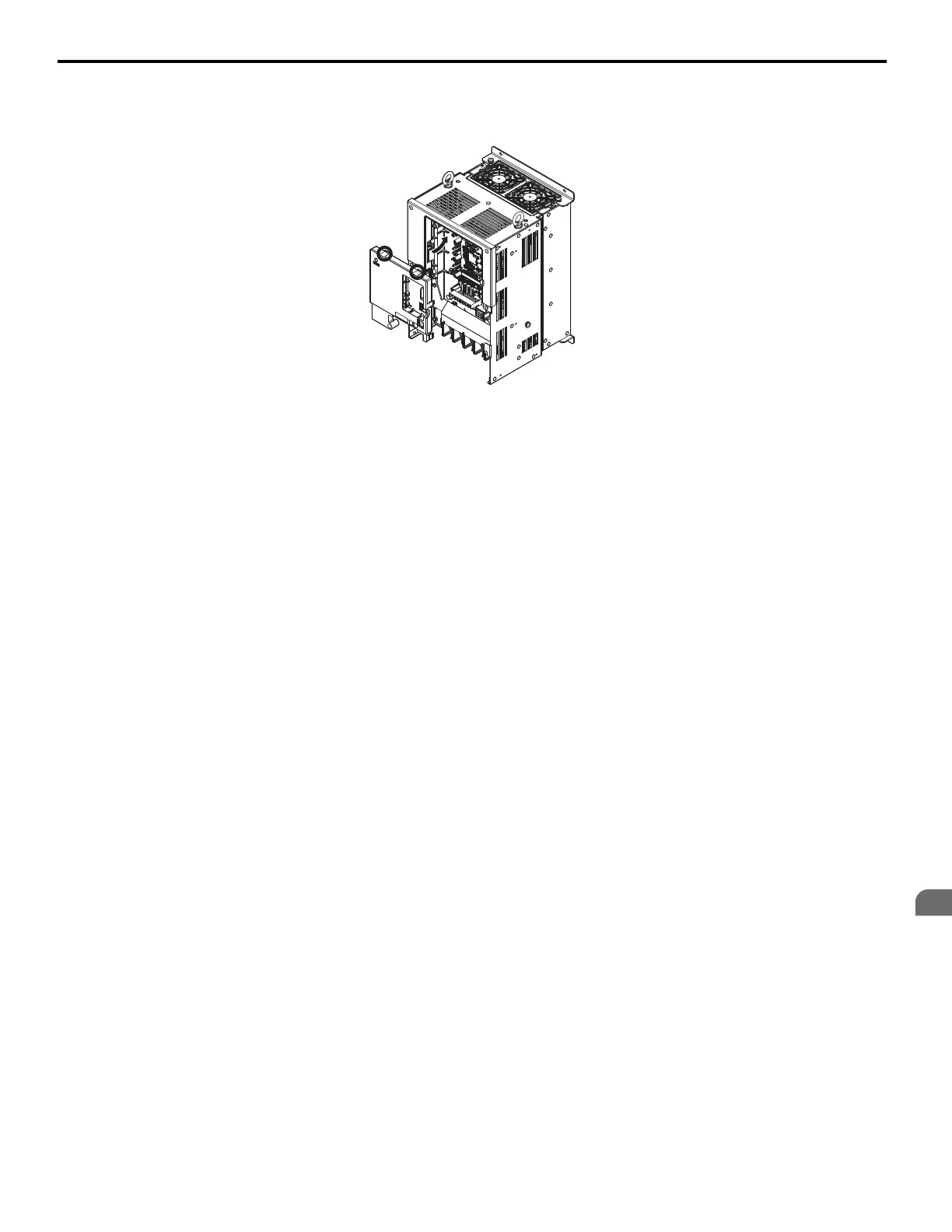

Figure 21 Reattach the Front Cover (2A0106 to 2A0432 and 4A0056 to 4A0260)
2. After connecting the hooks to the drive, press firmly on the cover to lock it into place.
