3 Electrical Installation
30 YASK AWA TOEPYAIL1E01A YASKAWA AC Drive L1000E Quick Start Guide
Models 2A0106 to 2A0432 and 4A0056 to 4A0260
1. Remove the terminal cover and the LED monitor.
2. Loosen the installation screw on the front cover.
3. Use a straight-edge screwdriver to loosen the hooks on each side of the cover that hold it in place.

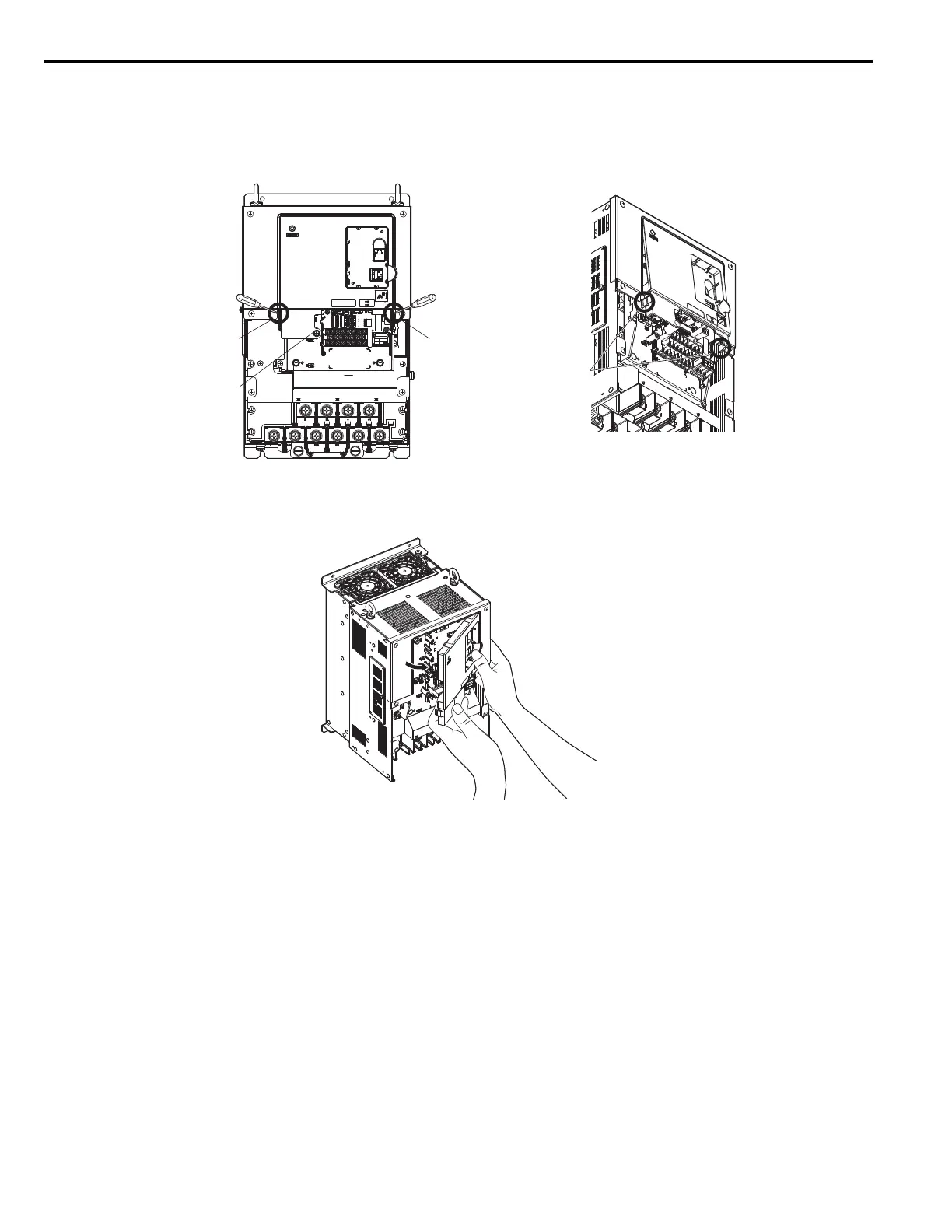

Figure 19
Figure 19 Remove the Front Cover (Models 2A0106 to 2A0432 and 4A0056 to 4A0260)
4. Unhook the left side of the front cover then swing the left side towards you as shown in Figure 20 until the cover
comes off.
Figure 20
Figure 20 Remove the Front Cover (Models 2A0106 to 2A0432 and 4A0056 to 4A0260)
Reattaching the Front Cover
Models 2A0018 to 2A0094 and 4A0009 to 4A0049
Reverse the instructions given in Remove the Front Cover (Models 2A0018 to 2A0094 and 4A0009 to 4A0049) on
page 29 to reattach the front cover. Pinch inwards on the hooks found on each side of the front cover while guiding it back
into the drive. Make sure it clicks firmly into place.
HookHook
Front cover
installation screw
Free hooks on both
sides of the cover
