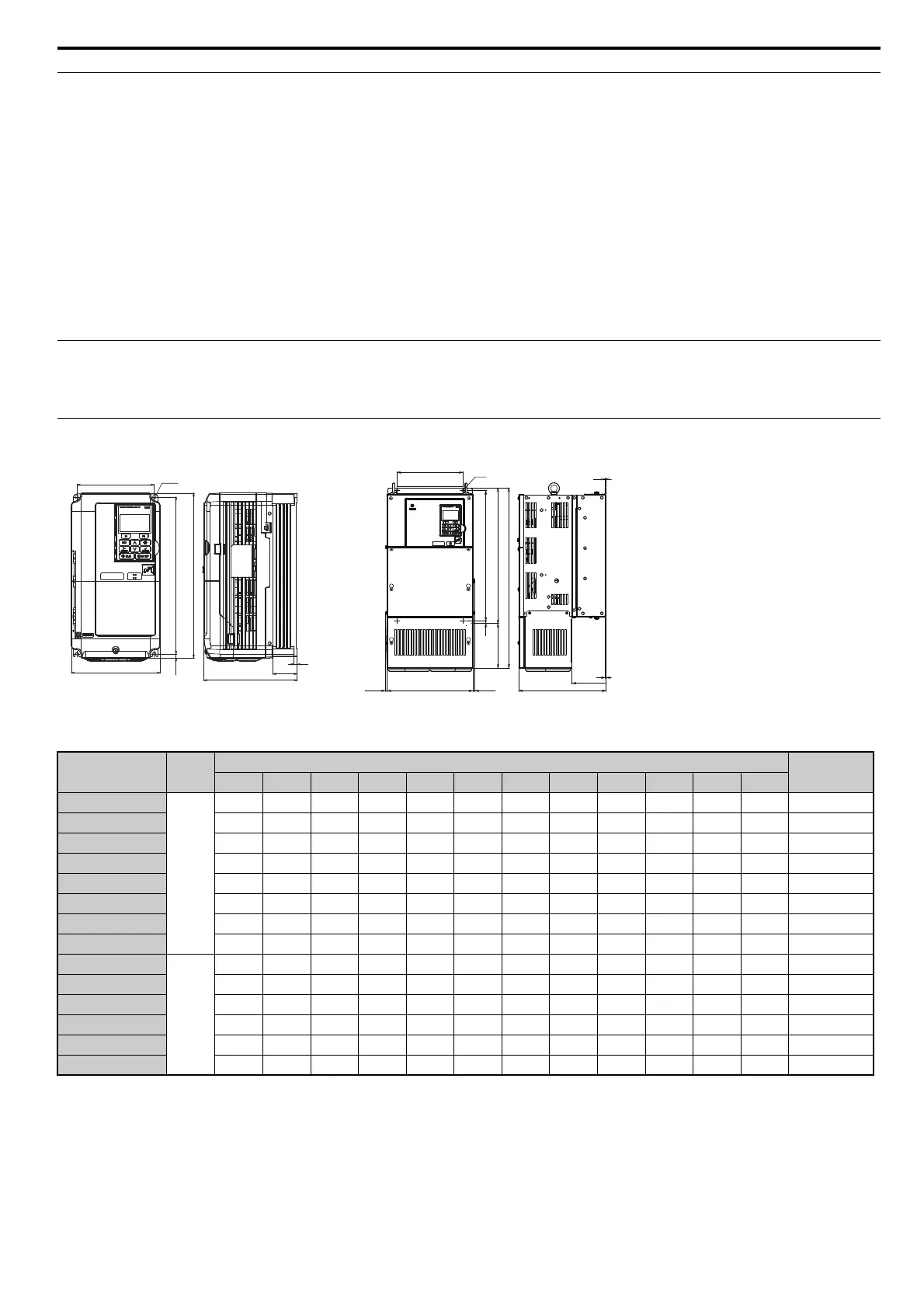

2 Mechanical Installation
YASKAWA Europe TOEP C710616 92D AC Drive L1000H Quick Start Guide EN 9
 Instructions on Installation
Eye bolts are used to install the drive or to temporarily lift the drive when replacing it. The drive can be installed in an
enclosure panel or on a wall. Do not leave the drive suspended by the wires in a horizontal or vertical position for long
periods of time. Do not transport the drive over long distances. Read the following precautions and instructions before
installing the drives.
WARNING! Be sure to observe the following instructions and precautions. Failure to comply could result in minor or moderate injury
and damage to the drive from falling equipment.
• Before using wires to suspend the drive vertically and horizontally, make sure that the drive front cover,
terminal blocks and other drive components are securely fixed with screws.
• Do not subject the drive to vibration or impact greater than 1.96 m/s
2
(0.2 G) while it is suspended by the
wires.
• Do not overturn the drive while it is suspended by the wires.
• Do not leave the drive suspended by the wires for long periods of time.
 Degree of Protection
The degree of protection of L1000H drives is IP20. Install the drive in a cabinet if higher degree of protection is required.
 Dimensions
Model
CIMR-L
Fig.
Dimensions (mm)
Weight
(kg)
W H D W1 H0 H1 H2 H3 D1 t1 t2 d
40005
1
140 260 147 122 – 248 6 – 38 5 – M5 3.2
40006 140 260 164 122 – 248 6 – 55 5 – M5 3.4
40009 140 260 164 122 – 248 6 – 55 5 – M5 3.5
40015 140 260 167 122 – 248 6 – 55 5 – M5 3.9
40018 140 260 167 122 – 248 6 – 55 5 – M5 3.9
40024 180 300 167 160 – 284 8 – 55 5 – M5 5.4
40031 180 300 187 160 – 284 8 – 75 5 – M5 5.7
40039 220 350 197 192 – 335 8 – 78 5 – M6 8.3
40045
2
254 465 258 195 400 385 7.5 65 100 2.3 2.3 M6 23
40060 279 515 258 220 450 435 7.5 65 100 2.3 2.3 M6 27
40075 329 630 258 260 510 495 7.5 120 105 2.3 3.2 M6 39
40091 329 630 258 260 510 495 7.5 120 105 2.3 3.2 M6 39
40112 329 630 283 260 550 535 7.5 80 110 2.3 2.3 M6 43
40150 329 630 283 260 550 535 7.5 80 110 2.3 2.3 M6 45
H2H2
W1W1
H
H0
H0 H1H1
W
D1
D1
D
t1
t1
H3H3
4-d4-d
Figure 2Figure 2
W1
H
H1H2
W
D
D1
t1
4-d
Figure 1
H1
H2
H0H3
H
W1
W
D
D1
t2
4-d
Max 10Max 10
Figure 2
