YASKAWA MP Series Troubleshooting Manual

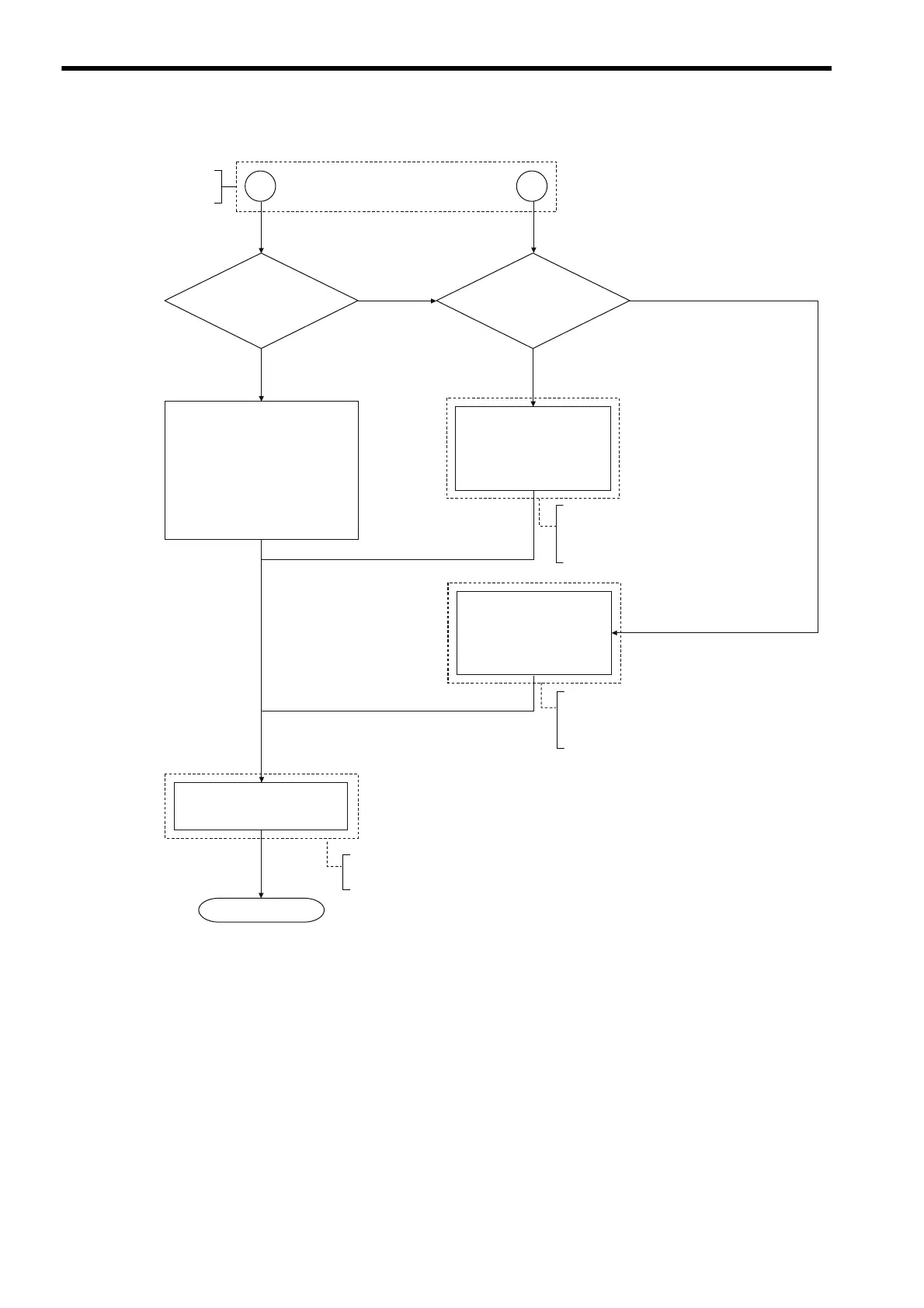

3.1 Flow for Checking Trouble
3-4
End
WAIT is displayed
in the Transmission
Status field.
NO
YES
The local
station is the master
station (the MSG-SND
function is used).
NO
Check the process
result of the message
transmission function,
and the status.
Check other items.
Check the process
result of the message
receive function,
and the status.
Check the following.
࡮The remote device exists and
the power to the remote
device is turned ON.
࡮After setting the parameters,
the data has been saved to
the flash memory and the
power has been turned OFF
and back ON.
YES
B1
From the
previous page
B2
For details, refer to 3.3.3 ( 1 ) [ a ]
Checking the
process result (PARAM00) when using the
message transmission function (MSG-SND)
.
For details, refer to 3.3.3 ( 1 ) [ b ]
Checking
the process result (PARAM00) when using the
message receive function (MSG-RCV)
.
For details, refer to 3.5
Other Trouble during
Message Communication
.
