YASKAWA P1000 Series User Manual

u
Connecting Peripheral Devices

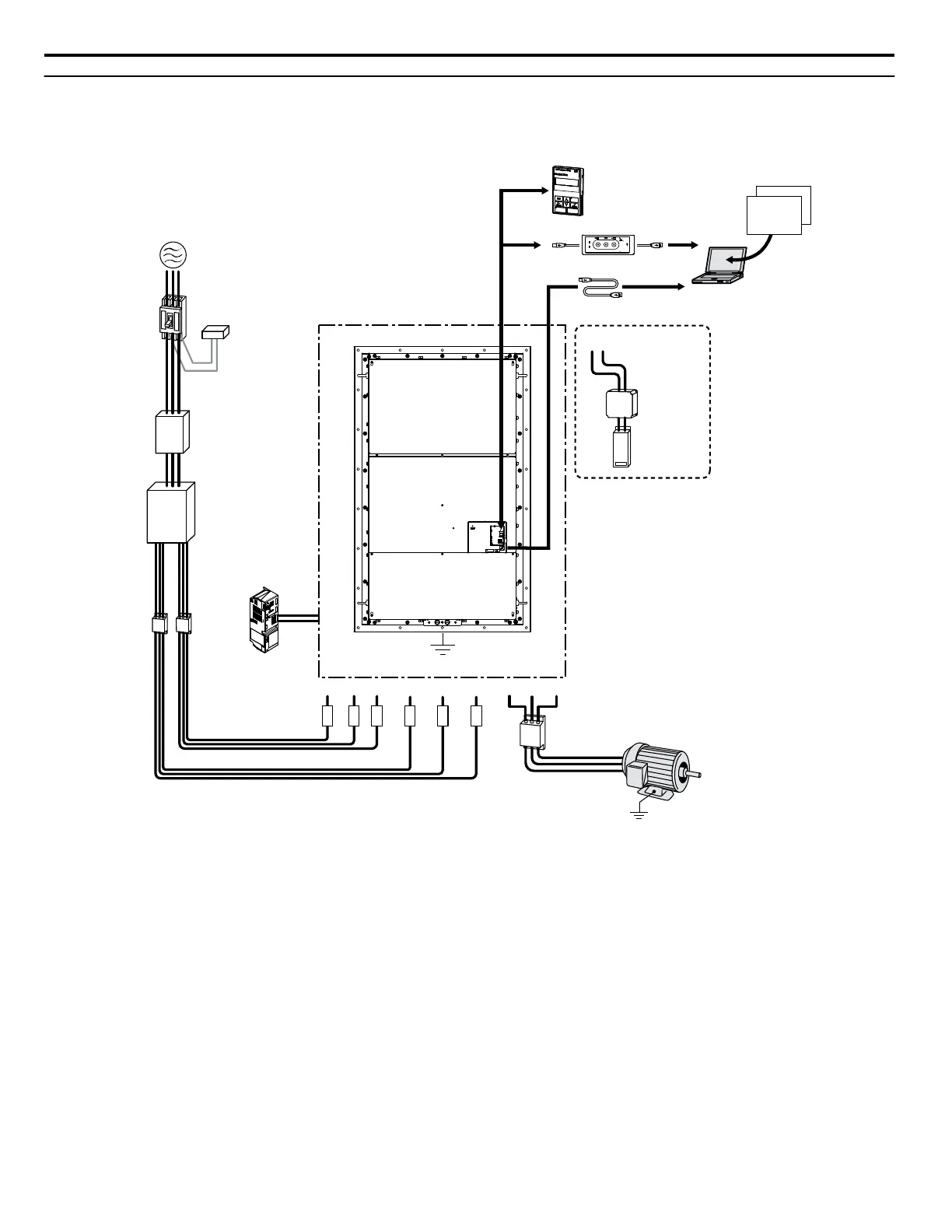

Figure 16 illustrates how to configure the drive and motor to operate with various peripheral devices.
Refer to the specific manual for the devices shown below for more detailed installation instructions.
Copy Verify
Read
LOCK
YASKAWA
JVOP-181
USB Copy Unit
COM ERR
PC
DriveWizard X
Engineering Software Tools
DriveWorksEZ
Power
Supply
Line
Breaker
(MCCB)
or
Leakage
Breaker
Surge
Absorber
Input Side
Noise Filter
Braking Unit
(CDBR Type)
Braking
Resistor Unit
(LKEB Type)
Output Side
Noise Filter
Drive
Ground
+3 -
Motor
U/T1 V/T2 W/T3R1/L11
24 V Control
Power Supply
Unit
S1/L21 T1/L31R/L1
Fuse
S/L2 T/L3
Ground
USB Copy Unit
USB Type-AB Cable
(sold separately)
Operator
6-Phase/12-Pulse
Isolation Transformer
or
Hybrid 6-Phase
Topology
3-Phase Line Monitor
<1>
Figure 16 Connecting Peripheral Devices
<1> With each of the output windings phase-shifted by 30 electrical degrees.
Note: If the drive is set to trigger a fault output when the fault restart function is activated (L5-02 = 1), then a sequence to interrupt power when
a fault occurs will turn off the power to the drive while the drive attempts to restart. The default setting for L5-02 is 0 (fault output active
during restart).
6 Drive Options and Peripheral Devices
32
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual

YASKAWA P1000 Series Specifications

General

Series	P1000
Voltage Classes	200 V, 400 V, 600 V
Frequency	50/60 Hz
Humidity	95% RH or less (non-condensing)
Type	AC Drive
Control Method	V/f Control
Ambient Temperature	-10 to +50°C (14 to 122°F)
Communication Options	Modbus RTU
Protection Features	Overvoltage, Undervoltage
Overload Capacity	150% for 60 seconds
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Cooling Method	Fan cooled
Horsepower Range	0.5 to 500 HP
