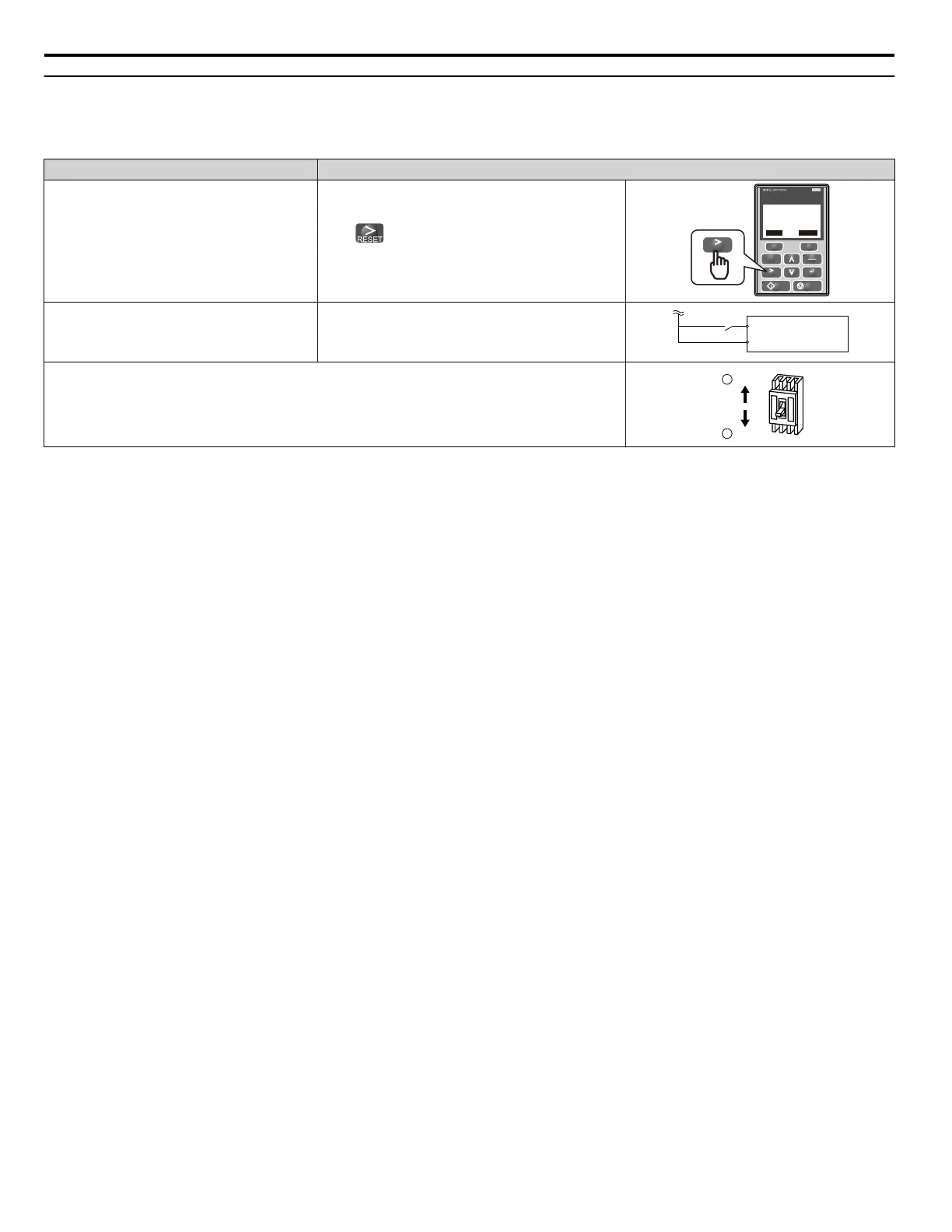

Fault Reset Methods
When a fault occurs, the cause of the fault must be removed and the drive must be restarted. The table below lists the different
ways to restart the drive.
After the Fault Occurs Procedure
Fix the cause of the fault, restart the drive, and
reset the fault
Press on the digital operator when the error code
is displayed.
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
RESET
- MODE -
oC
Overcurrent
DRV
FWD
RESET
ALM
Resetting via Fault Reset Digital Input S4
Close then open the fault signal digital input via
terminal S4. S4 is set for “Fault Reset” as default
(H1-04 = 14).
Fault Reset Switch
Drive
S4 Fault Reset Digital Input
SC Digital Input Common
Turn off the main power supply if the above methods do not reset the fault. Reapply power after the
digital operator display has turned off.
ON
OFF
2
1
Note: If the Run command is present, the drive will disregard any attempts to reset the fault. Remove the Run command before attempting to clear
a fault situation.
5 Troubleshooting
30
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual

YASKAWA P1000 Series Specifications

General

Series	P1000
Voltage Classes	200 V, 400 V, 600 V
Frequency	50/60 Hz
Humidity	95% RH or less (non-condensing)
Type	AC Drive
Control Method	V/f Control
Ambient Temperature	-10 to +50°C (14 to 122°F)
Communication Options	Modbus RTU
Protection Features	Overvoltage, Undervoltage
Overload Capacity	150% for 60 seconds
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Cooling Method	Fan cooled
Horsepower Range	0.5 to 500 HP
