5 Installation Procedure
26 YASKAWA ELECTRIC SIEP C730600 70B V1000 Option SI-EP3/V Technical Manual
 Communication Cable Specifications
Use only PROFINET dedicated communication cable; the Yaskawa warranty does not cover other cable types.
The use of CAT5e or equivalent Shielded Twisted Pair (STP) cable is recommended.

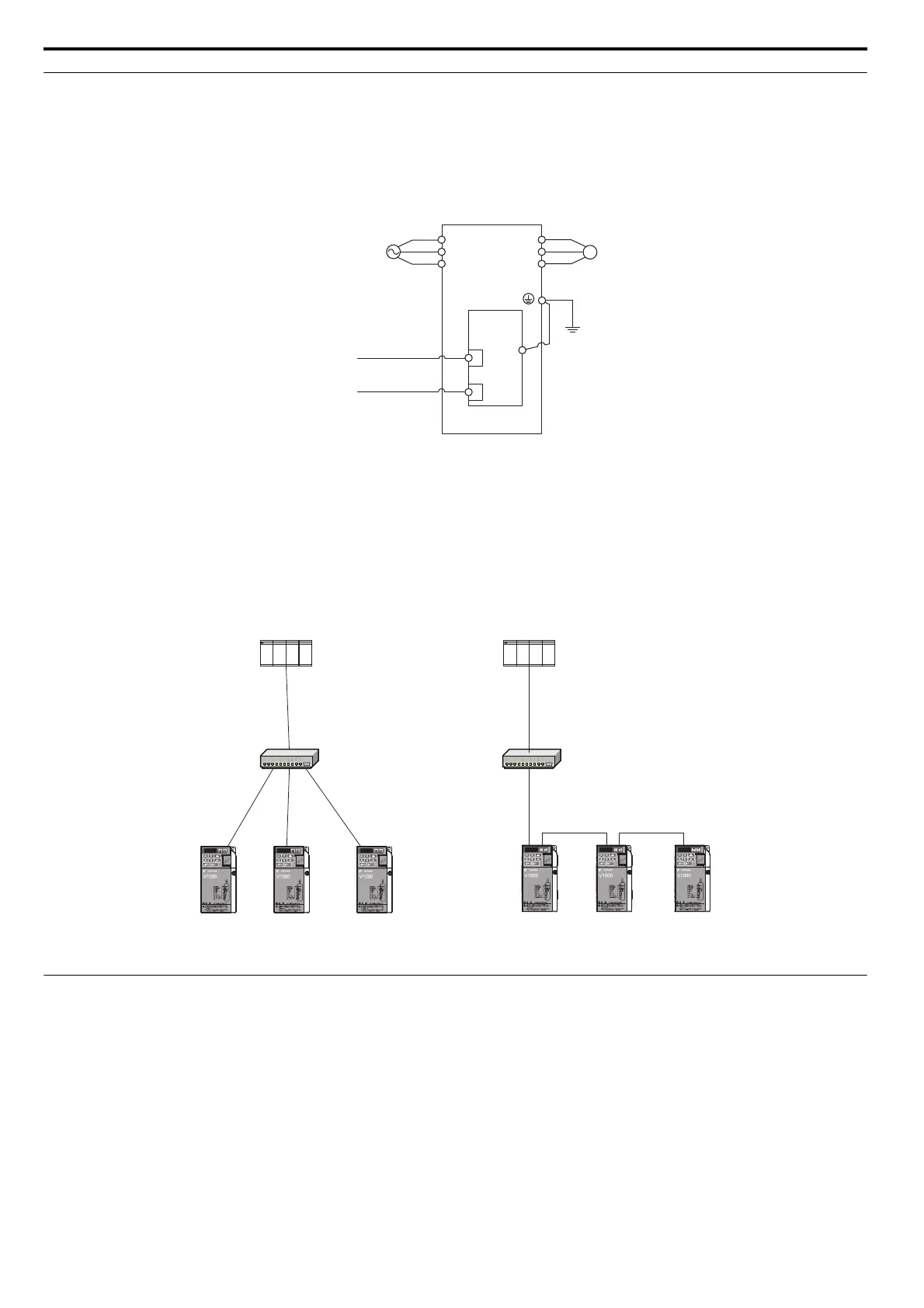

 Option Connection Diagram
Figure 32 Wiring Diagram
 Communication Cable Topology
The option modular connector CN1 port 1 and port 2 act as a switch to allow for flexibility in cabling topology. For
example, a traditional star network topology may be employed by using a single port on the option board. Alternatively,
a daisy-chained approach may be employed by using both option modular connector ports. This second approach reduces
the requirements of PROFINET switch ports.
Figure 32
Figure 33 Topology Options
 GSD Files
To facilitate network implementation, obtain a GSD file from one of the following websites depending on your region:
US: http://www.yaskawa.com
Europe: http://www.yaskawa.eu.com
Japan: http://e-mechatronics.com
Other areas: Check the back cover of these manuals.
<1> Connect the provided ground wire during installation.
V1000
M
U/T1
V/T2
W/T3
R/L1
S/L2
T/L3
SI-EP3/V
PROFINET
Option
FE
<1>
PROFINET Master
PROFINET Cable
MotorPower
PROFINET Cable
V1000
PLC
SWITCH
V1000 V1000 V1000
V1000 V1000 V1000
PLC
STOP STOP STOP
STOP STOP STOP
SWITCH
V1000
