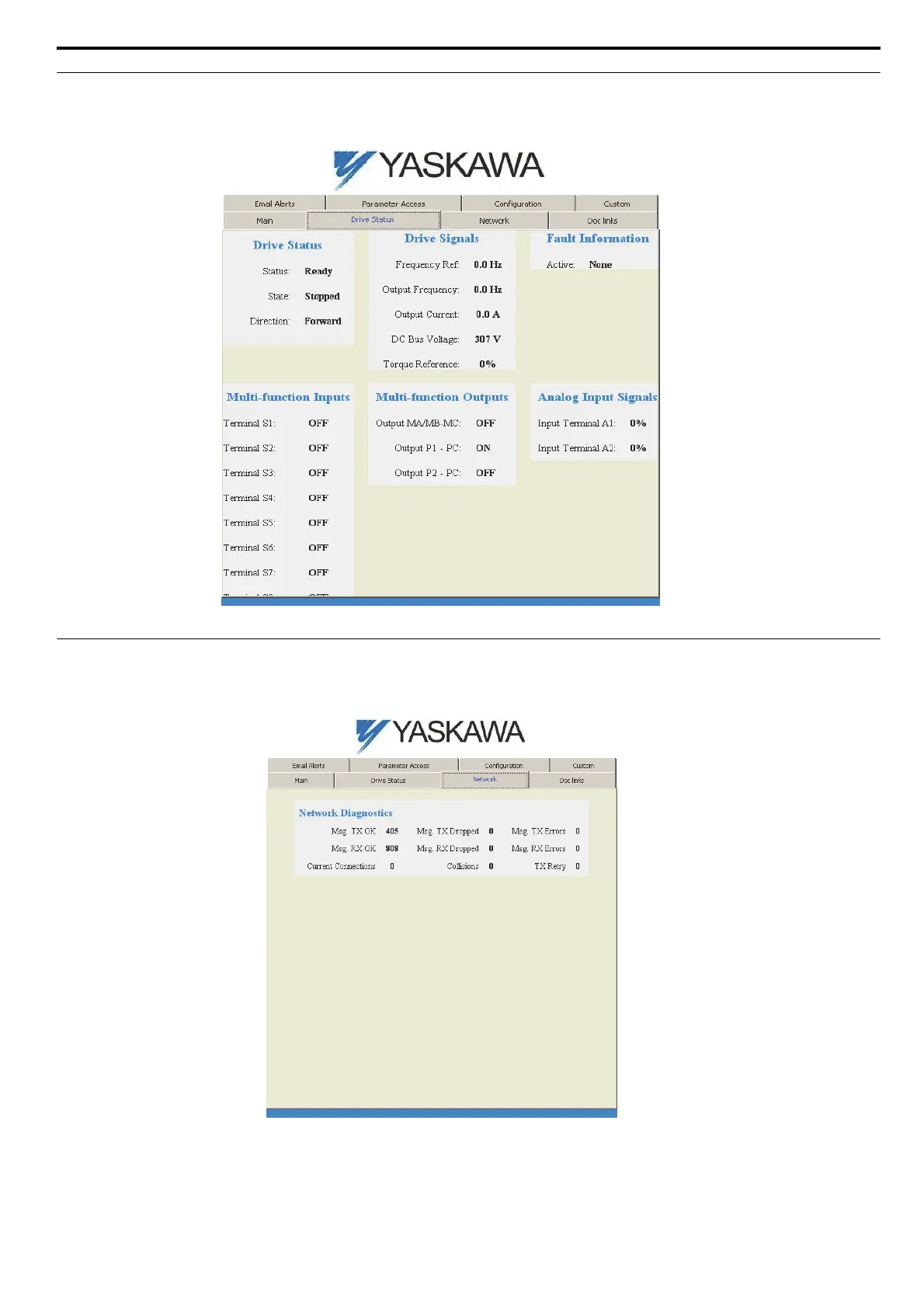

 Drive Status Tab
The Drive Status tab shows basic I/O information and drive state information.
Figure 36
Figure 37 Drive Status Tab View
 Network Tab
The Network tab shows the status of the option network traffic and the status of open I/O connections.
Figure 37
Figure 38 Network Tab View
