Table 32 Network Monitor Descriptions
Note: Cumulative counters are reset when the power supply is cycled.
Doc Links Tab
The Doc links tab contains links to the option documentation on the Yaskawa website.
Figure 38

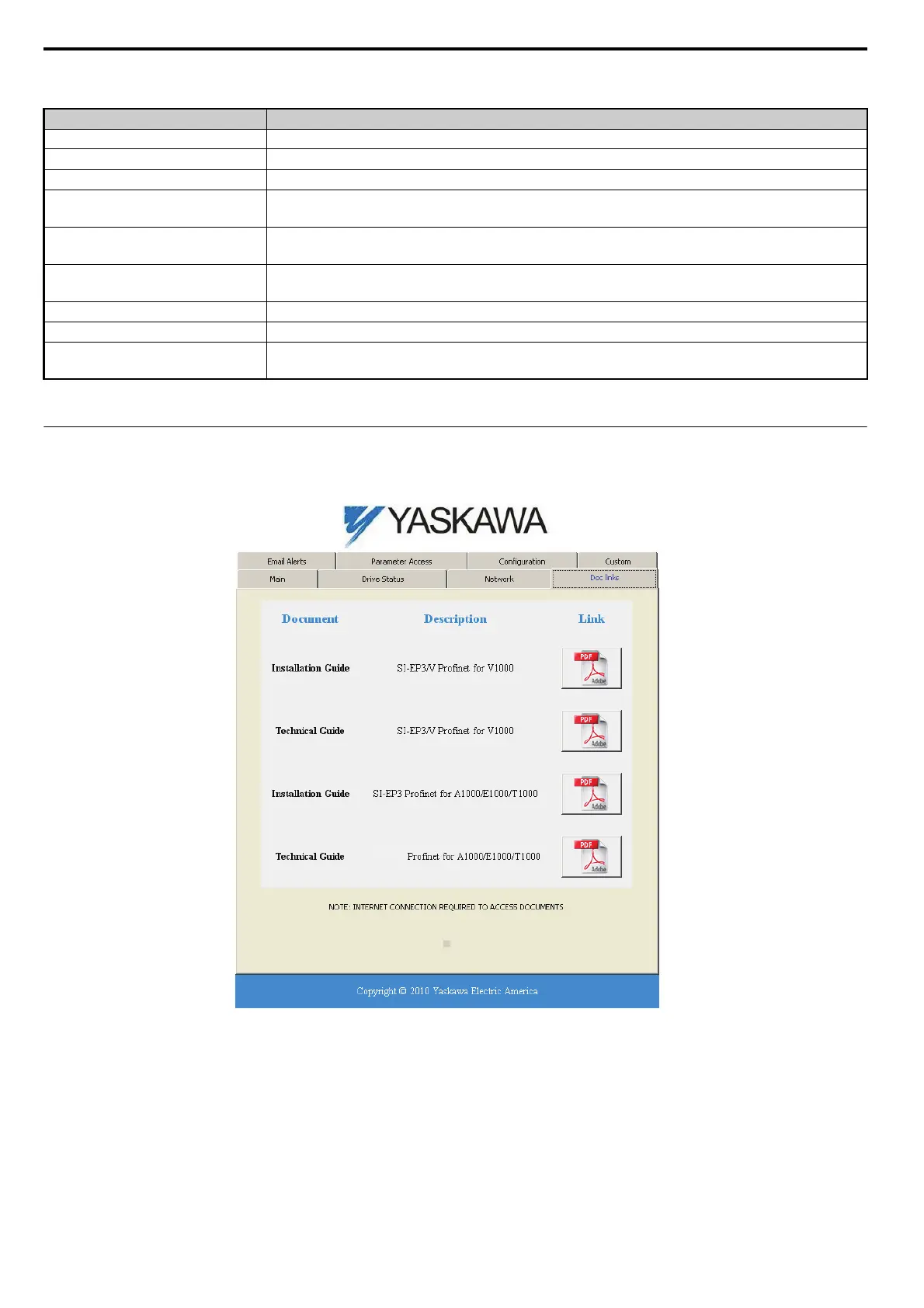

Figure 39 Doc Links Tab View
Network Monitor Explanation
Msg Tx OK Cumulative number of messages transmit successfully from SI-EP3/V.
Msg Rx OK Cumulative number of messages received successfully to SI-EP3/V.
Current Connections Current number of open connections.
Msg Tx Dropped
Cumulative number of messages dropped due to output network buffer being full and unable to hold the
new message.
Msg Rx Dropped
Cumulative number of messages dropped due to input network buffer being full and unable to hold the
new message.
Collisions
Cumulative number of collisions (half duplex only) reported by the MAC/PHY (Media Access Control/
Physical Layer).
Msg Tx Errors Cumulative number of transmit errors reported by the MAC/PHY (Media Access Control/Physical Layer).
Msg Rx Errors Cumulative number of receive errors reported by the MAC/PHY (Media Access Control/Physical Layer).
Tx Retry
Cumulative number of retransmits due to busy medium reported by the MAC/PHY (Media Access
Control/Physical Layer).
