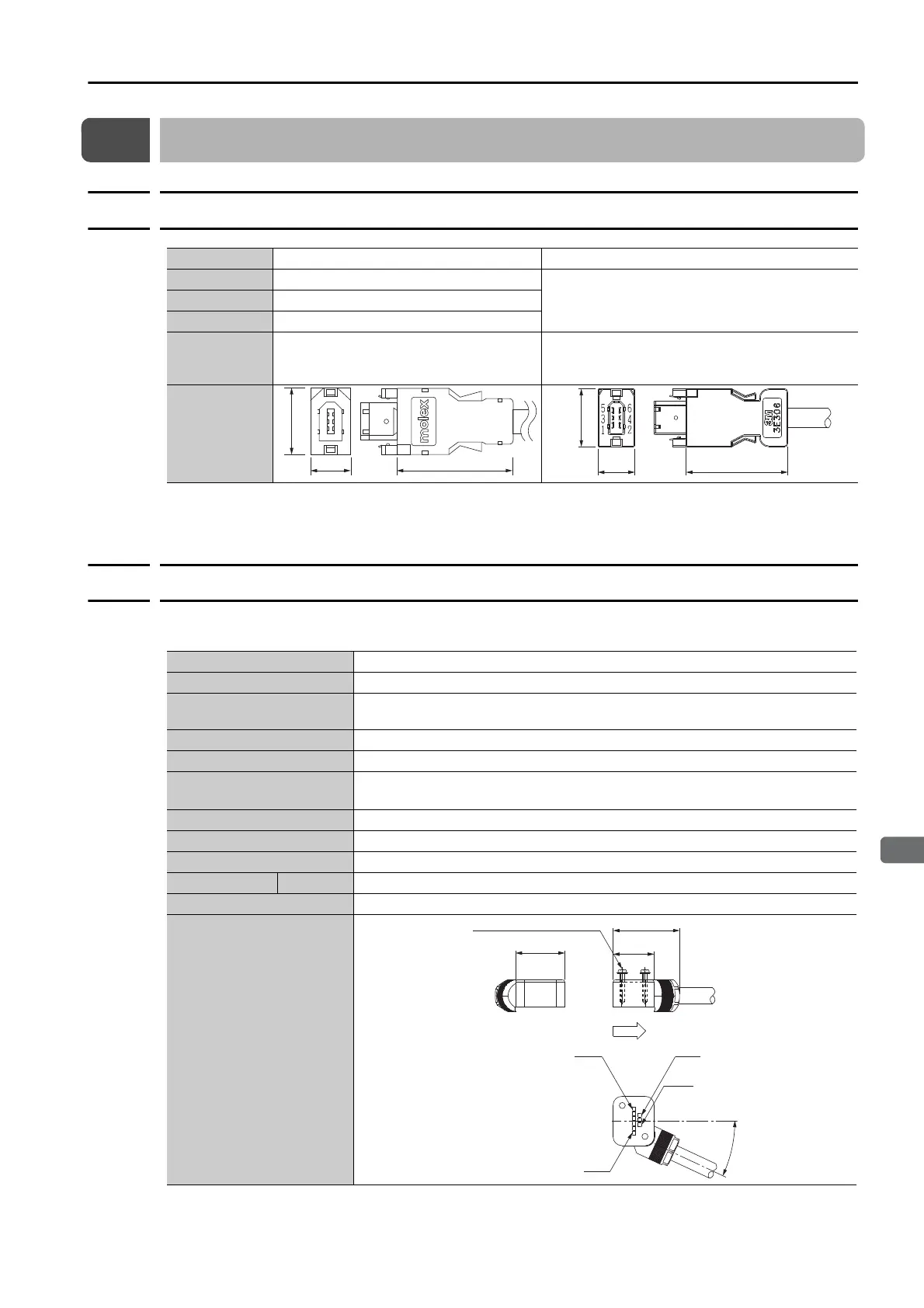

5.6 User-Assembled Wiring Materials for Encoder Cables
5.6.1 SERVOPACK Connector Kits
5-15
5
Cables and User-Assembled Wiring Materials for SGM7P Rotary Servomotors
5.6 User-Assembled Wiring Materials for Encoder Cables
5.6.1 SERVOPACK Connector Kits
* This item is not available from Yaskawa Controls Co., Ltd. Order it directly from 3M Japan Limited.
Note: Cables are not included. Purchase them separately.
5.6.2 Encoder Connector Kits
 Servomotor Connectors
* A Crimping Tool is required. When using other wire sizes, contact the connector manufacturer for crimping tools.
Note: Cables are not included. Purchase them separately.
Type Standard Connector Kit Compatible Connector Kit*
Inquiries Yaskawa Controls Co., Ltd.
3M Japan LimitedManufacturer Molex Incorporated
Order Number JZSP-CMP9-1-E
Specifications
55100-0670 (soldered)
Product specifications: PS-54280
Receptacle: 3E206-0100 KV (soldered)
Shell Kit: 3E306-3200-008
Product specifications: JNPS-1042 and JNPS-1043
External
Dimensions
[mm]
12
3 4
56
(19)
(12)
(33)
(33)
(12)
(19)
Order Number JZSP-C7P9-1-E
Manufacturer Molex Incorporated
Components
504678-0070
Loose Connectors: 56161-8181 (crimped), Reeled: 56161-8081 (crimped)
Applicable Wire Sizes AWG22 to AWG26
Applicable Cable Diameter 6.3 mm to 7.7 mm
Outer Diameter of
Insulating Sheath
1.05 mm to 1.4 mm
Mounting Screws M2 pan-head screws (two)
Application Specifications AS-504682
Crimping Specifications CS-56161
Crimping Tool* Hand Tool 57175-5000
Shell Caulking Tool 57331-5100
External Dimensions
[mm]
2 × M2 pan-head screws
(27.5)
20.5
17
Motor mounting
surface
Pin 6
Pin 1
25°
Pin 9
Pin 7
