8.4 Encoder Cables of 20 m or Less
8.4.4 SGMCS Encoder Cables
8
Cables and User-Assembled Wiring Materials for Direct Drive Servomotors
8-27
8.4.4
SGMCS Encoder Cables
You can use the cables in the following table for either SGMCS 20-bit absolute encoders (with-
out multiturn data) or 20-bit incremental encoders.

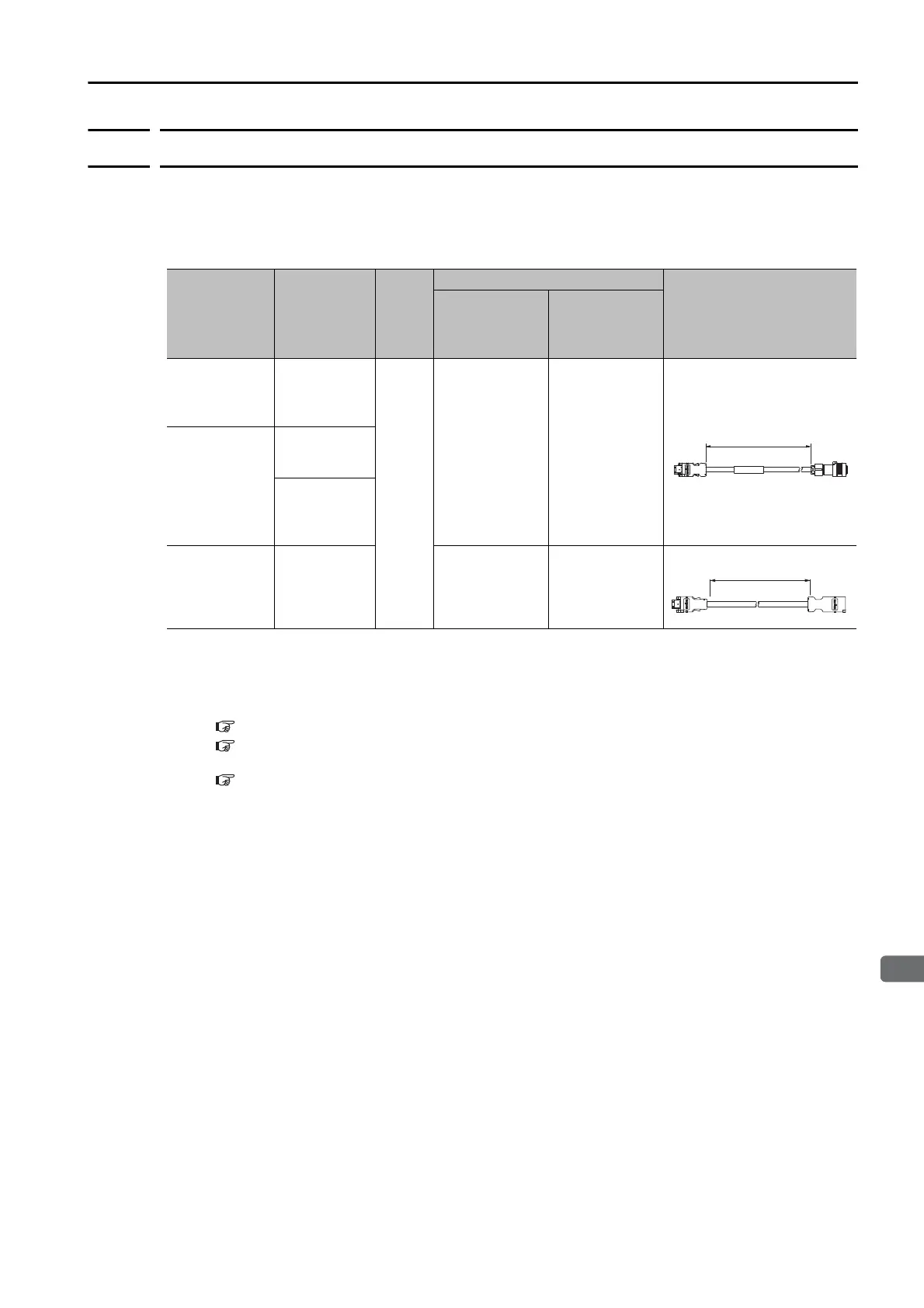

Selection Table
*1. Replace the boxes () in the order number with the cable length (03, 05, 10, 15, or 20).
*2. Use Flexible Cables for moving parts of machines, such as robots.
*3. The recommended bending radius (R) is 68 mm or larger.
Note: 1. Refer to the following section for information on connector specifications, manufacturers, and order num-
bers.
8.6.1 SERVOPACK Connector Kits on page 8-39
8.6.2 Encoder Connector Kits on page 8-39
2. Refer to the following section for information on wiring material specifications and order numbers.
8.6.3 Cables without Connectors on page 8-40
Servomotor
Model
Flange Speci-
fication Code
(6th Digit in
the Model
Number)
Length
(L)
Order Number
*1
Appearance
Standard Cable
Flexible
Cable
*2, *3
SGMCS-B
SGMCS-
C
SGMCS-
D
SGMCS-
E
1
Non-load side
installation
3 m,
5 m,
10 m,
15 m,
and
20 m
JZSP-CMP60-
-E
JZSP-CSP60-
-E
SGMCS-
M
SGMCS-
N
1
Load side
installation
3
Non-load side
installation
SGMCS-
B
SGMCS-
C
SGMCS-
D
SGMCS-
E
4
Non-load side
installation
(with cable on
side)
JZSP-CMP00-
-E
JZSP-CMP10-
-E
L
SERVOPACK end Encoder end
L
SERVOPACK end
Encoder end
To Next Page
