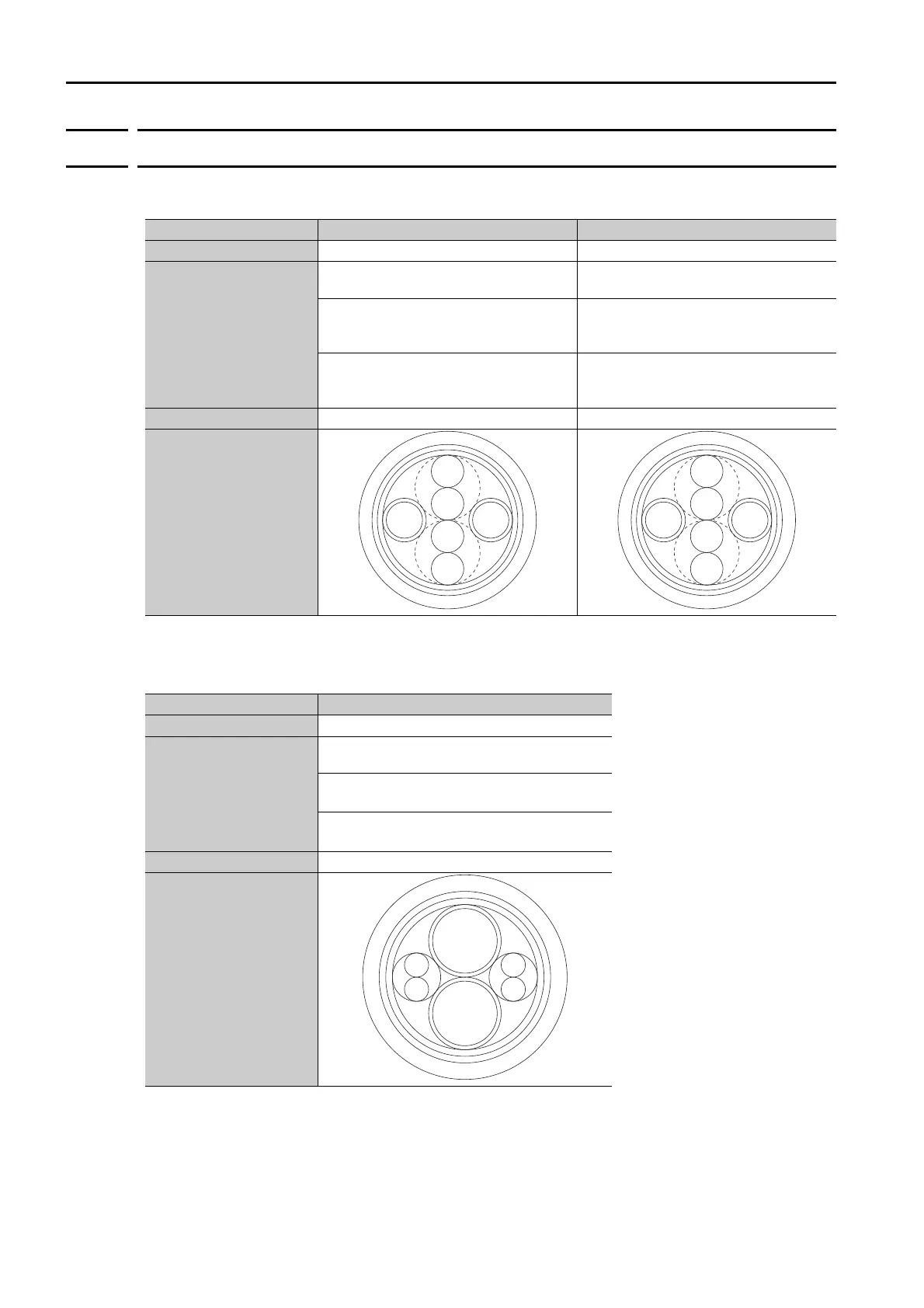

8.6 User-Assembled Wiring Materials for Encoder Cables
8.6.3 Cables without Connectors
8-40
8.6.3 Cables without Connectors
Encoder Cables of 20 m or Less
* Replace the boxes () in the order number with the cable length (05, 10, 15, or 20).
Relay Encoder Cable of 30 m to 50 m
* Replace the boxes () in the order number with the cable length (30, 40, or 50).
Item Standard Cable Flexible Cable
Order Number* JZSP-CMP09--E JZSP-CSP39--E
Specifications
UL20276 (rated temperature: 80°C)
AWG22 × 2C + AWG24 × 2P
UL20276 (rated temperature: 80°C)
AWG22 × 2C + AWG24 × 2P
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.15 mm
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.35 mm
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath:
1.09 mm
AWG24 (0.20 mm
2
)
Outer diameter of insulating sheath:
1.21 mm
Finished Diameter 6.5 mm 6.8 mm
Internal Structure and
Lead Colors
Item Standard Cable
Order Number* JZSP-CMP19--E
Specifications
UL20276 (rated temperature: 80°C)
AWG16 × 2C + AWG26 × 2P
AWG16 (1.31 mm
2
)
Outer diameter of insulating sheath: 2.0 mm
AWG26 (0.13 mm
2
)
Outer diameter of insulating sheath: 0.91 mm
Finished Diameter 6.8 mm
Internal Structure and
Lead Colors
Light blue
/white
Orange
Orange
/white
Light
blue
Red
Black
Black
/light blue
Red
/light blue
Black
/pink
Red
/pink
Orange
Light
green
Red
Orange
Black
Light
blue
Orange
/white
Light blue
/white
