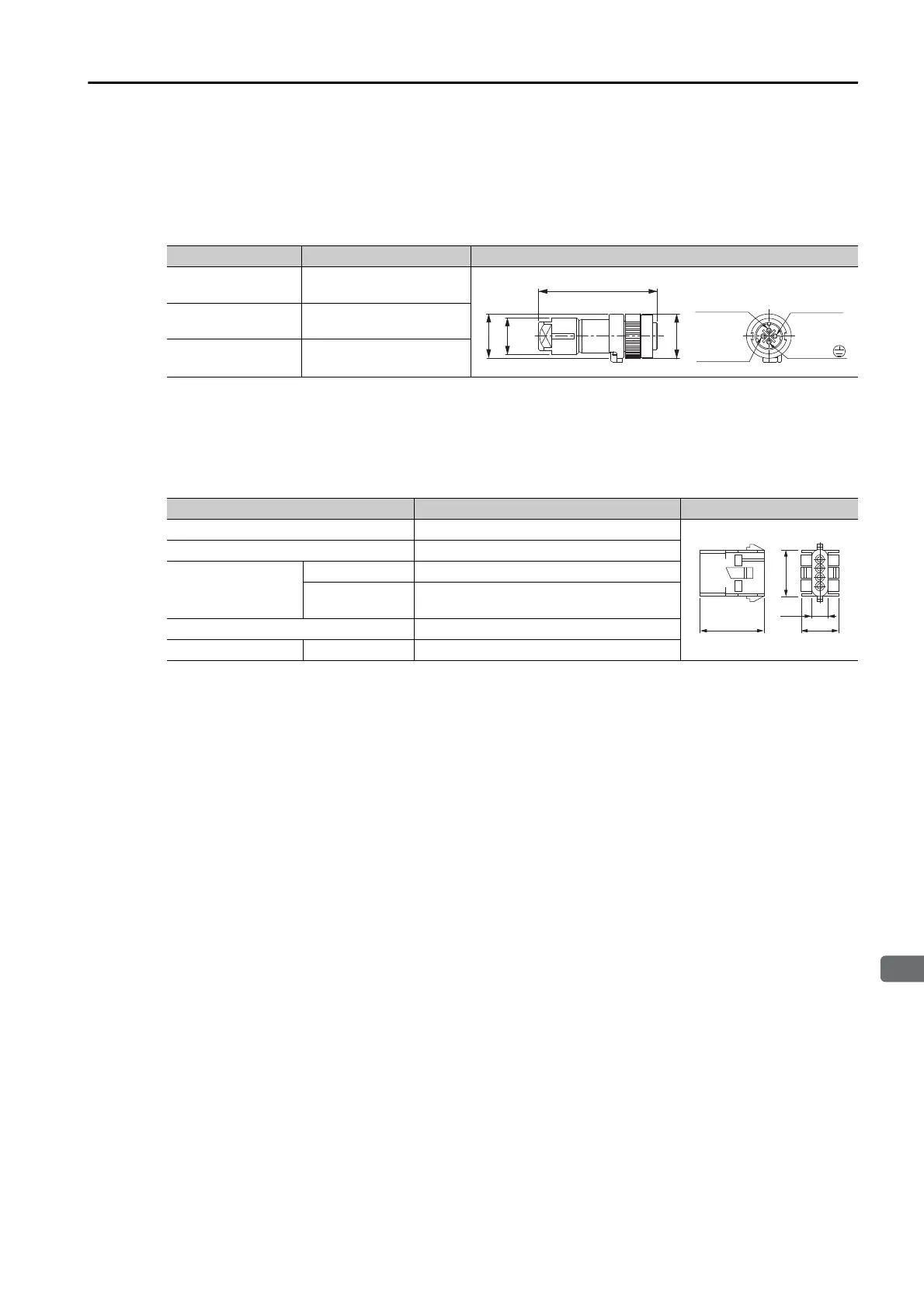

8.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
8.3.1 Servomotor Connector Kits
8
Cables and User-Assembled Wiring Materials for Direct Drive Servomotors
8-13
SGM7E Servomotors, SGM7F-A to -D Servomotors,
SGMCV Servomotors, and SGMCS Small-Capacity, Core-
less Servomotor
Connectors for Flange Specification 1 (for Standard or Flexible Cables)
Note: 1. This item is not available from Yaskawa Controls Co., Ltd. Order it directly from Japan Aviation Electronics
Industry, Ltd.
2. Cables are not included. Purchase them separately.
Connector Kits for Flange Specification 4
(for Standard or Flexible Cables)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
Item Description External Dimensions [mm]
Manufacturer
Japan Aviation Electron-
ics Industry, Ltd.
Order Number JN1DS04FK1 (soldered)
Applicable Cable
Diameter
5.7 mm to 7.3 mm
Item Description External Dimensions [mm]
Manufacturer Tyco Electronics Japan G.K.
Order Number JZSP-CMM9-3-E
Components
Cap 350780-1
Socket
Reeled Sockets: 350570-3,
Loose Sockets: 350689-3
Applicable Wire Sizes AWG18 to AWG24
Crimping Tool* Hand Tool 91510-1
19
15.5
18.8
51.5 max.
Pin 3
Pin 1
Pin 2
Pin 4
FG
To Next Page
