Ratings and Characteristics
SERVOPACK
Model
Applicable
Servomotor
Model
Power Supply
Capacity per
SERVOPACK
*1 (kVA)
MCCB or
Fuse Power
Supply
Capacity*2 (A)
Applicable
Noise Filter
(Reference
Filter
Structure)
Recommended
Noise Filter*3
Power ON/
OFF Contactor
SG DB-05AN
SGMG-03ADB
0.65 5
(Applicable)
c---r---)
(Not applicable)
'-1\07A—°
LF-310 (10 A) HI-15E5 (30 A)
SGMG-05ADA 1.1
SGMP-04A
SGM-04A
SGDB-10AN
SGMG-06ADB
1.5
8 LF-315 (15 A)
SGMG-09ADA
2.0
SGMG-09ADB
SGMS-10ADA
SGMP-08A
SGM-08A
SGDB-15AN
SGMG-13ADA 2.5
10
SGMG-12ADB
SGMS-15ADA
SGMP-15A
SGDB-20AN
SGMG-20ADA
4.0
12
LF-320 (20 A) HI-18E (35 A)
SGMG-20ADB
SGMS-20ADA
SGDB-30AN
SGMG-30ADA
5.0
18
LF-330 (30 A)
SGMG-30ADB
SGMS-30ADA
SGMD-22ADA
SGDB-50AN
SGMD-32ADA 7.0
24
LF-340 (40 A)
SGMG-44ADA
SGMG-44ADB
SGMS-40ADA
SGMD-40ADA
7.5
28
HI-25E (50 A)
SGMS-50ADA
SGDB-60AN
SGMG-55ADA
12.5 32
LF-350 (50 A)
SGMG-60ADA
SGDB-75AN
SGMG-75A 15.0 41
LF-360 (60 A)
HI-30E (65 A)
SGDB-1AAN
SGMG-1AA 19.0
60
LF-380K (80 A) HI-35E (65 A)
SGDB-1 EAN
SGMG-1EA
30.0
80 FN258-100 HI-50E (100 A)

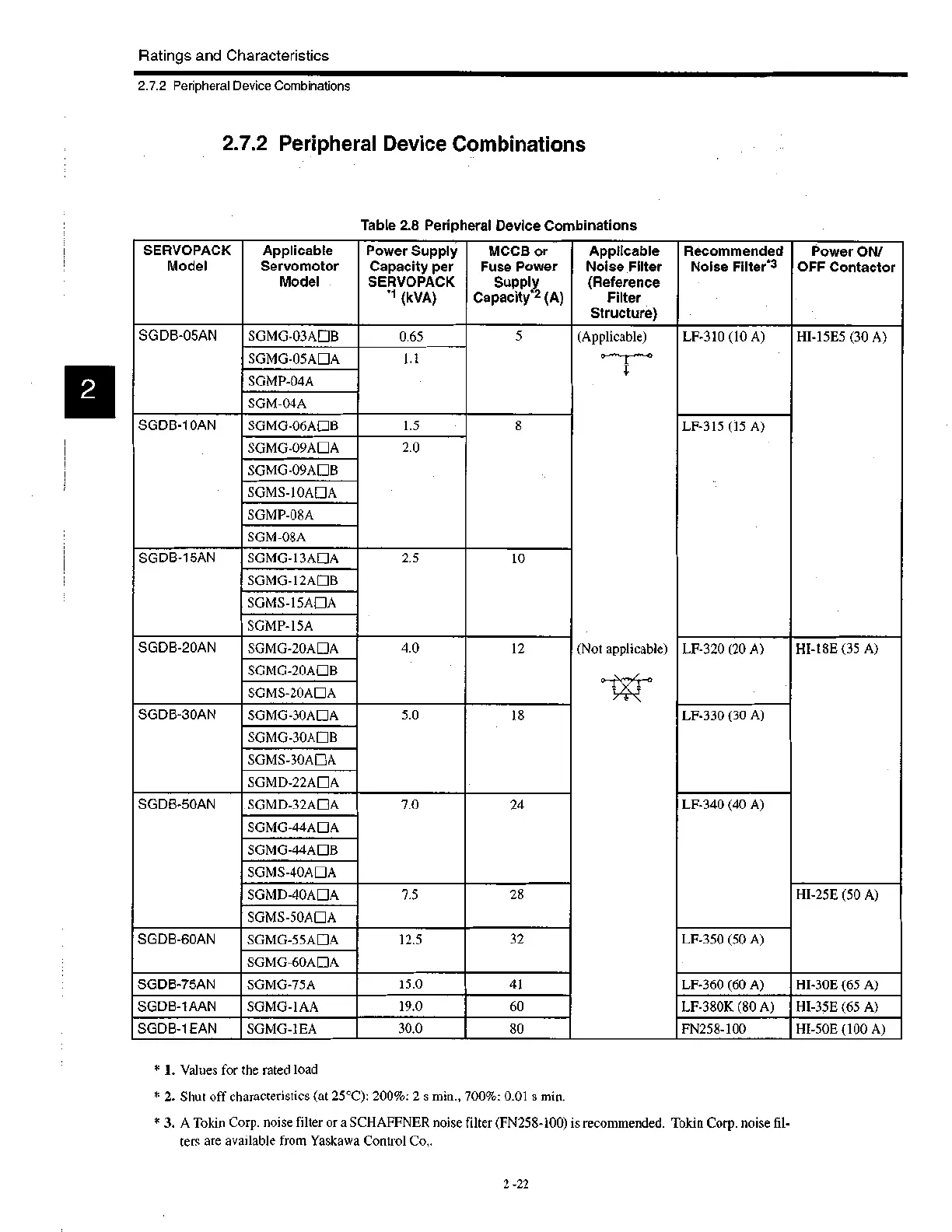

2.7.2 Peripheral Device Combinations
2.7.2 Peripheral Device Combinations
Table 2.8 Peripheral Device Combinations
* 1. Values for the rated load
* 2. Shut off characteristics (at 25°C): 200%: 2 s min., 700%: 0.01 s min.
* 3. A Tokin Corp. noise filter or a SCHAFFNER noise filter (FN258-100) is recommended. Tokin Corp. noise fil-
ters are available from Yaskawa Control Co,.
2 -22
