YASKAWA V1000 Series

n
Optional Gasket or Sealant (Procedures 1 to 4)
Note: Gasket or sealant is customer supplied.
If an undesirable air gap exists between Attachment A, B and the drive, attach a CR-Series or EPDM-Series gasket to the
mounting panel surface or apply sealant to fill the gap. Refer to Figure 7 for sealant placement. Refer to Figure A, B, C, or D
for gasket dimensions for your specific model.
Gasket type: CR-Series or EPDM-Series made of foam rubber, approximately 2 mm in thick.
Sealant
Sealant

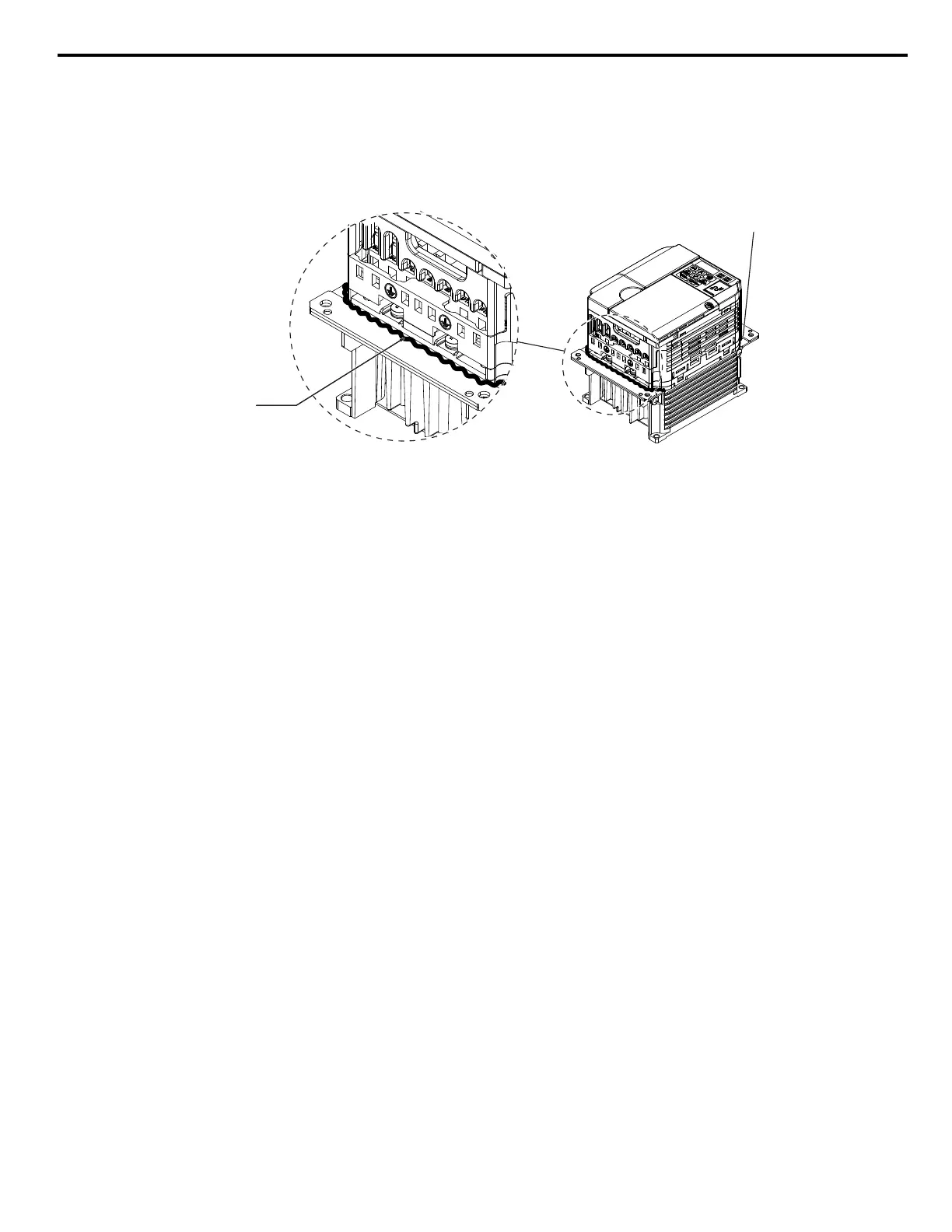

Figure 7 Sealant Placement
5 Installation Procedure by Drive Model
YASKAWA V1000/J1000 AC Drive External Heatsink Kit Option Manual EZZ020568
17
