YASKAWA V1000 Series

a.

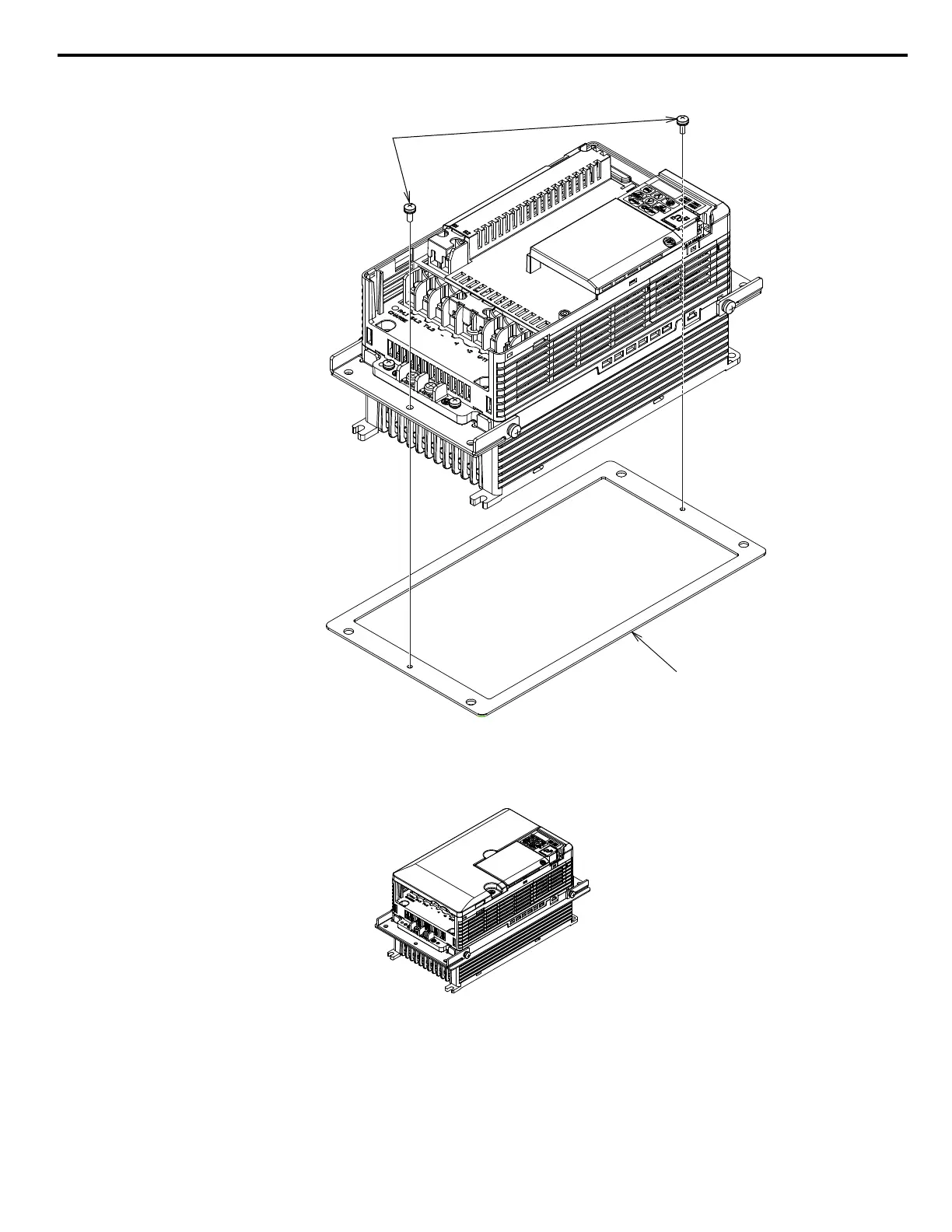

Install Attachment 3 to the mounting holes of Attachment 1 and Attachment 2 using M4 x10 pan-head
screws.
Attachment 3
M4 x 10 Pan-head Screws (x2)
Figure 10 Attachment 3
4.
Complete the assembly.
a.
Install the terminal cover.
Figure 11 Completed Assembly
5 Installation Procedure by Drive Model
YASKAWA V1000/J1000 AC Drive External Heatsink Kit Option Manual EZZ020568
19
