5 Installation Procedure
26 YASKAWA ELECTRIC TOBP C730600 60C V1000 Option SI-EN3/V Installation Manual
9. Reattach the bottom cover. Keep the ground wire inside of the bottom cover when
reattaching.

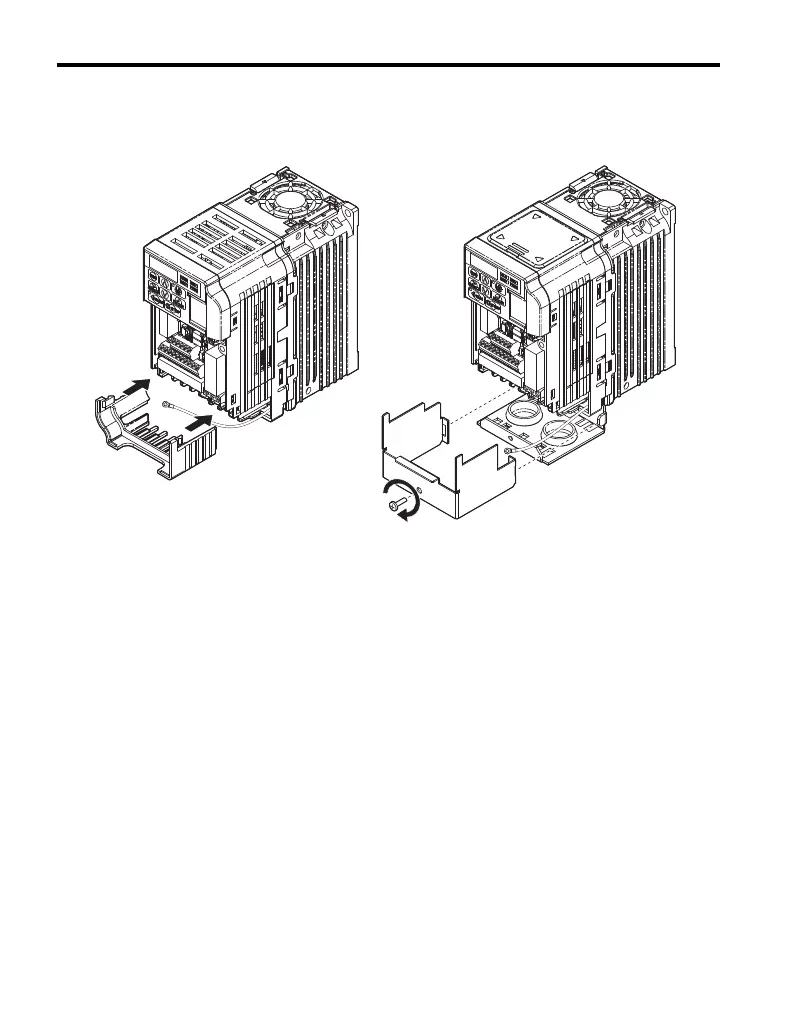

Figure 12
Figure 12 Reattach the Bottom Cover
10. On models CIMR-VBA0006 to BA0018, 2A0008 to 2A0069, and
4A0001 to 4A0038, reattach the terminal cover.
Refer to Figure 13 and Figure 14 for drive models CIMR-VBA0006 to
BA0018, 2A0008 to 2A0020, and 4A0001 to 4A0011, which require
routing the ground wire through the provided notch when reinstalling the terminal
cover.
IP20/Open-Chassis IP20/NEMA Type 1 Enclosure
V1000
