YASKAWA VARISPEED-656RC5

56
When running the power regenerative unit after using digital operator,
press the MENU Key to enter the operation mode and then press the
DATA/ENTER Key from the operation mode display to bring up the
monitor display. Run commands can’t be received from any other dis-
play. (Monitor display in the operation mode appears when the power is
turned ON.)
J
Operations in Operation Mode

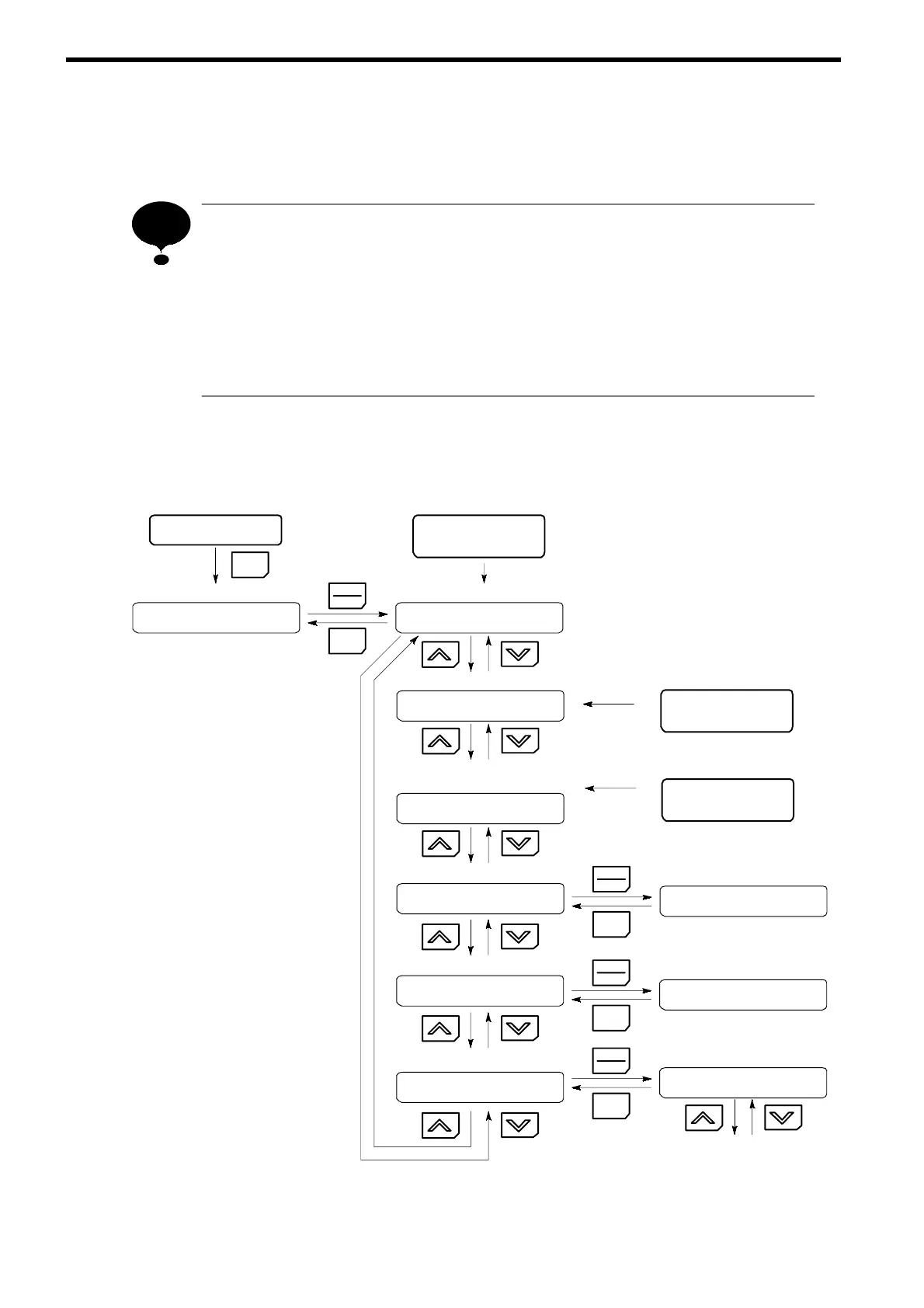

Key operations in operation mode are shown in Fig. A-4.
All modes/constants
status
::
Main Menu
::
Operation
Output Current
U1-05 = 0.0 A
Ac Frequency
U1-08 = 60.00 Hz
Function U2
Fault Trace
Power ON
(When o1-02=2 )
DC Bus Voltage
U1-02 = 300 VDC
Current Fault
None
MENU
ESC
DATA
ENTER
ESC
DATA
ENTER
Operation Mode
Output current on power side
Power supply frequency
(can be changed at constant o1-01)
Function selection U2 (fault trace)
DC Bus Voltage display
Contents of fault trace
Function U3
Fault History
Function U1
Monitor
Last Fault
None
DC Bus Voltage
U1-02 = 300 VDC
ESC
DATA
ENTER
ESC
DATA
ENTER
Function selection U3 (fault history)
Function selection U1 (Monitor)
Contents of fault history
Various monitors
Power ON
(When o1-02=3)
Power ON
(When o1-02=4)
Fig. A-4 Operations in Operation Mode
NOTE
