Getting Started
19

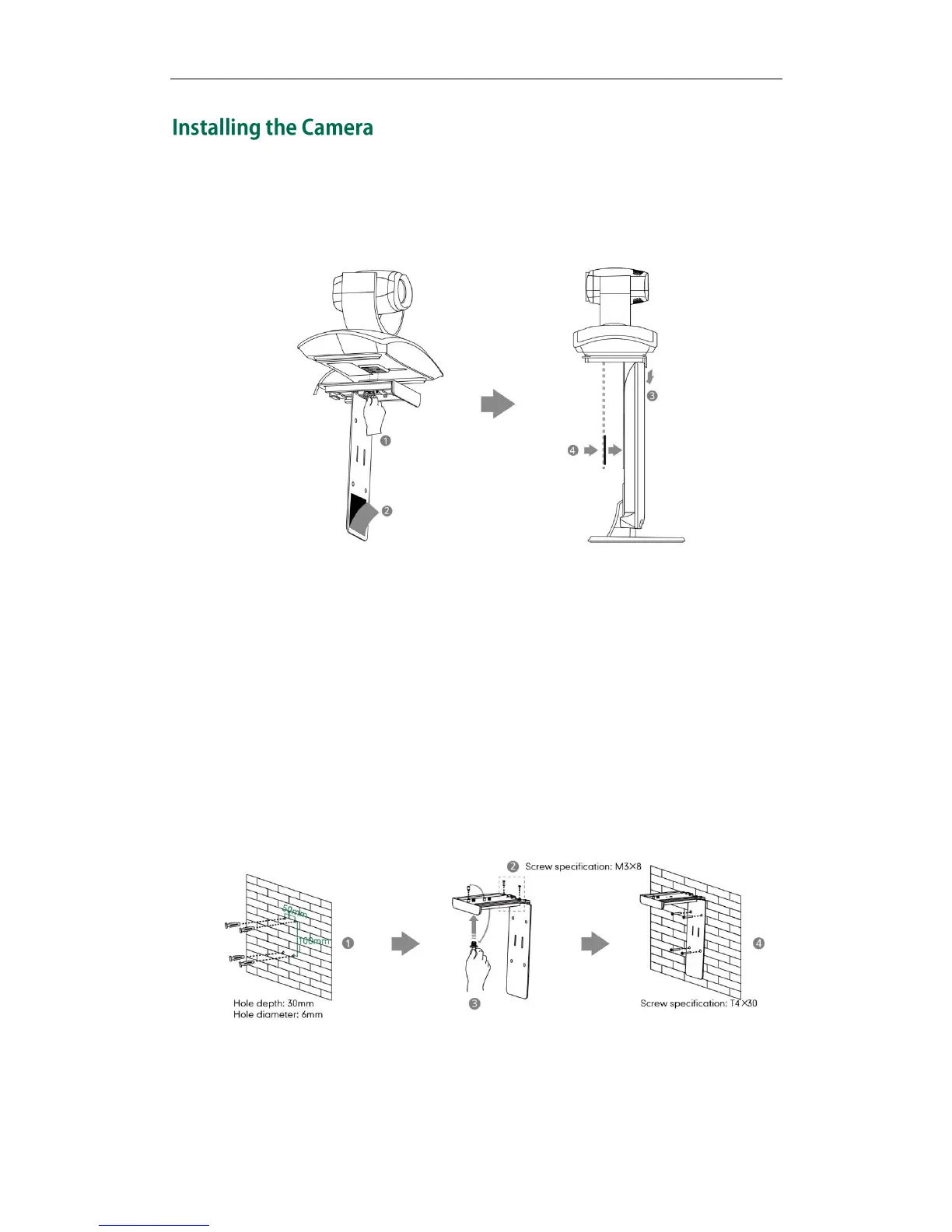

You can mount the camera on to the TV or a wall based on your actual needs.
a) Mounting the Camera on the TV
When your TV is less than 120 mm thick, you can mount the camera on to your TV.
Do the following:
1. Lock the camera to the L-bracket.
2. Tear out the sticker on the L-bracket.
3. Put the L-bracket on the top of the TV.
4. Adjust the L-bracket to ensure close adhesion to the back of the TV.
b) Mounting the camera on to a wall
You can also mount the camera on to a wall. The recommended height for camera
positioning is 1.5m-1.8m above the ground.
Do the following:
1. Punch holes into the wall and then insert the expansion bolts.
Installation location for the expansion bolts and punching requirement are shown
above.
To Next Page
