TA400/800 User Manual
58/64
Note: the HTTP URL should be a BIN file download link.
Step2. Click ―Start‖ to upgrade.

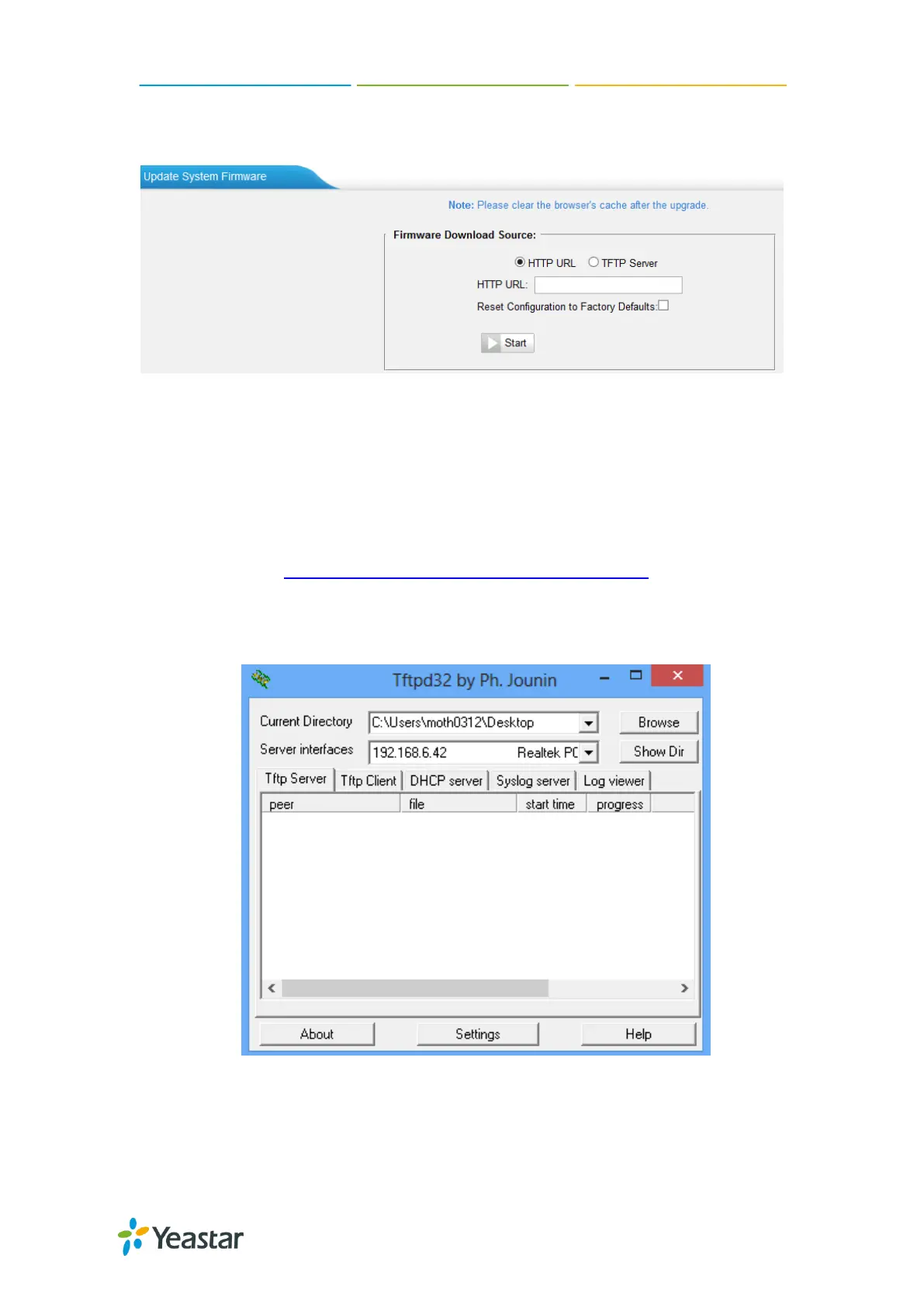

Figure 11-8 Upgrade through HTTP
Upgrade through TFTP
Step1.Download firmware file from Yeastar website.
Step2. Create a tftp Server (For example, tftpd on Windows).
1) Install tftpd32 software on computer.
Download link: http://tftpd32.jounin.net/tftpd32_download.html
2) Configure tftpd32.
On option ―Current Directory‖, click ―Browse‖ button, choose the firmware file
(BIN file) upgraded patch.
Figure 11-9 Configure Tftpd32
Step3.Logon the TA400/800’s Web page and go to System→System
Preferences→Firmware Update, choose ―TFTP Server‖.
1) TFTP Server: fill in IP address of tftpd32 server (your PC’s IP address).
To Next Page
