TA400/800 User Manual
64/64

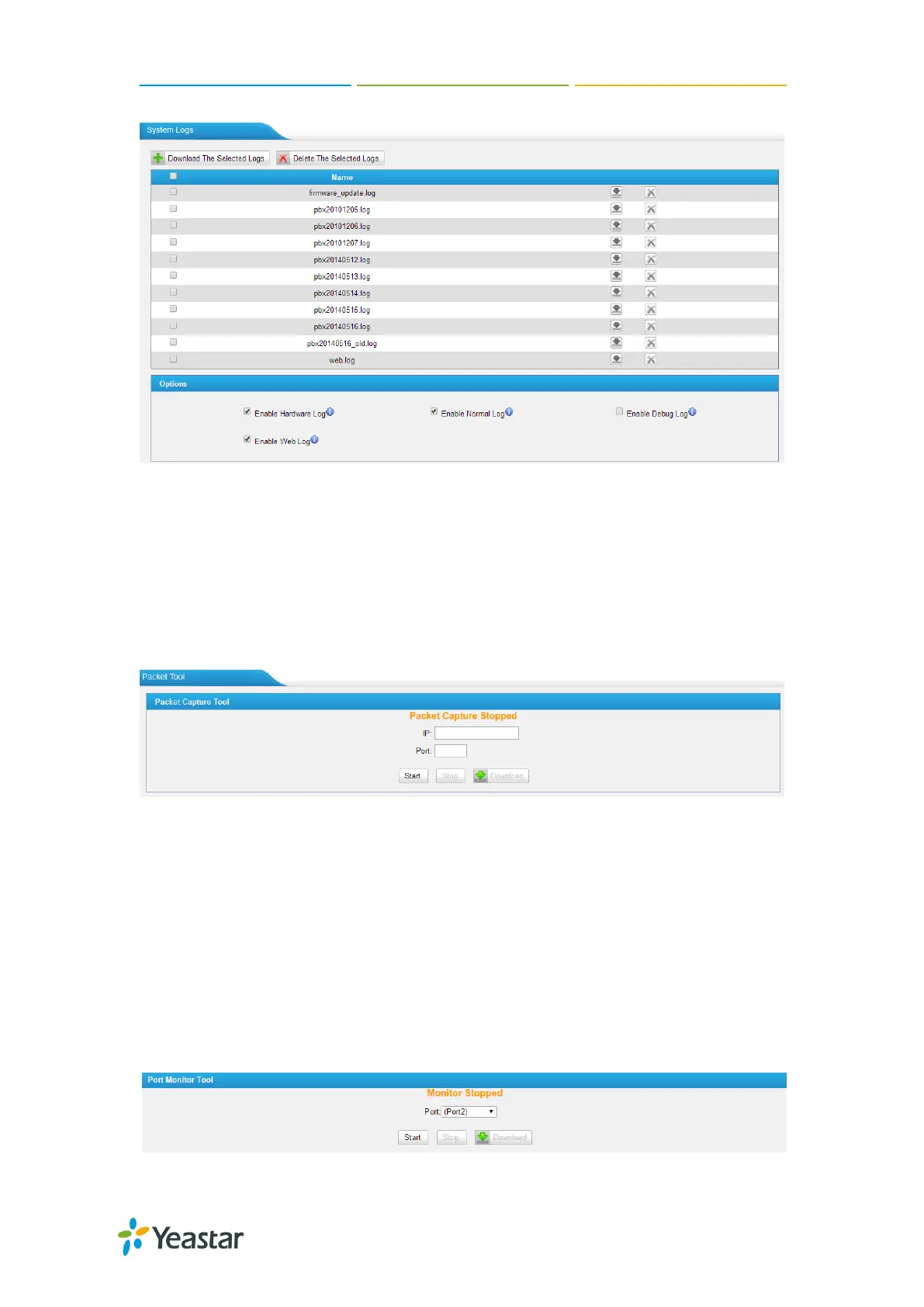

Figure 13-2 System Logs
Packet Tool
This feature is used to capture packets for technician. Integrate packet capture tool
―Wireshark‖ in TA400/800. Users also could specify the destination IP address and
port to get the packets.
Figure 13-3 Packet Tool
IP
Specify the destination IP address to get the packets.
Port
Specify the destination Port to get the packets.
Port Monitor Tool
This tool is used to debug a FXS port. Select a FXS port and click ―Start‖ to monitor
the FXS port, stop monitoring by clicking ―Stop‖ button.
Figure 13-4 Port Monitor Tool
