YOKOGAWA AXW4A Installation Manual

<4. Wiring>
33
IM 01E24A01-01EN

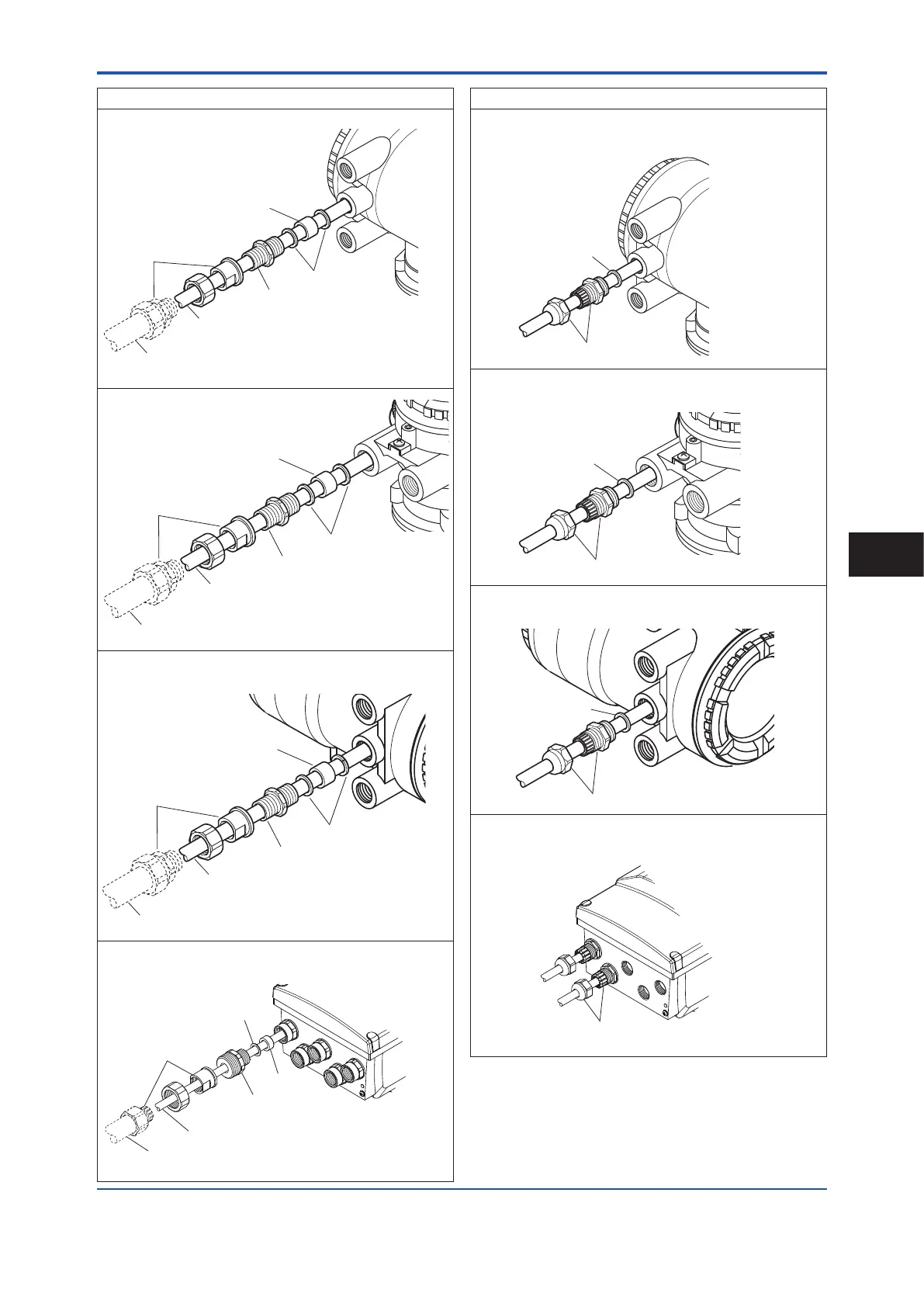

(2) Waterproof Gland with Union Joint
Integral Flowmeter
Optional code: EU2, EU3
Gasket
Washer
Tightening gland
Cable
G1/2
When working on conduit or flexible tube (G1/2 only)
F0409.ai
Remote Sensor
Optional code: EU
Gasket
Washer
Tightening gland
Cable
G1/2
When working on conduit or flexible tube (G1/2 only)
F0410.ai
Remote Transmitter (AXW4A)
Optional code: EU4, EU5
Gasket
Washer
Tightening gland
When working on conduit or flexible tube (G1/2 only)
Cable
G1/2
F0411.ai
Remote Transmitter (AXG1A/AXFA11)
Optional code: EU5 (AXG1A), EU (AXFA11)
Gasket
Washer
Tightening gland
When working on conduit or flexible tube (G1/2 only)
Cable
G1/2
F0412.ai
(3) Plastic Gland
Integral Flowmeter
Optional code: EP2, EP3
Plastic gland
Gasket
F0413.ai
Remote Sensor
Optional code: EP
F0414.ai
Plastic gland
Gasket
Remote Transmitter (AXW4A)
Optional code: EP4, EP5
F0415.ai
Plastic gland
Gasket
Remote Transmitter (AXG1A/AXFA11)
Optional code: EP5 (AXG1A), EP (AXFA11)
Plastic gland
F0416.ai
Wiring
4
