YOKOGAWA CSU-X1 User Manual

-29-

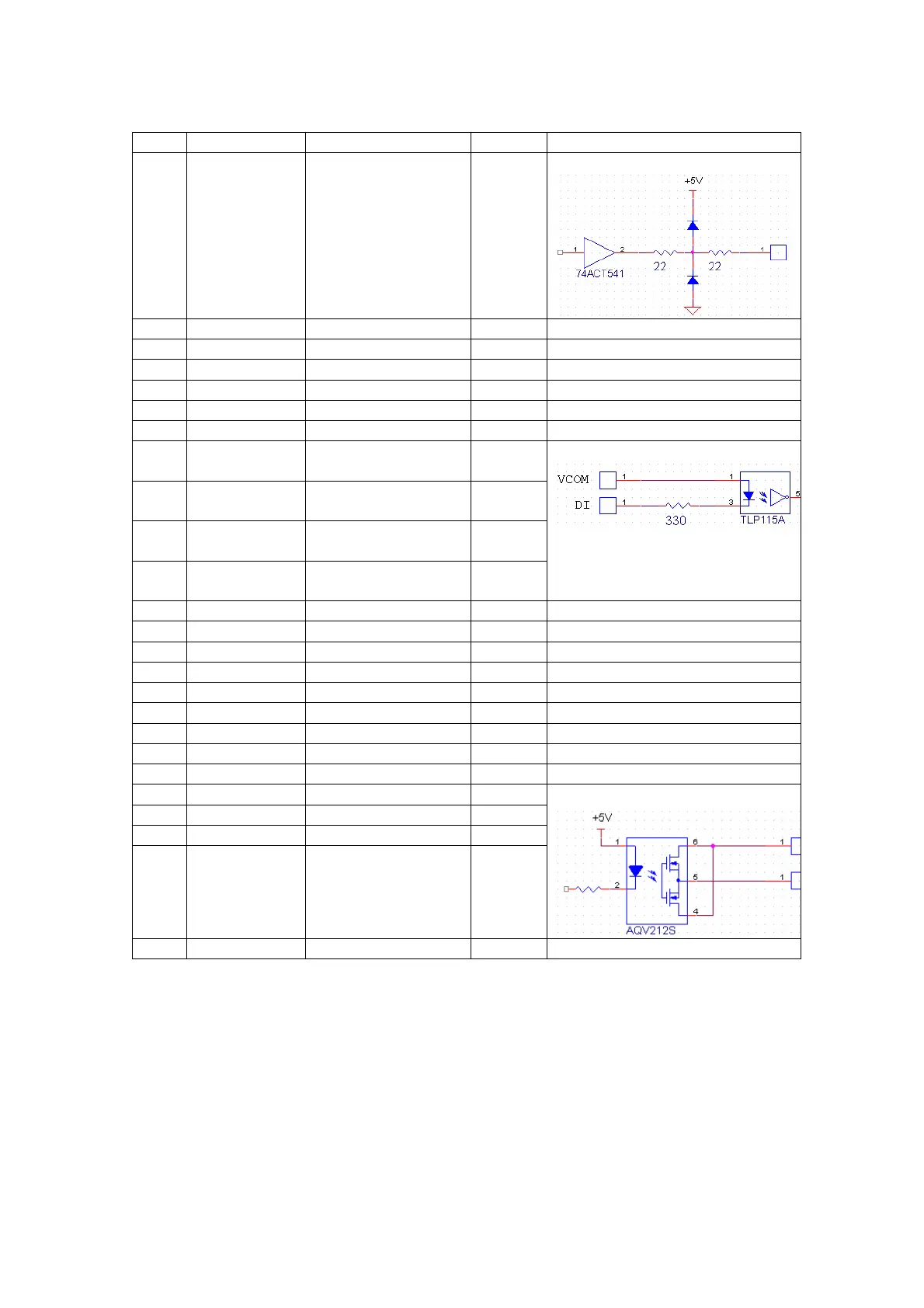

26 Reserved
27 CSU_INDEX CSU rotation sync
signal 300-2kHz
Output TTL level
28-31 Reserved
32-34 5V DC5V Output 100mA max
35 GND GND
36 GND
37 GND
38 GND
39 DI1(EI5)*4 Photo-coupler
input 1
Input
40 DI2(EI6)*4 Photo-coupler
input 2
Input
41 DI3(EI7)*4 Photo-coupler
input 3
Input
42 DI4(EI8)*4 Photo-coupler
input 4
Input
DC5V 7～20mA
43 Interlock- Interlock Input Connect with 9 pin
44 GND
45 GND
46 GND
47 GND
48 GND
49 GND
50 GND
51 GND
52 DO1- Contact output 1- Output
53 DO2- Contact output 2-
O
utput
54 DO3- Contact output 3- Output
55 DO4- Contact output 4- Output
DC30V 500mA max
56-68 GND
*1: Possible to acquire input terminal ch1-ch4 levels: EI,[ch],?
*2: Possible to assign output terminal ch1-ch4 levels: EO,[ch],[n]
*3: Possible to assign output terminal ch5-ch8 levels: EO,[ch],[n]
*4: Possible to acquire input terminal ch5-ch8 levels: EI,[ch],?
