-21-

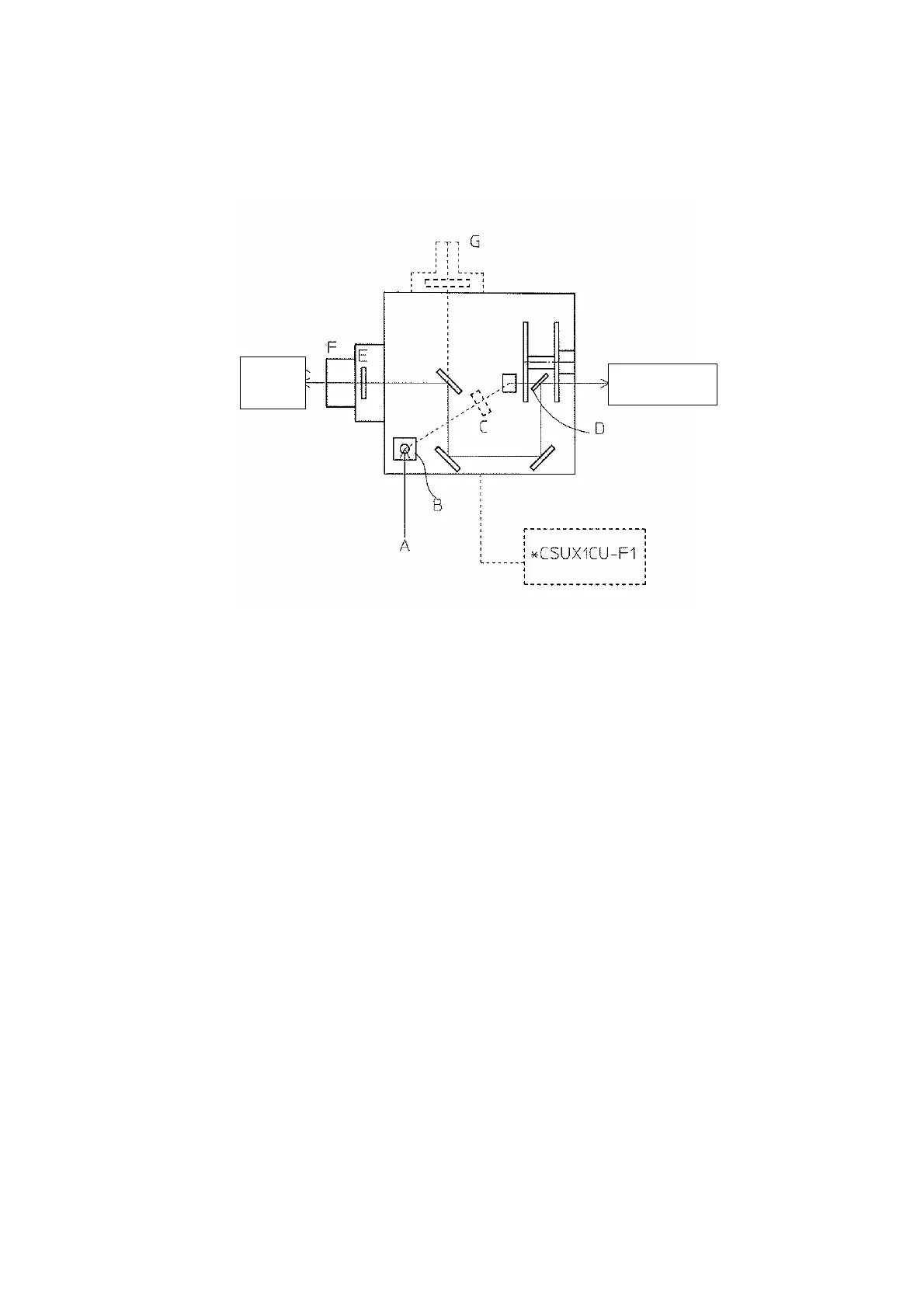

2.3.1 CSU-X1-M1
*Control unit: CSU-X1CF-F1 is ONLY connectable with CSU-X1-M1H or M1N
A: Laser inlet
B: FC connector/shutter
C: Excitation filter (See Option List)
D: Dichroic mirror （See Specification List）
E: Barrier filter （See Specification List）
F: Camera port
*8X8mm adapter for EMCCD is available. (Option)
G: Direct view eyepiece unit (Option)
CSU-X1-M1 is a Basic model.
Your choice of one dichroic mirror and one barrier filter can be installed at your
order. Options shown above are selectable.
Maximum disk rotation speed for CSU-X1-M1L is 1,800rpm. If connected with the
control unit CSU-X1CU-F1, rotation speed of CSU-X1-M1H is adjustable between
1,500 ～ 10,000rpm and that of CSU-X1-M1N is between 1,500 ～ 5,000rpm,
respectively.
Camera
Microscope
E
