YOKOGAWA CSU-X1 - Page 130

To Next Page

To Previous Page

-12-

CAUTION

Please ONLY use attached cables, otherwise, it is possible to fail EMC

conformity.

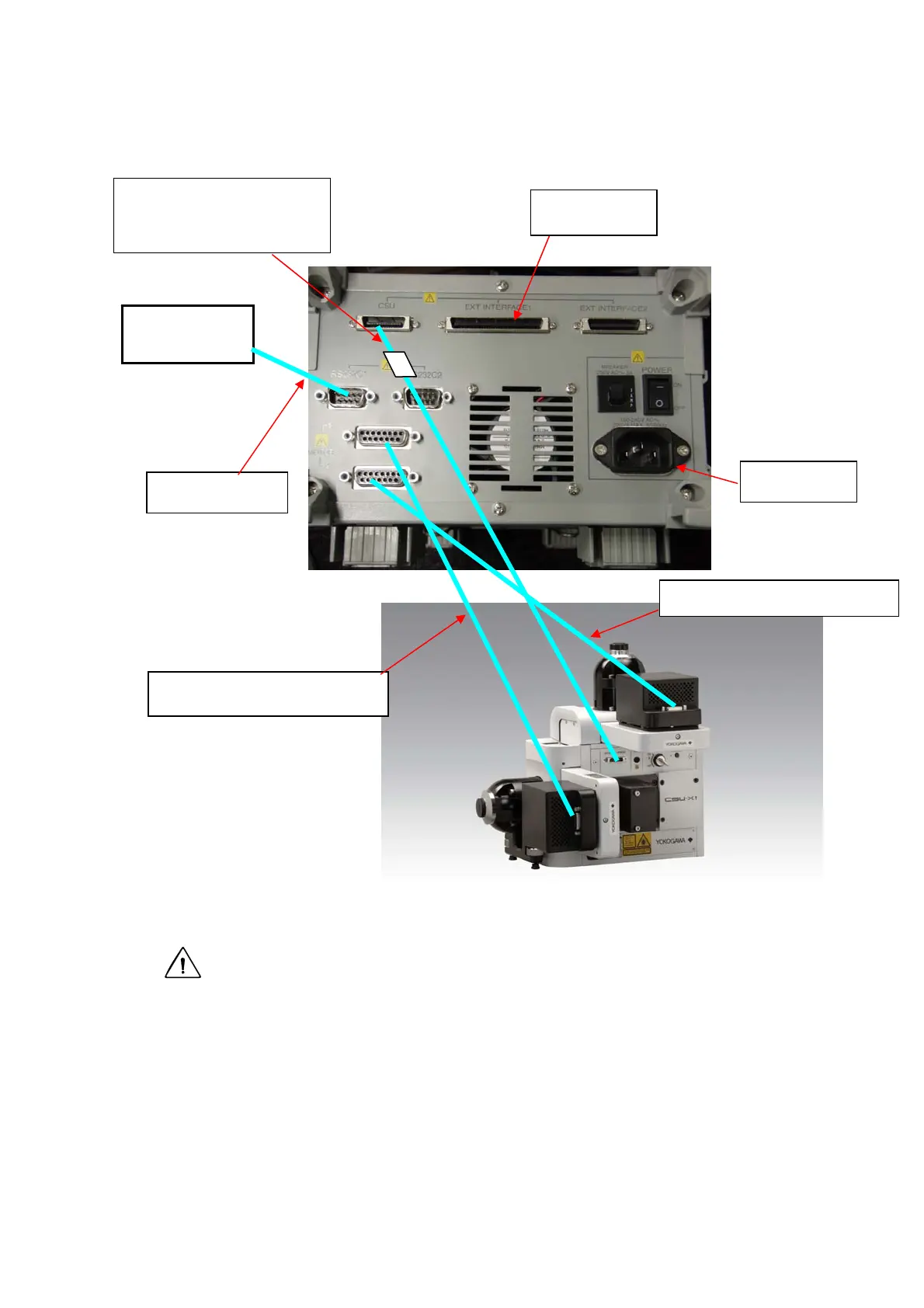

CSU control cable

(ferrite core at this side).

Interlock key

Power cable

Filter Wheel 1(FW1) cable

Filter Wheel 2(FW2) cable

RS232C cable

PC COM port
