-69-
WARNING
CAUTION
*5: Please control shutter ON/OFF below 3Hz. Faster ON/OFF control may damage
the shutter.
Please do not open the dichroic mirror block cover when you input shutter control
signal. If you do so, shutter closing timing could delay and laser beam may leak out.

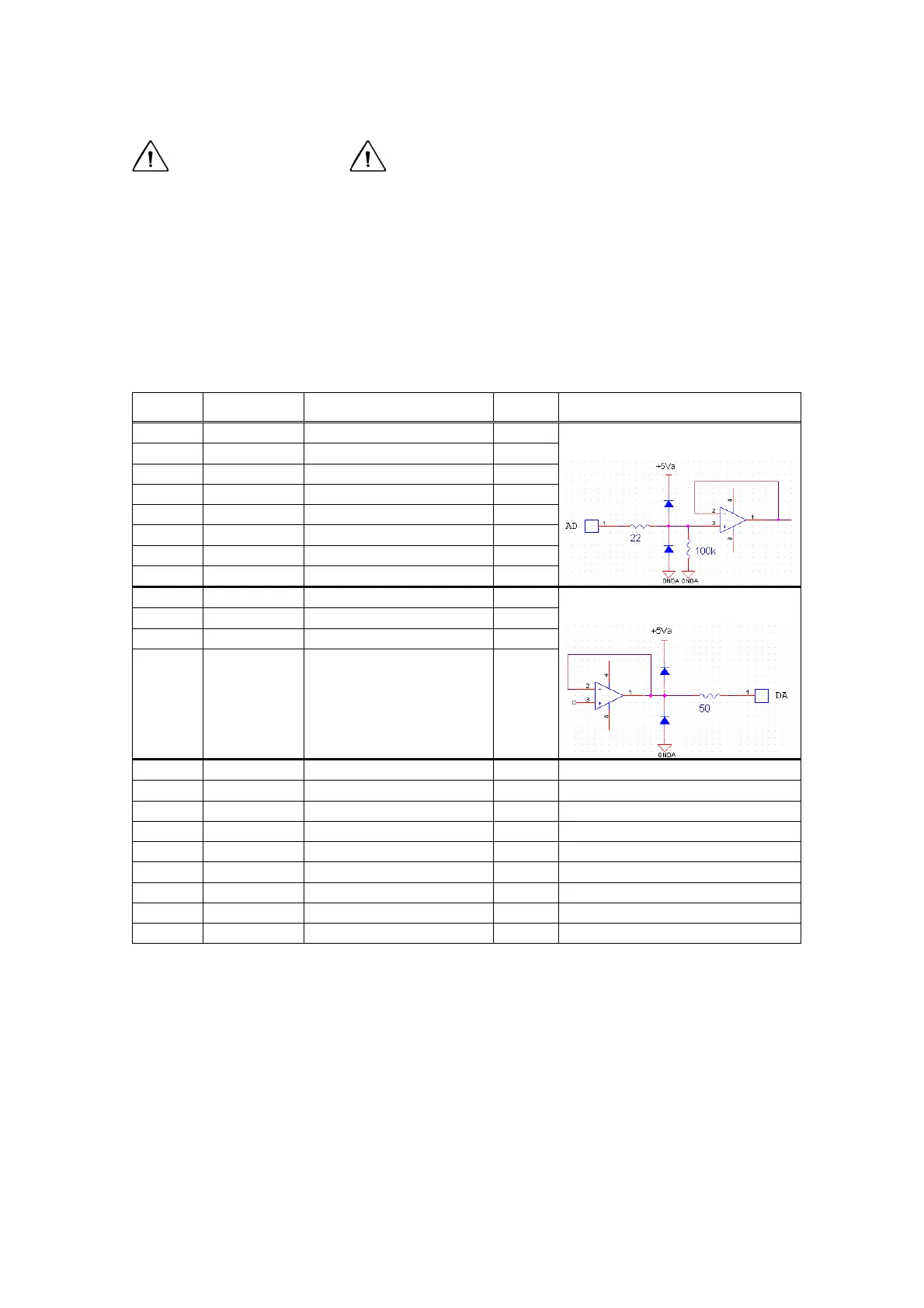

Table 7-4-3 PCR36 pin (male) connector for control unit
Pin No. Signal Name Function I/O Connection
1 AD1 *1 Analogue input 1CH Input
2 AD2 *1 Analogue input 2CH Input
3 AD3 *1 Analogue input 3CH Input
4 AD4 *1 Analogue input 4CH Input
5 AD5 *1 Analogue input 5CH Input
6 AD6 *1 Analogue input 6CH Input
7 AD7 *1 Analogue input 7CH Input
8 AD8 *1 Analogue input 8CH Input
Resolution 0-5V 10bit
Precision 8bit
9 DA1 *2 Analogue output 1CH Output
10 DA2 *2 Analogue output 2CH Output
11 DA3 *2 Analogue output 3CH Output
12 DA4 *2 Analogue output 4CH Output
Resolution 0-5V 12bit
Precision 8bit
13 NC Unconnected
14 NC Unconnected
15 NC Unconnected
16 NC Unconnected
17 NC Unconnected
18 Reserved
19-30 GNDA Analogue GND
31-35 NC Unconnected
36 GNDA Analogue GND
*1：Possible to acquire AD ch1-ch8 data: AD_DATA,[ch],?
*2：Possible to assign AD ch1-ch8 output value: DA_DATA,[ch],[n]
