-68-

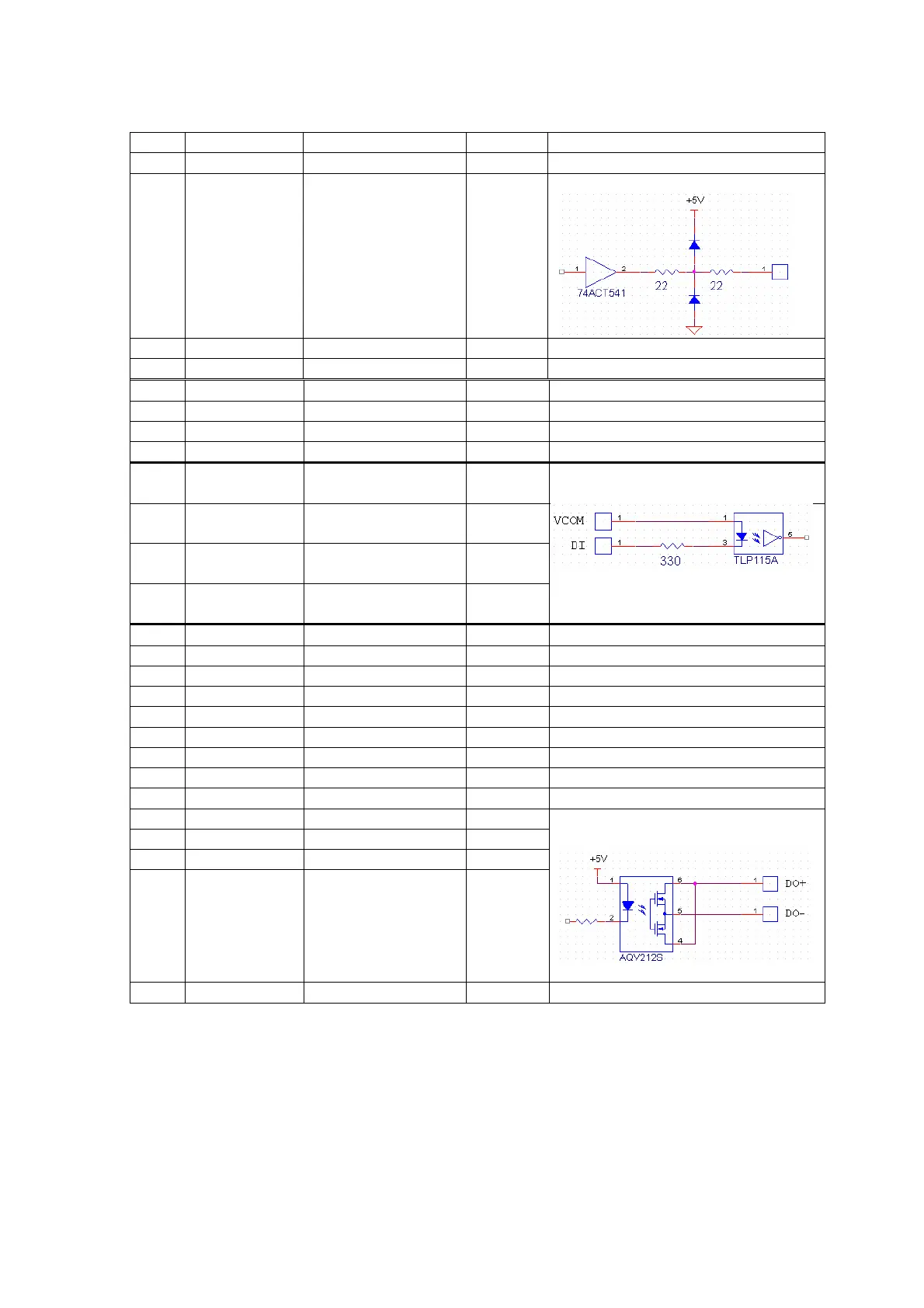

25 Reserved
26 Reserved
27 CSU_INDEX CSU rotation sync
signal 300-2kHz
Output
TTL level
28-31 Reserved
32-34 5V 5VDC Output 100mA max
35 GND GND
36 GND
37 GND
38 GND
39 DI1(EI5)*4 Photo coupler input
1
Input
DC5V 7～20mA
40 DI1(EI5)*4 Photo coupler input
2
Input
41 DI1(EI5)*4 Photo coupler input
3
Input
42 DI1(EI5)*4 Photo coupler input
4
Input
43 Interlock- Interlock- Input Connect with pin 9
44 GND
45 GND
46 GND
47 GND
48 GND
49 GND
50 GND
51 GND
52 DO1- Contact output 1- Output
53 DO2- Contact output 2- Output
54 DO3- Contact output 3- Output
55 DO4- Contact output 4- Output
DC30V 500mA max
56-68 GND
*1：Possible to acquire input terminal ch1-ch4 levels: EI,[ch],?
*2：Possible to assign output terminal ch1-ch4 levels: EO,[ch],[n]
*3：Possible to assign output terminal ch5-ch8 levels: EO,[ch],[n]
*4：Possible to acquire input terminal ch5-ch8 levels: EI,[ch],?
