YOKOGAWA CSU-X1 User Manual

-67-

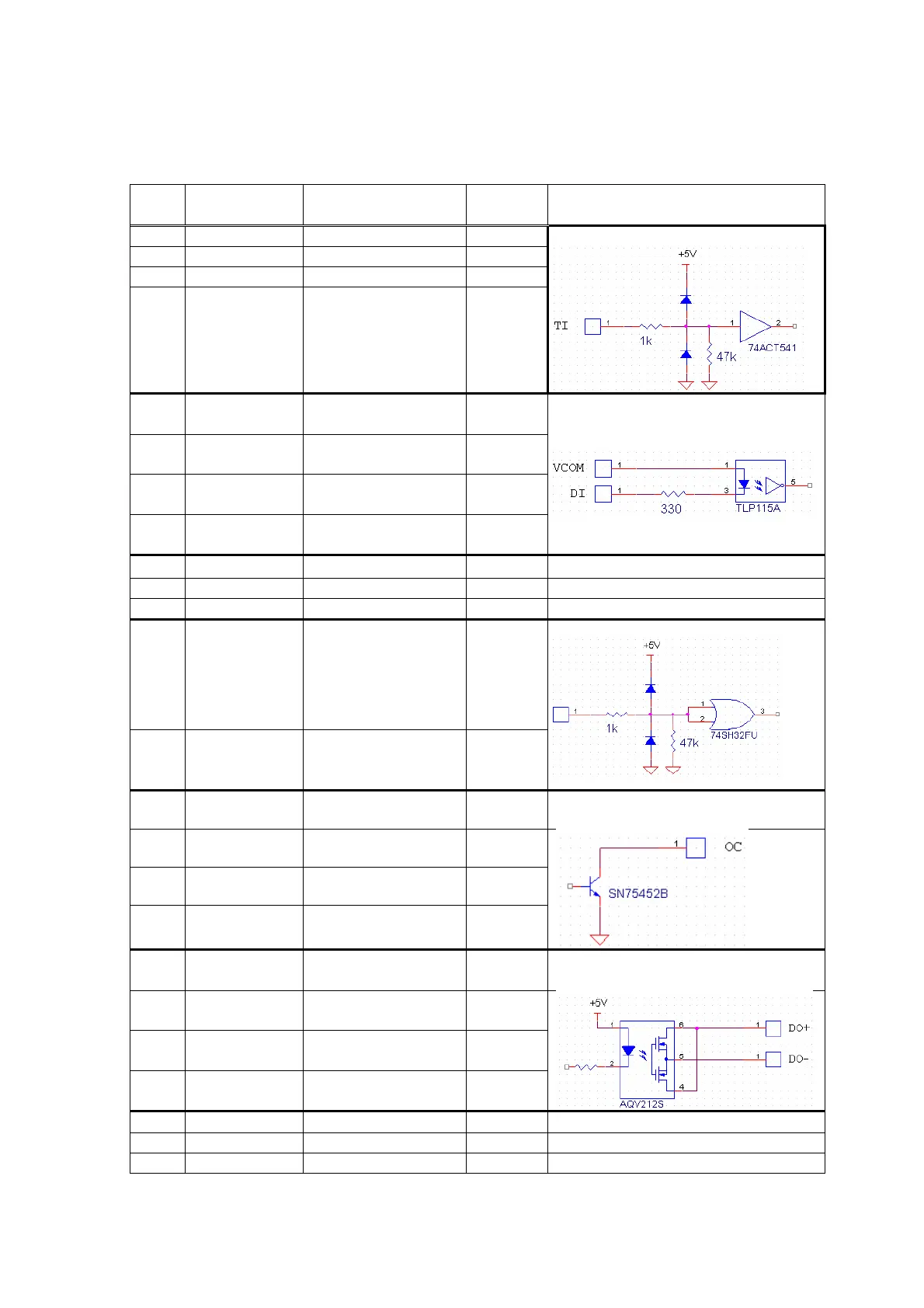

Table 7-4-2 PCR68 pin (male) connector of Control unit
Pin
No.
Signal name Function I/O Connection
1 TI1(EI1)*1 TTL input ch1 Input
TTL level
2 TI2(EI2)*1 TTL input ch 2 Input
3 TI3(EI3)*1 TTL input ch3 Input
4 TI4(EI4)*1 TTL input ch4 Input
5 VCOM1 Source for contact
input VCOM1
Input
6 VCOM2 Source for contact
input VCOM2
Input
7 VCOM3 Source for contact
input VCOM3
Input
8 VCOM4 Source for contact
input VCOM4
Input
For contact input source (DC5V)
9
Interlock＋
Open is Interlock Input Connect with 43pin
10 Reserved
11 Reserved
12 CSU_SYNC CSU sync signal
input 300Hz-2kHz
“limitation exists in
the rotation speed”
Input
13 SHUTTER*5 External shutter
control signal
H:Open, L:Close
Input
TTL/CMOS level
14 OC1(EO1)*2
Open collector
output1, H is ON
Output DC5V 100mA max
15 OC2(EO2)*2
Open collector
output 2, H is ON
Output
16 OC3
Open collector
output 3, H is ON
Output
17 OC4
Open collector
output 4, H is ON
Output
18 DO1+(EO5)*
3
Contact output 1+,
H is ON
Output DC30V 500mA max
19 DO2+(EO6)*
3
Contact output 2+
H is ON
Output
20 DO3+(EO7)*
3
Contact output 3+
H is ON
Output
21 DO4+(EO8)*
3
Contact output 4+
H is ON
Output
22 Reserved
23 Reserved
24 Reserved
