2.5 Saving the Detailed Analysis Results

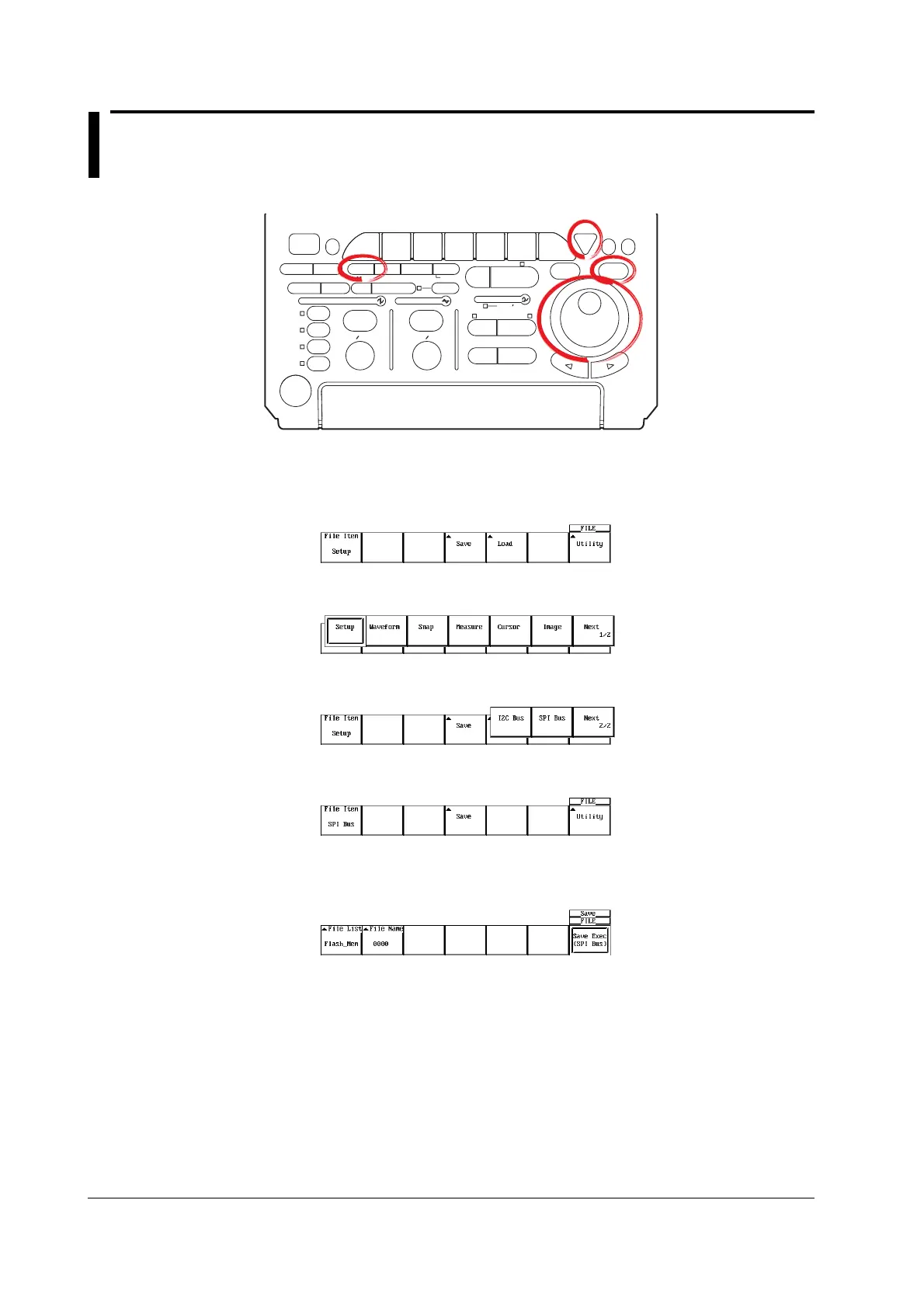

Relevant Keys
ACTION DELAY
X - Y
MENU MENU
PHASE
SEARCH
HORIZONTAL
VERTICAL
TRIGGER
TRIG D
HELP
ESC
SELECTRESET
SIMPLE
MODE POSITION
MATH
MISCFILE
CLEAR
TRACE
HISTORY
MEASURE
SETUP
PRESET
DISPLAY
CURSOR
CH
1
CH
2
CH
3
CH
4
POWER
COPY
IMAGE SAVE
SHIFT
ZOOM
GO/NO-GO
ENHANCED
ACQ START/ STO P
SNAP
SHOT
V DIV TIME DIV
Procedure
1. Press FILE.
2. Press the File Item soft key. The File Item selection menu appears.
3. Press the Next 1/2 soft key to display the Next 2/2 menu.
4. Press the SPI Bus soft key.
5. Press the Save soft key.
Selecting Save Destination Medium
6. Press the File List soft key. The File List box appears.
To Next Page
